Motor Replacement

NOTE: Put on gloves to protect your hands.

Remove the headliner (see HEADLINER REMOVAL/INSTALLATION ).
Disconnect the connector (A), and remove the screws, then remove the motor (B).

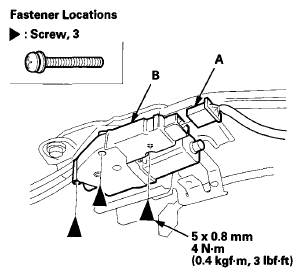

Fig 1: Connector And Motor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the motor in the reverse order of removal, and note these items:
- Make sure the connector is plugged in properly.
- Reset the moonroof control unit (see RESETTING THE MOONROOF CONTROL UNIT ).
- Check the motor operation.
