VSA cannot be turned OFF
NOTE:
If the low tire pressure indicator turns ON, the VSA cannot be turned OFF. Check the tire pressure first.
- Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
- Check the VSA OFF switch (see VSA OFF SWITCH TEST/REPLACEMENT
).
Is the VSA OFF switch OK?
YES - Go to step 3.
NO - Replace the VSA OFF switch (see VSA OFF SWITCH TEST/REPLACEMENT ).
- Disconnect the VSA OFF switch 5P connector (see VSA OFF SWITCH TEST/REPLACEMENT ).
- Disconnect the gauge control module 32P connector (see GAUGE CONTROL MODULE REPLACEMENT ).

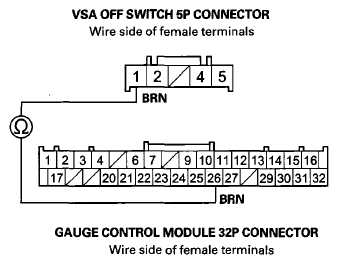

- Check for continuity between gauge control module 32P connector terminals No. 26 and VSA OFF switch 5P connector terminal No. 1.Fig 1: Checking Continuity Between Gauge Control Module 32P Connector Terminals No. 26 And VSA OFF Switch 5P Connector Terminal No. 1
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES - Go to step 6.
NO - Repair an open in the wire between the gauge control module and the VSA OFF switch.
- Check for continuity between VSA OFF switch 5P connector terminal No. 1 and body ground.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES - Repair a short to body ground in the wire between the gauge control module and the VSA OFF switch.
NO - Go to step 7.
- Check for continuity between VSA OFF switch 5P connector terminal No. 2 and body ground.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES - Replace the gauge control module (see GAUGE CONTROL MODULE REPLACEMENT ).
NO - Repair an open in the wire between the VSA OFF switch and body ground (G401).
