VSA Off Switch Test/Replacement

Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
Remove the driver's switch panel (see DRIVER'S SWITCH PANEL REMOVAL/INSTALLATION ).
Remove the VSA OFF switch (A) from the driver's switch panel (B).

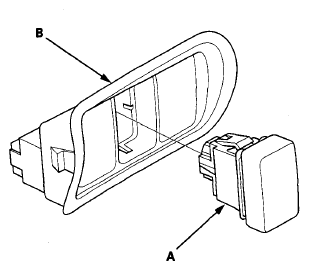

Fig 1: Identifying VSA OFF Switch And Driver's Switch Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
On the switch side, check for continuity between the VSA OFF switch 5P connector terminal in each switch position according to the table.

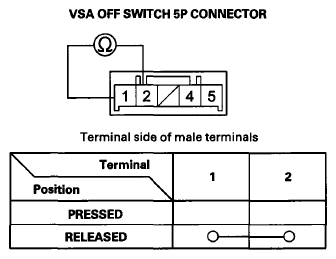

Fig 2: Checking Continuity Between VSA OFF Switch 5P Connector Terminal In Each Switch Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- If the switch does not work as described in the table, replace the switch.
- If the switch tests OK, go to step 5.
On the switch side, check for continuity between VSA OFF switch 5P connector terminals No. 4 and No. 5. There should be continuity at all times.

Fig 3: Checking Continuity Between VSA OFF Switch 5P Connector Terminals No. 4 And No. 5
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the VSA OFF switch.
Install the VSA OFF switch in the reverse order of removal.
