Exploded View

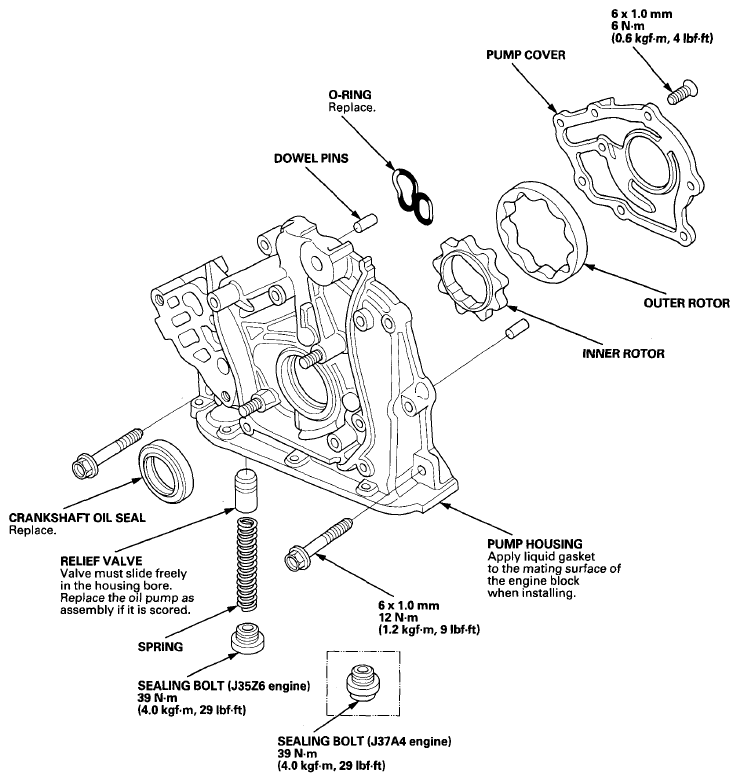

Fig 1: Exploded View Of Oil Pump With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Oil Seal Driver, 64 mm 07OAD-RCAA100
• Engine Support Hanger, A and Reds AAR-T1256*

  *: Available through the Acura Tool and Equipment Program, 888-424-6857.
