Audio-HVAC Display Unit Removal/Installation

Audio-HVAC Display Unit Removal/Installation

Without Navigation

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the dashboard and related parts.
- Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage.

1. Remove the dashboard center vent Dashboard Center Vent Removal/Installation.

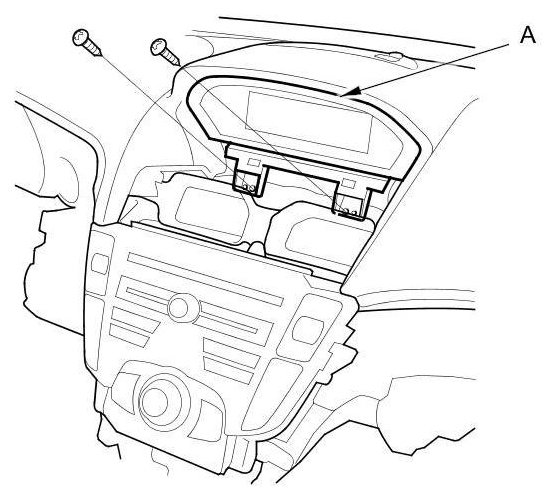

2. Carefully remove the screws from the audio-HVAC display unit (A).

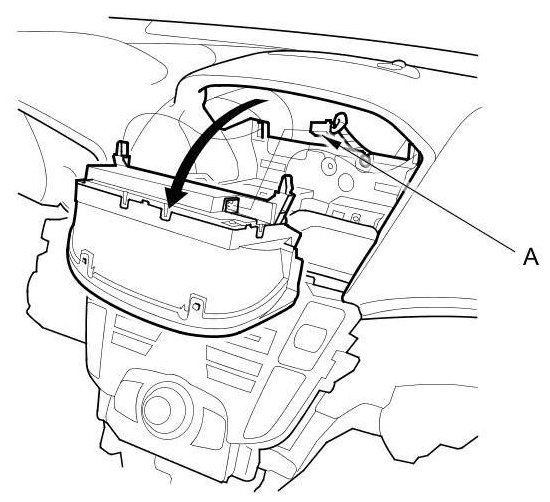

3. Pull out the audio-HVAC display unit. Then disconnect the connector (A) from the audio-HVAC display unit.





4. Install the audio-HVAC display unit in the reverse order of removal.
