Climate Control Switch Removal/Installation

Climate Control Switch Removal/Installation

1. Remove the audio-navigation unit (with navigation) Audio-Navigation Unit Removal/Installation, or the audio unit (without navigation) Audio Unit Removal / Installation.

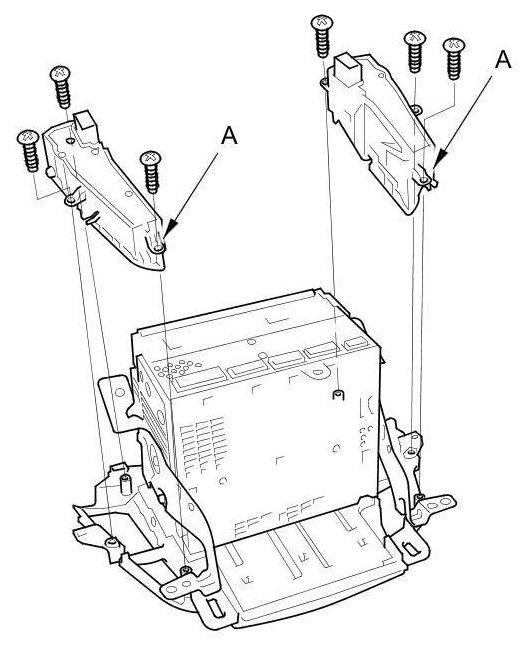

2. Remove the self-tapping screws and the climate control switches (A).





3. Install the control switches in the reverse order of removal. After installation, operate the various functions to make sure they work properly.
