Fuse to Components Index




Fuse to Components Index

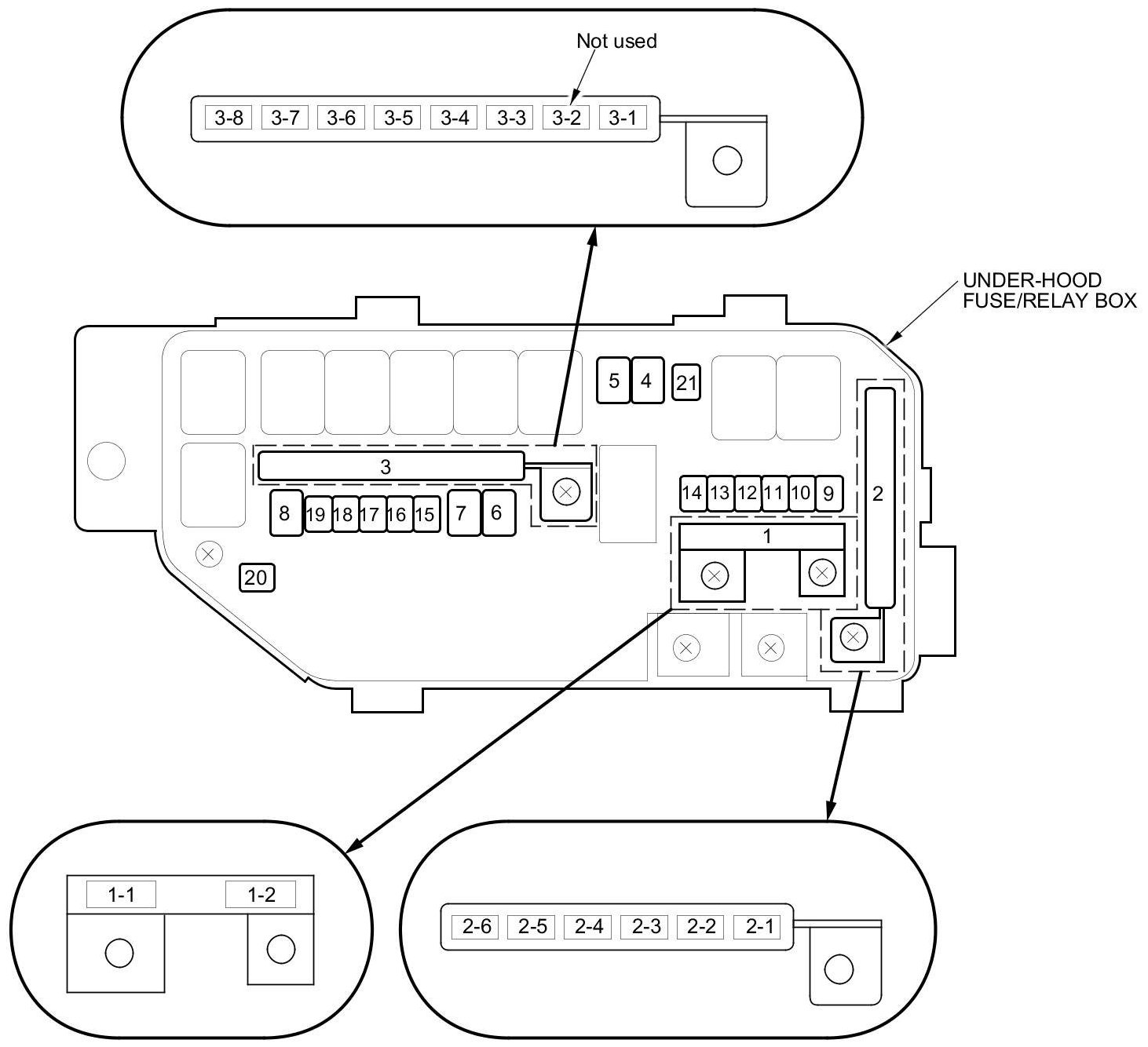

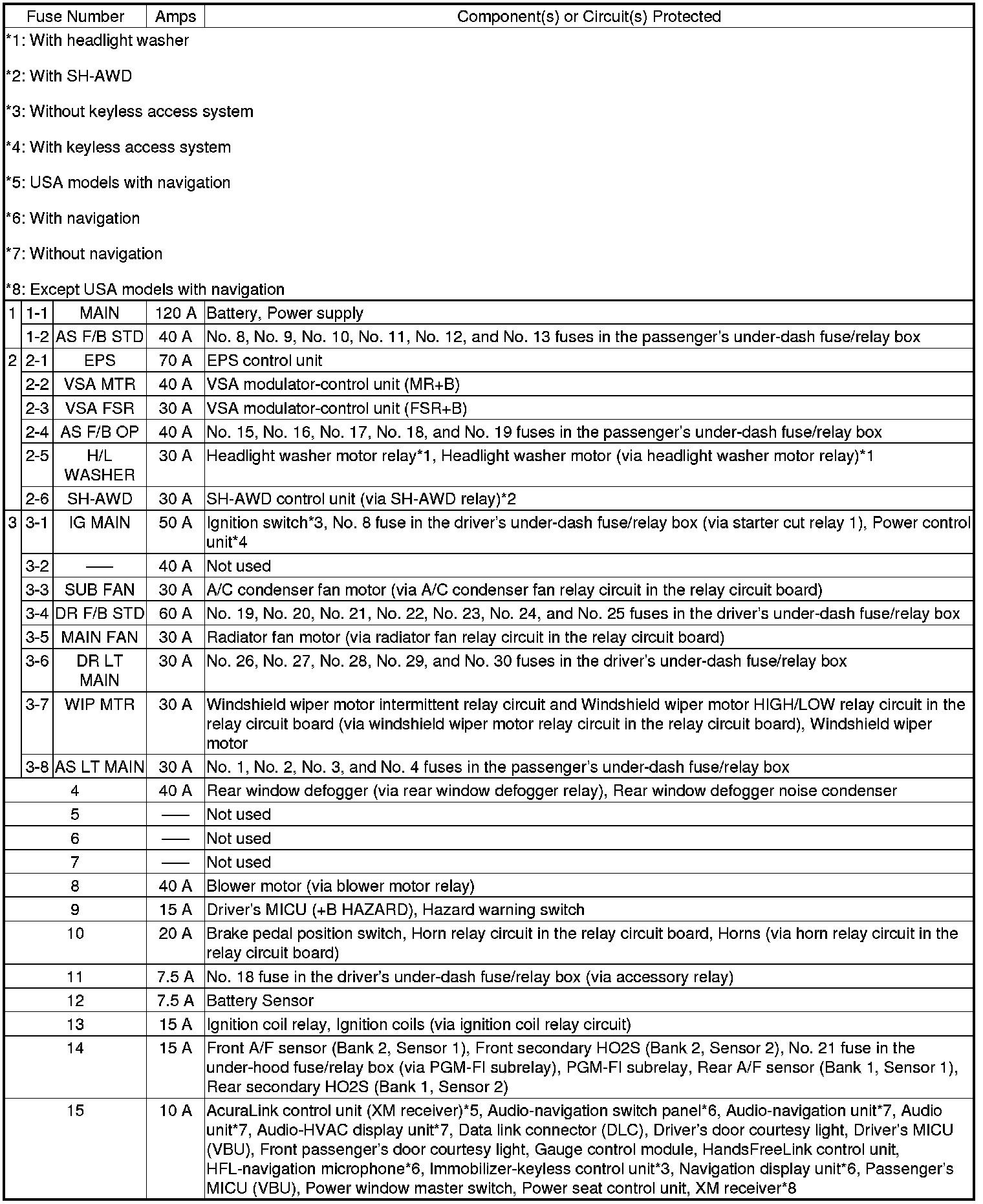

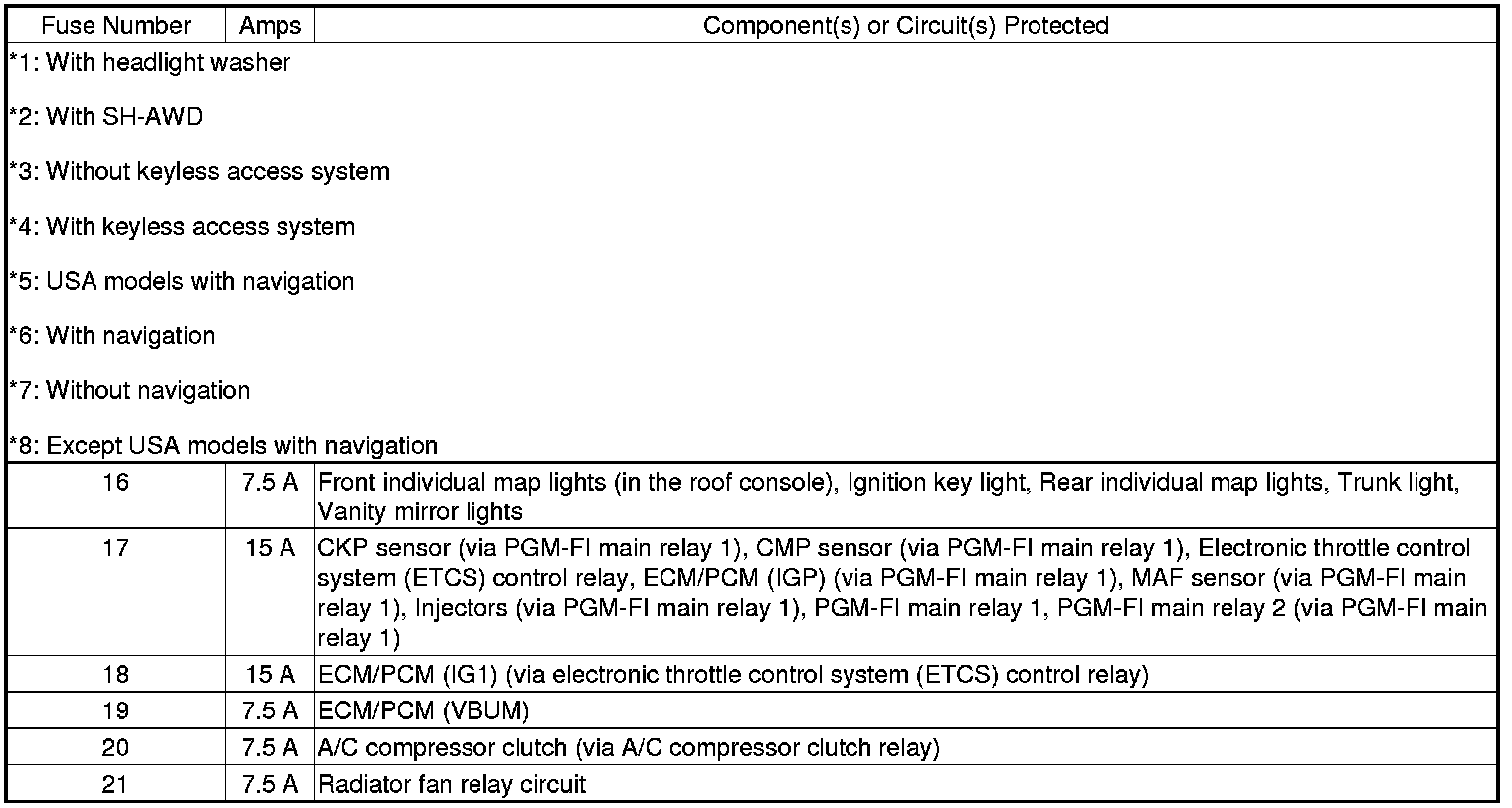

Under-Hood Fuse/Relay Box

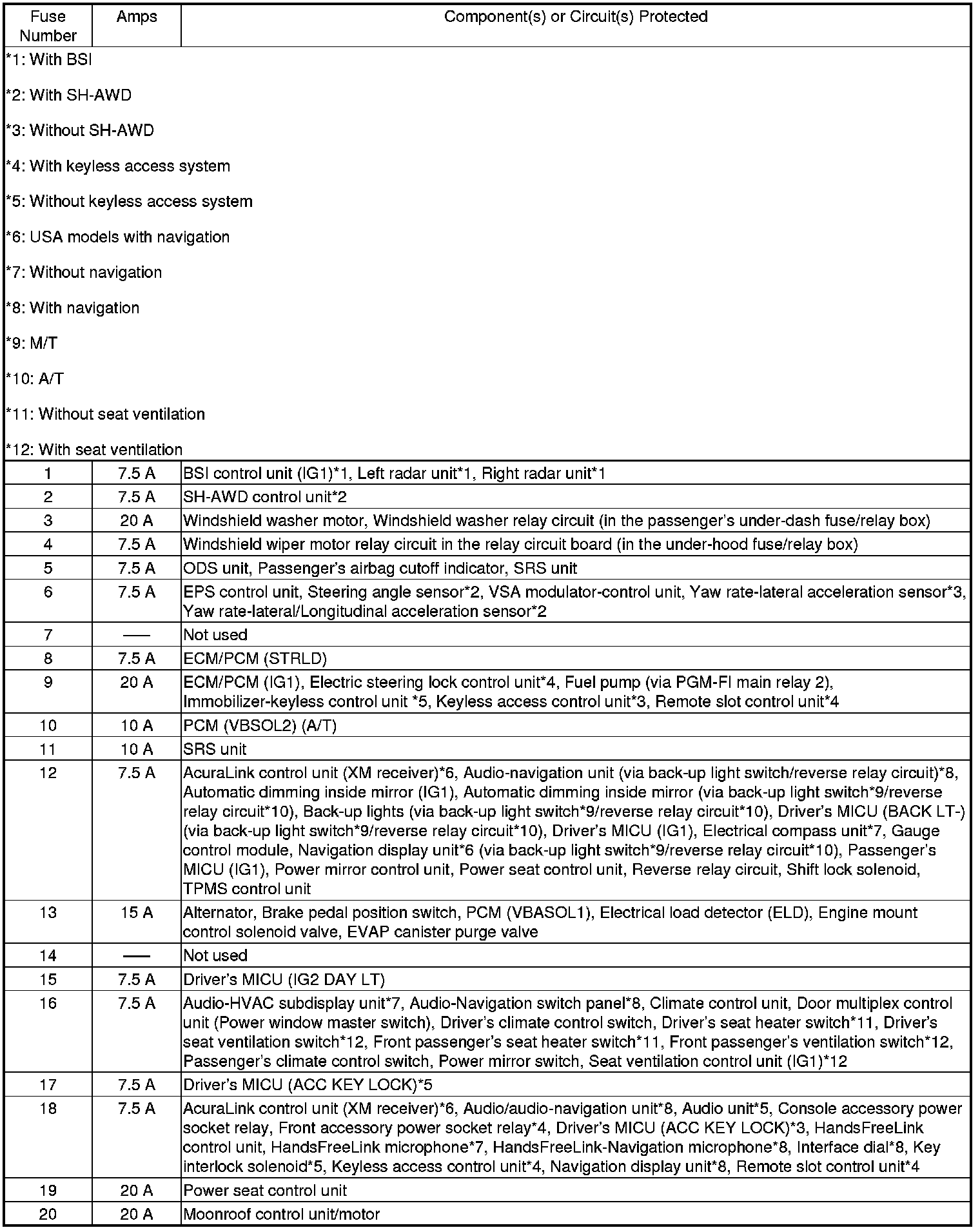

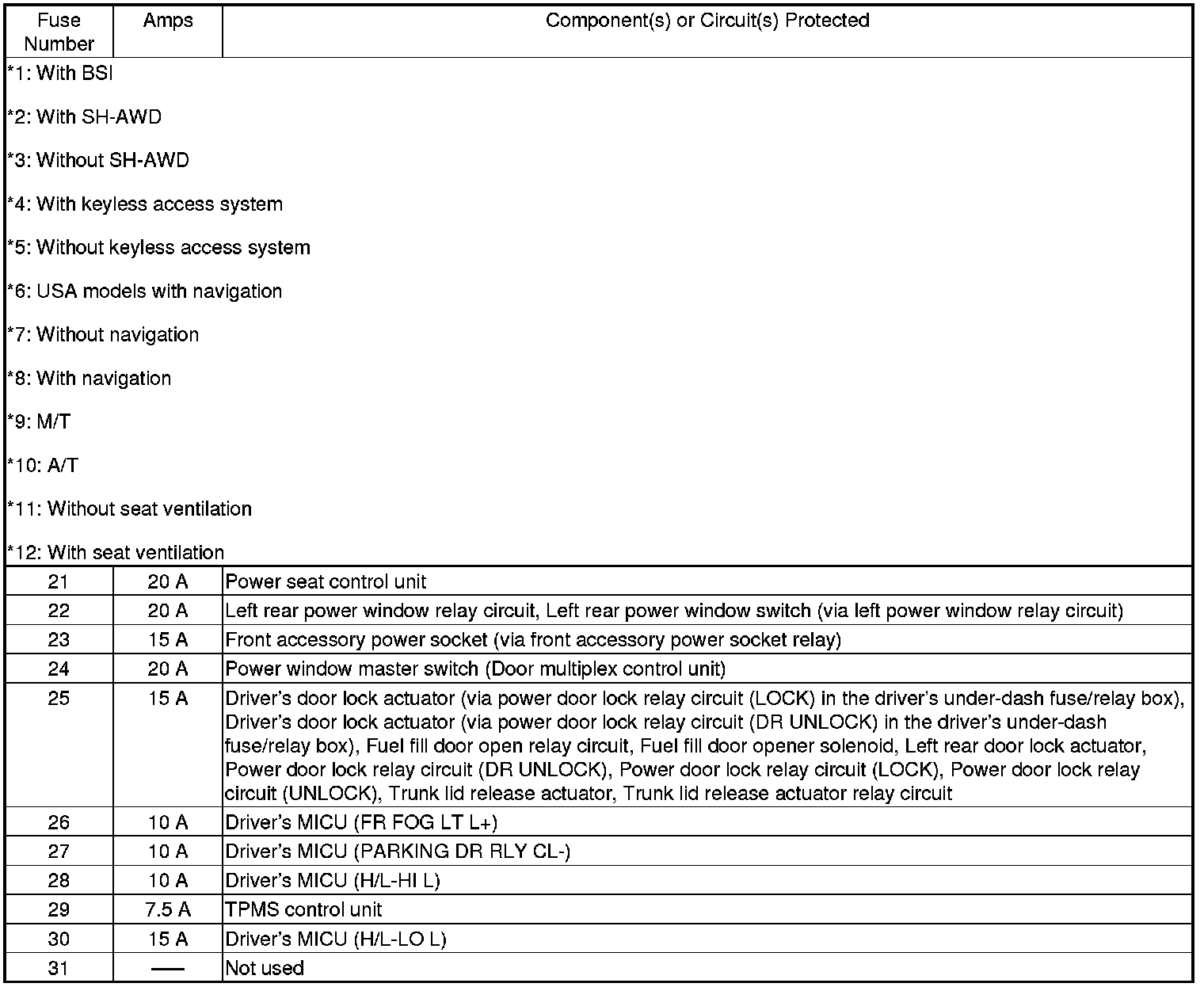

Driver's Under-Dash Fuse/Relay Box

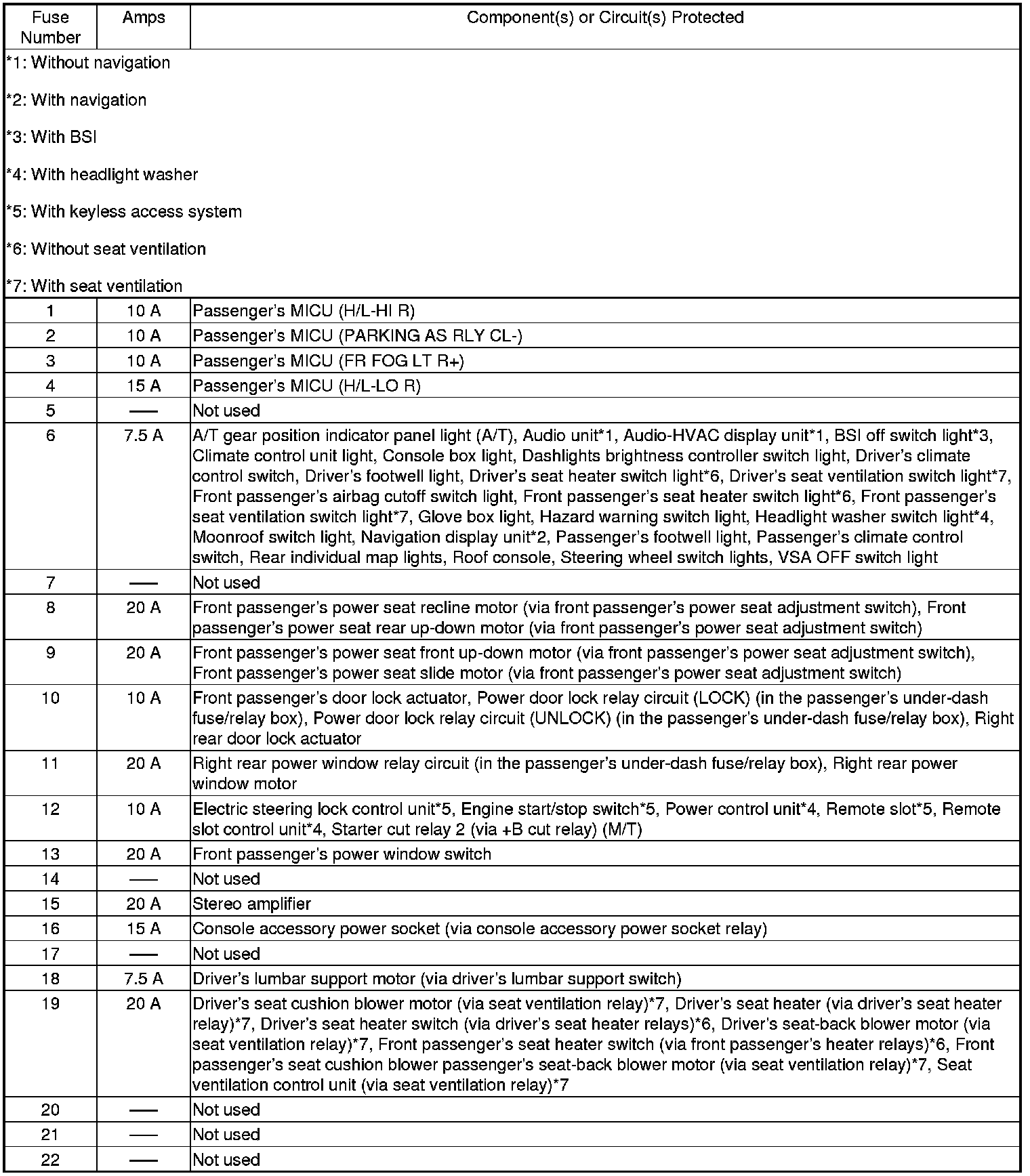

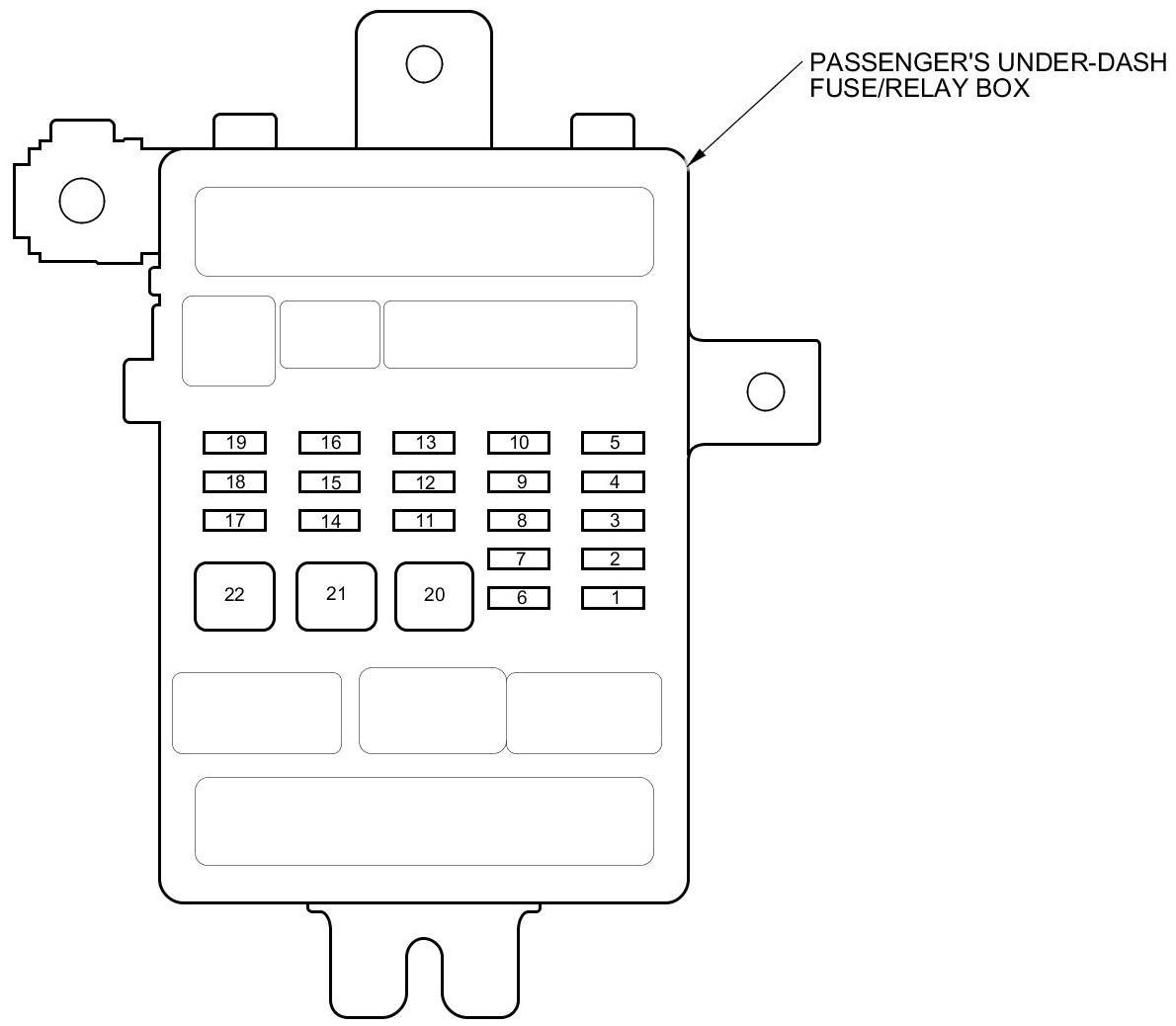

Passenger's Under-Dash Fuse/Relay Box

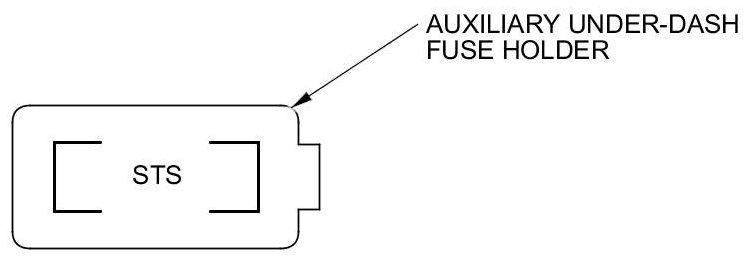

Auxiliary Under-Dash Fuse Holder (Without Keyless Access System)
