Remote Starting Control Unit In-line Fuse And IG2 Relay Connector View (Acura Accessory)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

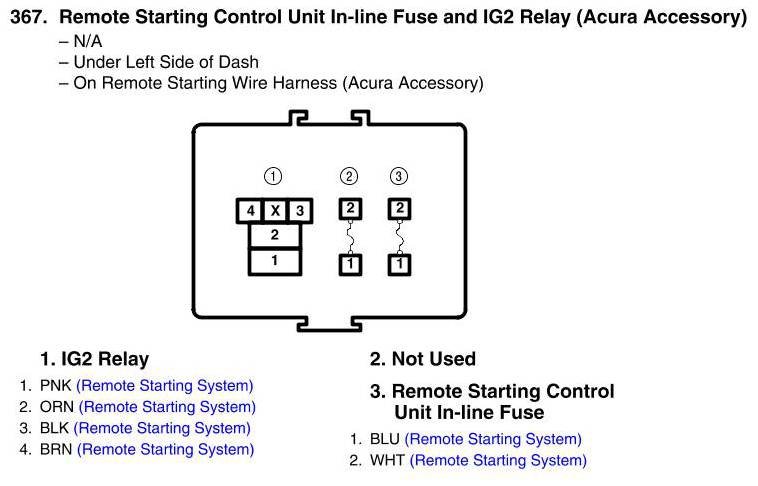

Remote Starting Control Unit In-line Fuse And IG2 Relay Connector View (Acura Accessory)
