Audio-Navigation Unit Connector B (24P)

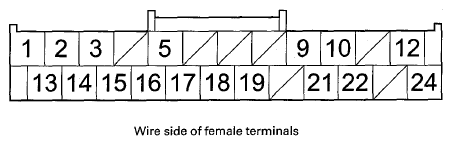

Fig 1: Identifying Audio-Navigation Unit Connector B (24P) Terminals
G08077150Courtesy of AMERICAN HONDA MOTOR CO., INC.
AUDIO-NAVIGATION UNIT CONNECTOR B (24P)

Cavity Wire Color Terminal Name Connects to
B1 RED AUX LCH Auxiliary jack assembly
B2 BLK AUX SIG GND Auxiliary jack assembly
B3 PUR AUX DET Auxiliary jack assembly
B5 BRN TELEM SIG + HandsFreeLink control unit
B9 BLK CTR PRE- Stereo amplifier
B10 YEL CTR PRE + Stereo amplifier
B12 GRN SUBW PRE + Stereo amplifier
B13 WHT AUX RCH Auxiliary jack assembly
B14 YEL AUX GND Auxiliary jack assembly
B15 GRY(1) AUX SH GND Shield for terminals No. 1, No. 2, and No. 13
B16 YEL TELEM SIG- HandsFreeLink control unit
B17 GRY(1) TELEM SIG SH Shield for terminals No. 5 and No. 16
B18 BLU GA-NET BUS2 - Navigation display unit
B19 PNK GA-NET BUS2 + Navigation display unit
B21 LT BLU CPM SWD + B Audio-navigation and HVAC switch panel
B22 GRY(1) GA-NET BUS2 SH Shield for terminals No. 18 and No. 19
B24 LT GRN SUBW PRE- Stereo amplifier
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the circuit diagram.
