Audio-Navigation Unit Connector D (20P)

NOTE: Refer to the navigation system section for the terminals inputs and outputs not shown (see AUDIO-NAVIGATION UNIT CONNECTOR D (20P) ).

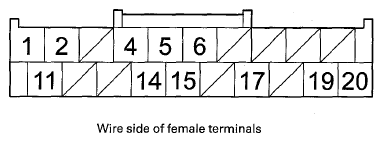

Fig 1: Identifying Audio-Navigation Unit Connector D (20P) Terminals
G08077152Courtesy of AMERICAN HONDA MOTOR CO., INC.
AUDIO-NAVIGATION UNIT CONNECTOR D (20P)

Cavity Wire Color Terminal Name Connects to
D1 RED RS 485- Stereo amplifier
D2 GRN RS 485+ Stereo amplifier
D6 PNK B-CAN H B-CAN bus line
D11 BRN(1) RS 485 SH Shield for terminals No. 1 and No. 2
D15 BLU B-CAN L B-CAN bus line
D17 GRN RG L GND Stereo amplifier
D19 RED RG L+ Stereo amplifier
D20 GRY(1) RG L SH Shield for terminals No. 17 and No. 19
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the circuit diagram.
