Audio-Navigation Unit Connector H (28P)

NOTE: Refer to the navigation system section for the terminals inputs and outputs not shown (see AUDIO-NAVIGATION UNIT CONNECTOR H (28P) ),

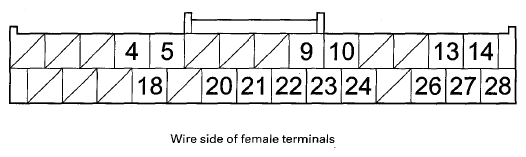

Fig 1: Identifying Audio-Navigation Unit Connector H (28P) Terminals
G08077155Courtesy of AMERICAN HONDA MOTOR CO., INC.
AUDIO-NAVIGATION UNIT CONNECTOR H (28P)

Cavity Wire Color Terminal Name Connects to
H21 WHT ANC CHK2 ANC/active sound control unit
