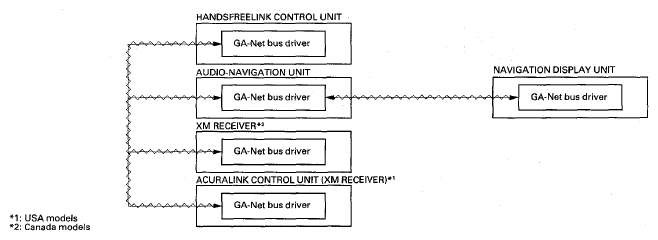

GA-Net Bus Configuration
The GA-Net bus passes audio, navigation, and HFL commands throughout the audio, navigation, and HFL components. These commands include navigation audio/XM selections by voice, and XM station and music title names. Because the entire bus is interconnected between components, an open or short in the GA-Net bus harness may cause any or all of these functions to become inoperative.
