ANC/Active Sound Control Unit 16P Connector

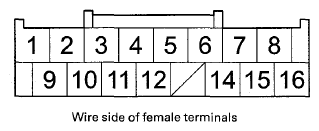

Fig 1: Identifying ANC/Active Sound Control Unit 16P Connector Terminals
G08077185Courtesy of AMERICAN HONDA MOTOR CO., INC.
ANC/ACTIVE SOUND CONTROL UNIT 16P CONNECTOR

Cavity Wire Color Terminal Name Connects to
1 BLU ANC RR + Stereo amplifier
2 PUR ANC FR + Stereo amplifier
3 BLU ANC F MIC +8V Front HFL-navigation-ANC/active sound control microphone(2), Front ANC/active sound control microphone*3
4 WHT ANC R MIC +8V Rear ANC/active sound control microphone
5 BRN(1) SH ANCM R GND Shield for terminal No. 4
6 LT GRN SWD+B Stereo amplifier, Audio-navigation unit(2), Audio unit(3)
7 BLK GND Body ground to G501
8 WHT + B No. 15 (10 A) fuse in the under-hood fuse/relay box
9 YEL ANC RR- Stereo amplifier
10 ORN ANC FR- Stereo amplifier
11 BLK(1) SH ANCM F GND Shield for terminal No. 3
12 WHT ANC CHK2 Audio-navigation unit(2), Audio unit(3)
14 GRY(1) SH ANC GND Shield for terminals No. 1, No. 2, No. 9, and No. 10
15 BLU NEP PCM, ECPS control unit
16 PNK INTR LT- Driver's MICU
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the circuit diagram.
(2) With navigation
(3) Without navigation
