USB Adapter Control Unit Connector A (14P)

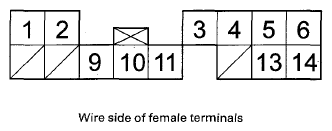

Fig 1: Identifying USB Adapter Control Unit Connector A (14P) Terminals
G08077182Courtesy of AMERICAN HONDA MOTOR CO., INC.
USB ADAPTER CONTROL UNIT CONNECTOR A (14P)

Cavity Wire Color Terminal Name Connects to
A1 WHT +B Audio unit, XM receiver
A2 LT BLU SYS ACC Audio unit, XM receiver
A3 GRY(1) GA-NET BUS SH Shield for terminals No. 9 and No. 10
A4 GRY(1) AUDIO SH Shield for terminals No. 5, No. 6, No. 13, and No. 14
A5 GRN AUDIO R + Audio unit, XM receiver, HandsFreeLink control unit
A6 BLK AUDIO L+ Audio unit, XM receiver, HandsFreeLink control unit
A9 PNK GA-NET BUS + Audio unit, XM receiver, HandsFreeLink control unit
A10 BLU GA-NET BUS- Audio unit, XM receiver, HandsFreeLink control unit
A11 BLK GND Audio unit, XM receiver
A13 WHT AUDIO R- Audio unit, XM receiver, HandsFreeLink control unit
A14 RED AUDIO L- Audio unit, XM receiver, HandsFreeLink control unit
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the circuit diagram.
