Audio Unit Connector for Inputs and Outputs (with navigation): Notes

NOTE:

Refer to the navigation system service information for audio-navigation unit connector G and J inputs and outputs (see NAVIGATION UNIT CONNECTOR FOR INPUTS AND OUTPUTS ).
The connector with the asterisk (*) mark is a lever-lock type (see LEVER-LOCKED CONNECTOR ).

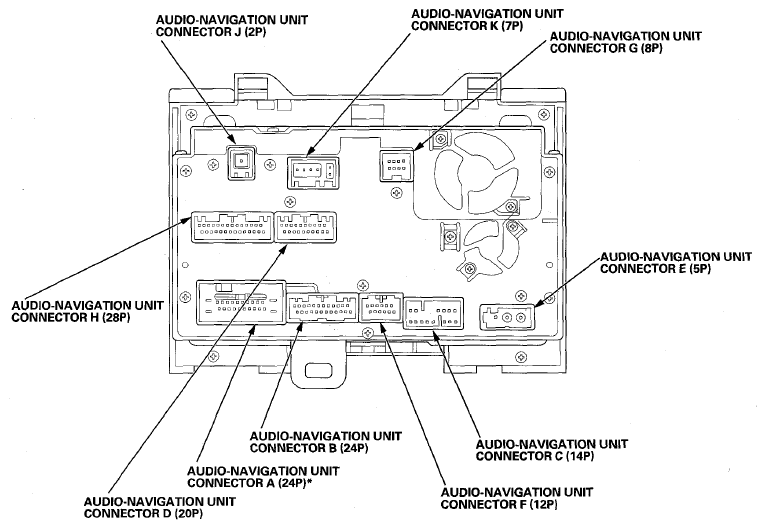

Fig 1: Identifying Audio Unit Connector For Inputs And Outputs (With Navigation)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
