Audio Unit Connector B (24P)

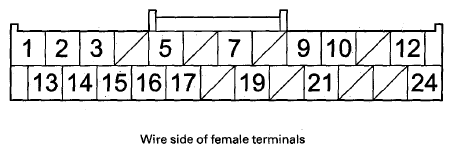

Fig 1: Identifying Audio Unit Connector B (24P) Terminals
G08077159Courtesy of AMERICAN HONDA MOTOR CO., INC.
AUDIO UNIT CONNECTOR B (24P)

Cavity Wire Color Terminal Name Connects to
B1 RED AUX LCH Auxiliary jack assembly
B2 BLK AUX SIG GND Auxiliary jack assembly
B3 PUR AUX DET Auxiliary jack assembly
B5 BRN TELEM SIG + HandsFreeLink control unit
B7 WHT ANC CHK2 ANC/active sound control unit
B9 BLK CTR PRE- Stereo amplifier
B10 YEL CTR PRE + Stereo amplifier
B12 GRN SUBW PRE+ Stereo amplifier
B13 WHT AUX RCH Auxiliary jack assembly
B14 YEL AUX GND Auxiliary jack assembly
B15 GRY(1) AUX SH GND Shield for terminals No. 1, No. 2, and No. 13
B16 YEL TELEM SIG- HandsFreeLink control unit
B17 GRY(1) TELEM SIG SH Shield for terminals No. 5 and No. 16
B19 LT BLU AMP MUTE Stereo amplifier
B21 LT BLU CPM SWD +B Audio and HVAC switch panel
B24 LT GRN SUBW PRE- Stereo amplifier
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the circuit diagram.
