Audio Unit Connector D (20P)

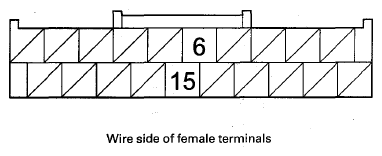

Fig 1: Identifying Audio Unit Connector D (20P) Terminals
G08077161Courtesy of AMERICAN HONDA MOTOR CO., INC.
AUDIO UNIT CONNECTOR D (20P)

Cavity Wire Color Terminal Name Connects to
D6 PNK B-CAN H B-CAN bus line
D15 BLU B-CAN L B-CAN bus line
