Electronic Throttle Control System (K24Z7/K24V7)

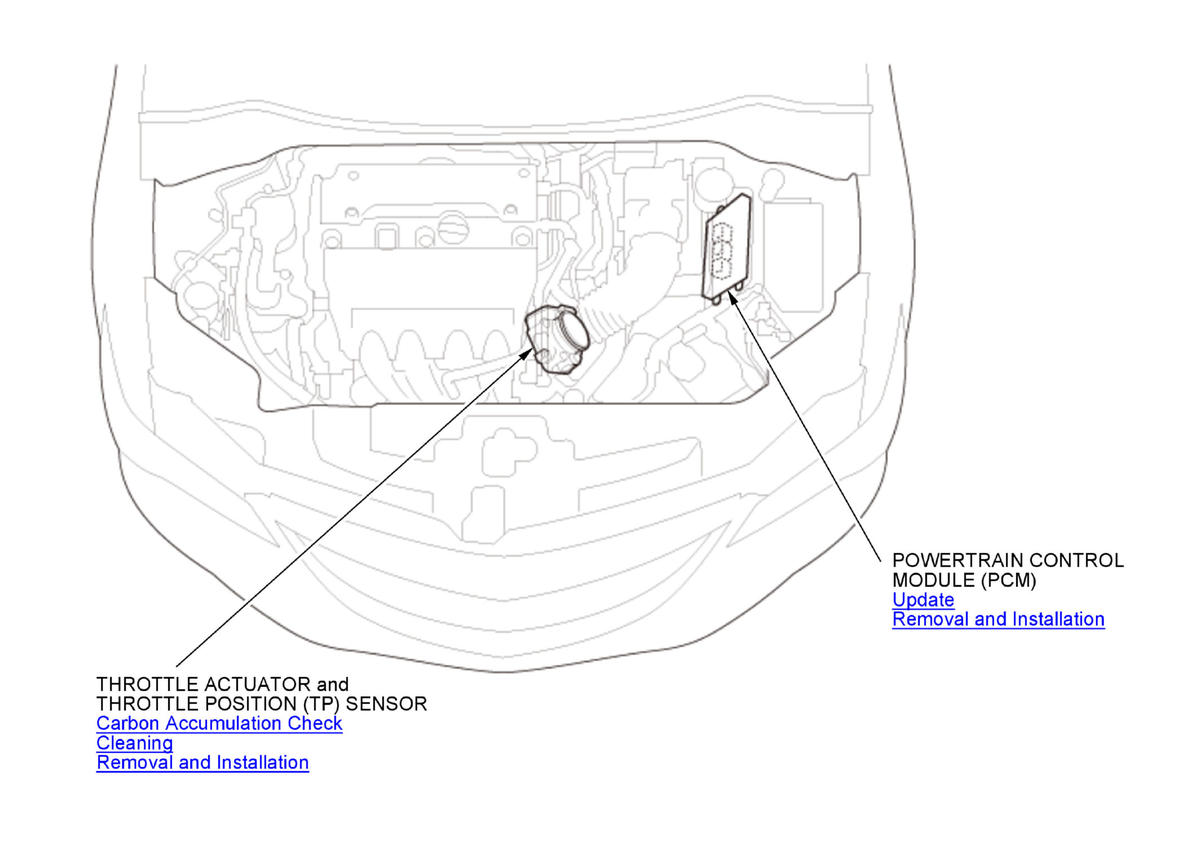

GHH468888Courtesy of HONDA, U.S.A., INC.

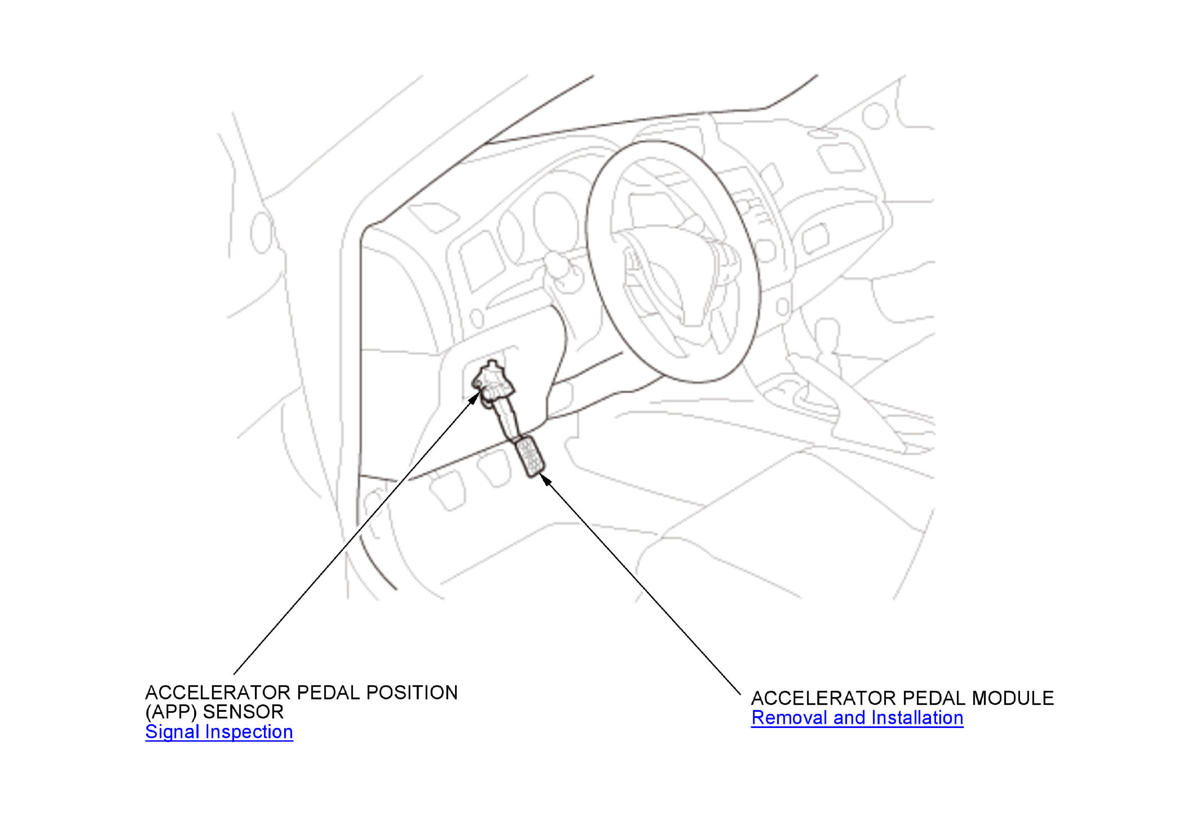

GHH468889Courtesy of HONDA, U.S.A., INC.

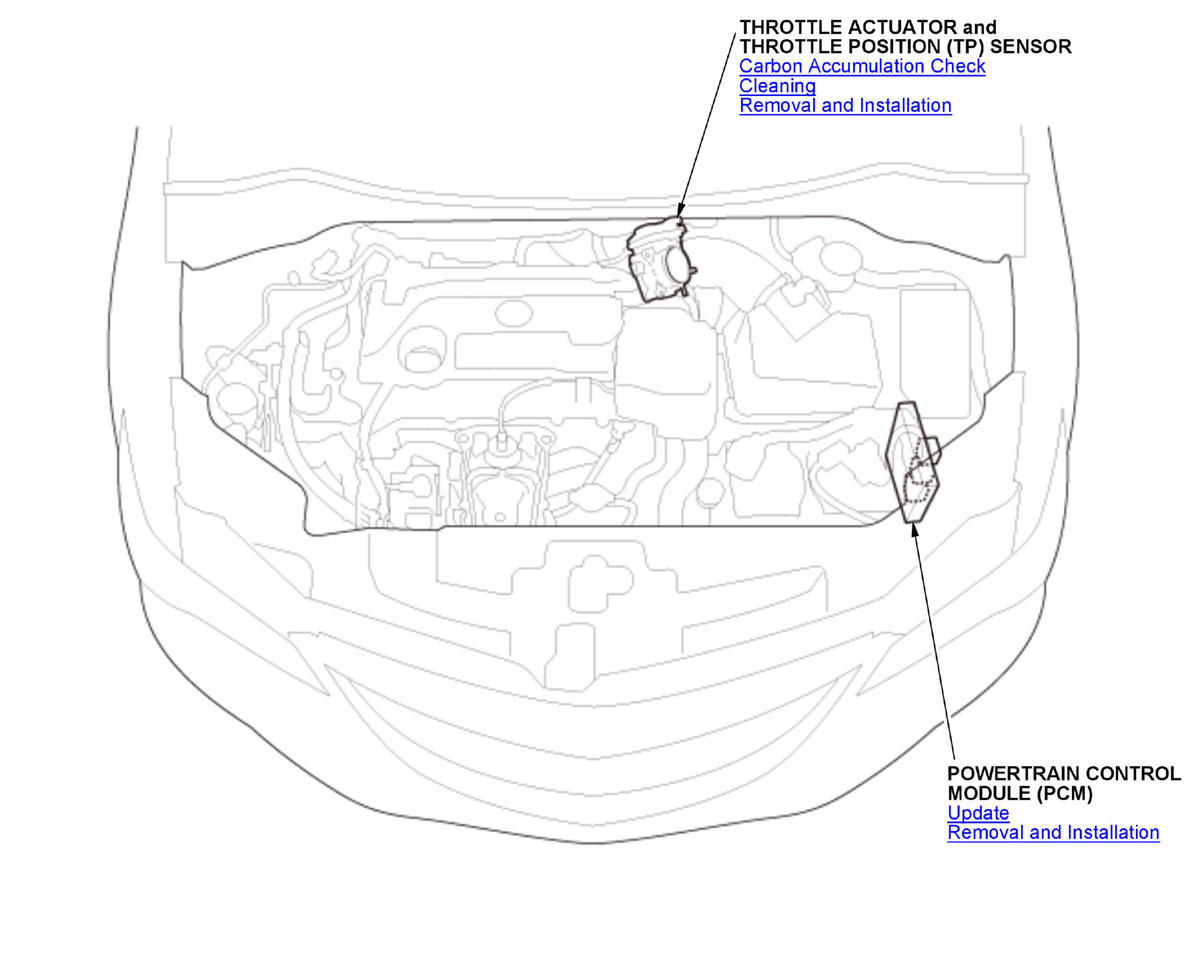

GHH468890Courtesy of HONDA, U.S.A., INC.

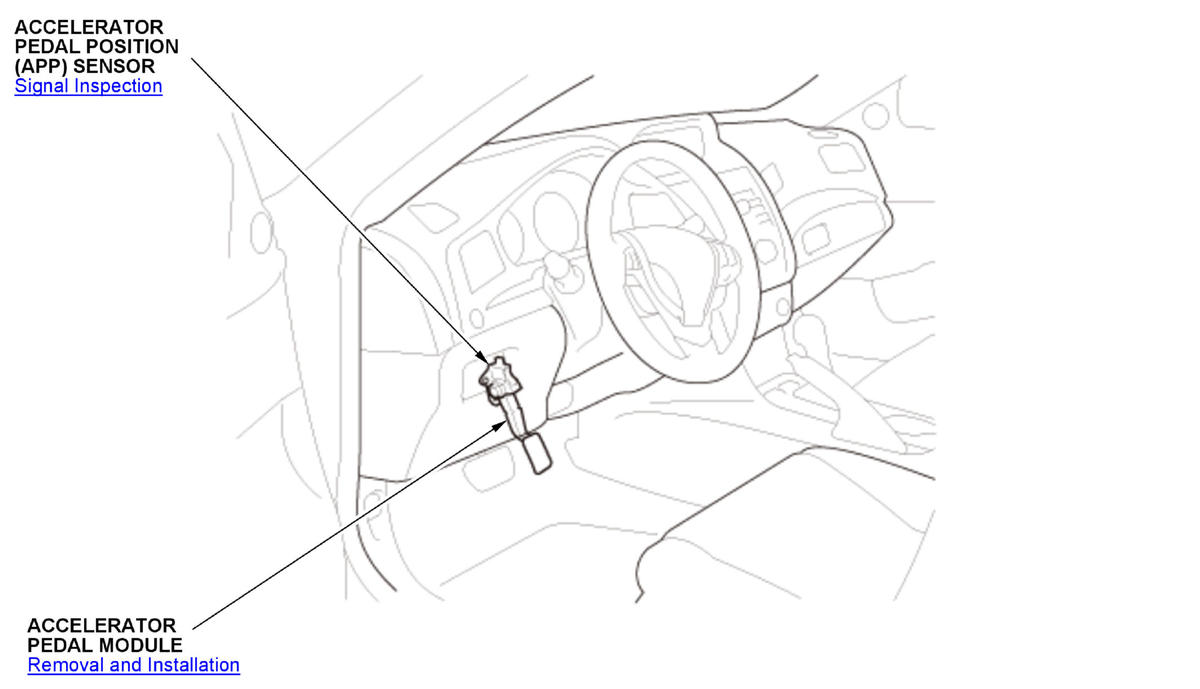

GHH468891Courtesy of HONDA, U.S.A., INC.
