ELD Removal and Installation (2013-18): Installation

  1. ELD - Install

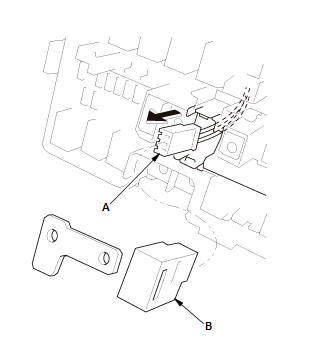

    GHH73109Courtesy of HONDA, U.S.A., INC.
    		 1. Connect the ELD connector (A)

    2. Install the ELD (B).
  2. Under-Hood Fuse/Relay Box Lower Cover - Install

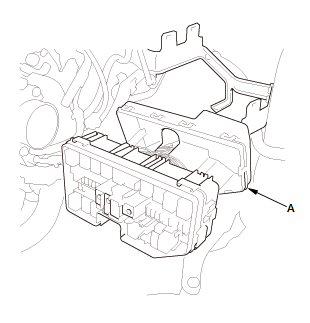

    GHH73110Courtesy of HONDA, U.S.A., INC.
    		 1. Install the lower cover (A) to the case

    2. Install the under-hood fuse/relay box to the bracket.
  3. Positive Terminal and Fuse - Install

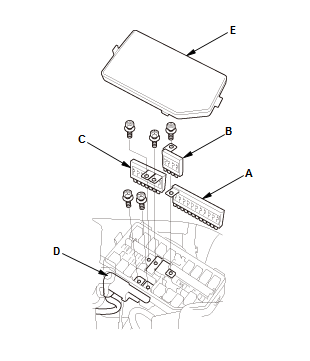

    GHH73111Courtesy of HONDA, U.S.A., INC.
    		 1. Install the fuses (A, B, and C)

    2. Install the positive (+) terminal (D)

    3. Install the upper cover (E).
  4. Air Cleaner - Install
      1. Install the air cleaner .
  5. Battery Terminal - Connect
      1. Do the battery terminal reconnection procedure .
