Audio-Navigation Unit Connector D (36P)
NOTE:
Refer to the audio system information for the terminals inputs and outputs not shown (see

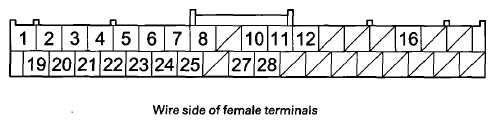

AUDIO-NAVIGATION UNIT CONNECTOR D (36P)
).
AUDIO-NAVIGATION UNIT CONNECTOR D (36P)
| Cavity | Wire Color | Terminal Name | Description | Voltage (about) | Symptom |
|---|---|---|---|---|---|
| D10 | ORN | NAVI SI (Air conditioner serial in) | Communication signal for climate control unit | - - | If open/short: HVAC will not respond to navigation commands. |
| D11 | PUR | NAVI SO (Air conditioner serial out) | Communication signal for climate control unit | - - | If open/short: HVAC will not respond to navigation commands. |
| D16 | PNK | NAVI ILL+ (Illumination positive) | Parking light on signal | Lights on: battery voltage, Lights off: 0 V | If open: When brightness=Auto, night mode for the display is inoperative when lights on. If short to ground: No effect on system. |
| D27 | BRN | NAVI CLK (Air conditioner clock) | Check signal for climate control unit | - - | If open/short: HVAC will not respond to navigation commands. |
