Audio-Navigation Unit Connector G (16P)

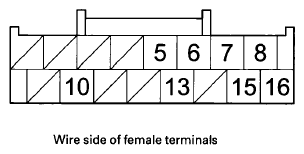

Fig 1: Audio-Navigation Unit G (16P) Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

AUDIO-NAVIGATION UNIT CONNECTOR G (16P)

Cavity

Wire Color

Terminal Name

Description

Voltage (about)

Symptom

GRN

RGB GND (Ground signal)

Ground for color signal

0 V

If open: No effect on system. If short to ground: No effect on system.

YEL

B-SIG (Blue signal)

Blue color signal

0.2 V AC average in RGB color diagnostic mode

If open: Blue color missing (see RGB Color diagnosis under Monitor Check ). If short to ground: Blue color missing (see RGB Color diagnosis under Monitor Check ).

RED

G-SIG (Green signal)

Green color signal

0.7 V AC average in RGB color diagnostic mode

If open: Green color missing (see RGB Color diagnosis under Monitor Check ). If short to ground: Green color missing (see RGB Color diagnosis under Monitor Check ).

WHT

R-SIG (Red signal)

Red color signal

0.7 V AC average

If open: Red color missing (see RGB Color diagnosis under Monitor Check ). If short to ground: Red color missing (see RGB Color diagnosis under Monitor Check ).

G10

BRN

BACK LT- (Back light or reverse signal)

Reverse signal of select lever from reverse relay

In reverse, battery voltage: Otherwise 0 V

If open: Navigation never sees reverse. If short to ground: Blows fuse No. 5 (7.5 A) in the driver's under-dash fuse/relay box. Diagnostic screen Car Status, Back=0.

G13

GRY⁽¹⁾

SIG SH (Shield signal)

Shield for terminals No. 5, No. 6, No. 7, No. 8, No. 15, and No. 16

0 V

If open: No effect on system. If short to ground: No change to display.

G15

BLU

Overlay control signal

1.0V AC average

If open: No change to display. If short to ground: No change to display.

G16

BRN

C-SIG (Composite signal)

Composite video (vertical/horizontal) Synchronizing signal

0.2 V AC average in RGB color diagnostic mode

If open: Picture rolls horizontally, colors still visible. If short to ground: Picture rolls horizontally, colors still visible.

⁽¹⁾	The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the circuit diagram.
