Integrated Dynamics System Switch Test (2014 2015): Test

  1. Center Console Panel - Remove
  2. Integrated Dynamics System Switch - Test
    GHH320061GHH320062Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH320061GHH320062Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

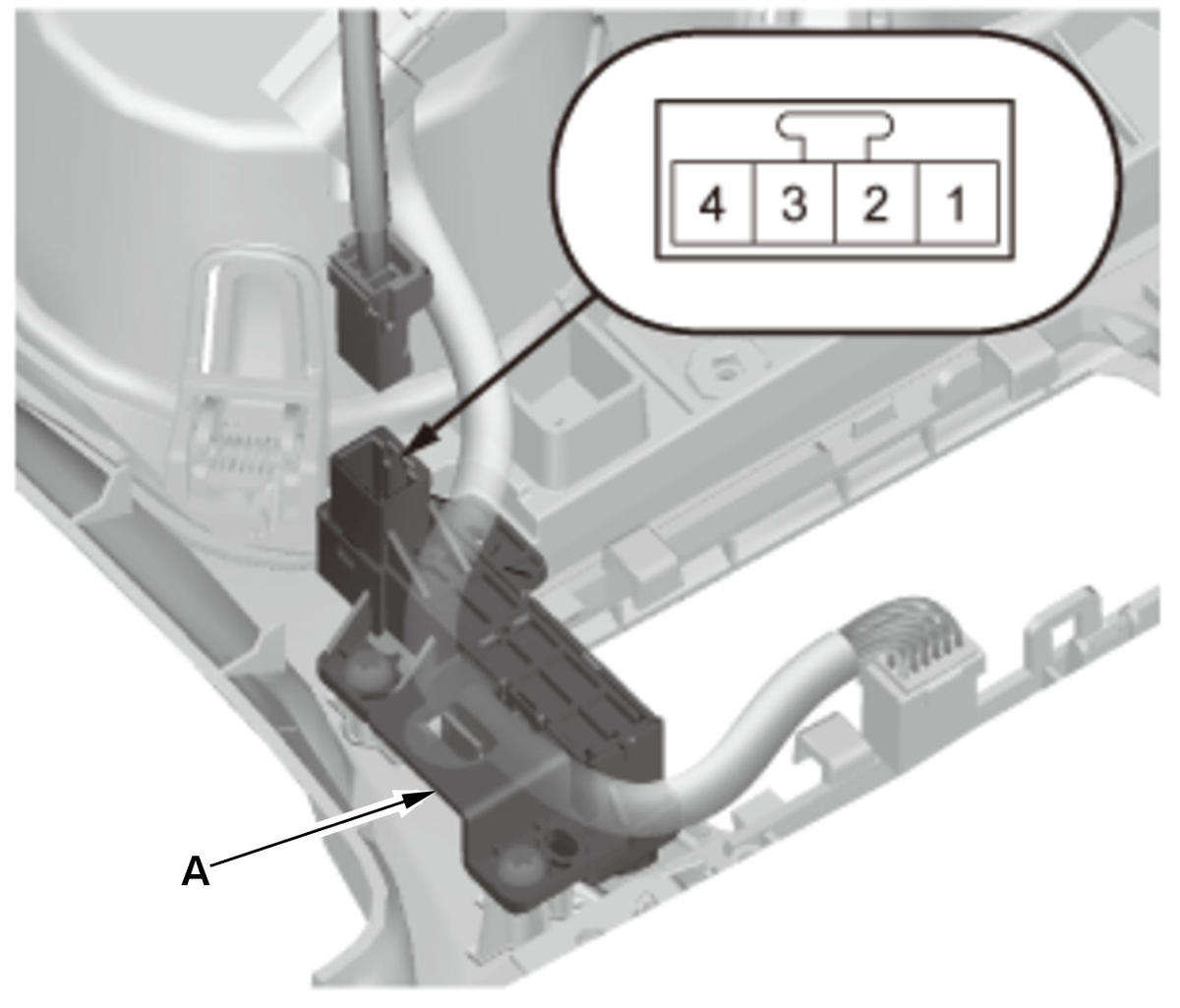

    		 1. Disconnect the integrated dynamics system switch connector.

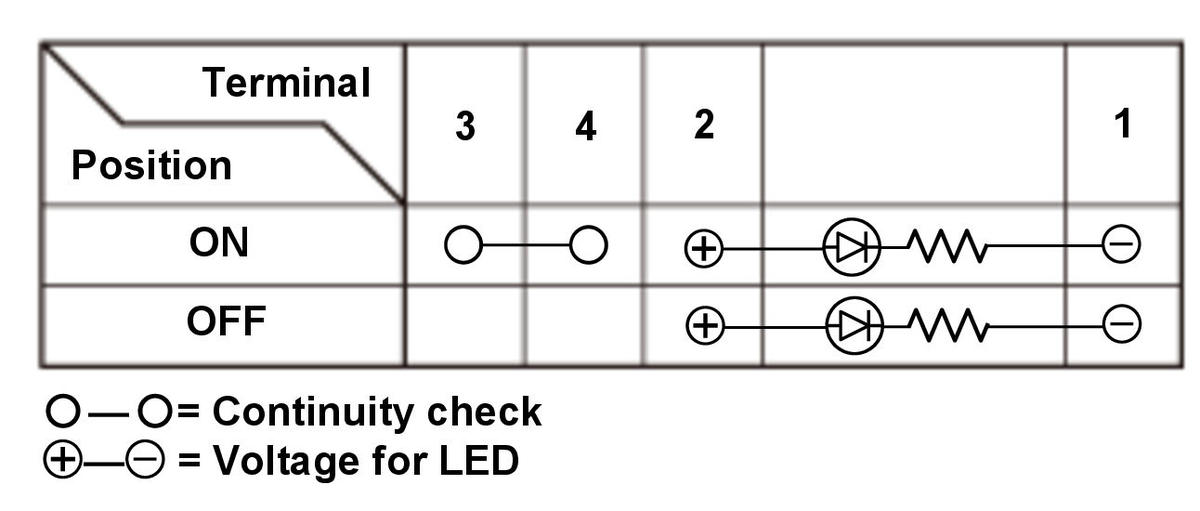

    2. Check the integrated dynamics system switch (A) according to the table.

    • When an LED is located between terminals, check if the LED lights by connecting power and ground to the LED.
      • NOTE: Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

    3. If the continuity is not as specified, replace the integrated dynamics system switch - Refer to: Integrated Dynamics System Switch Removal and Installation (2016 2017 2018 2019 2020) or Integrated Dynamics System Switch Removal and Installation (2014 2015) .
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
