Keyless/Power Door Locks/Security System Circuit Diagram (2017 2018)

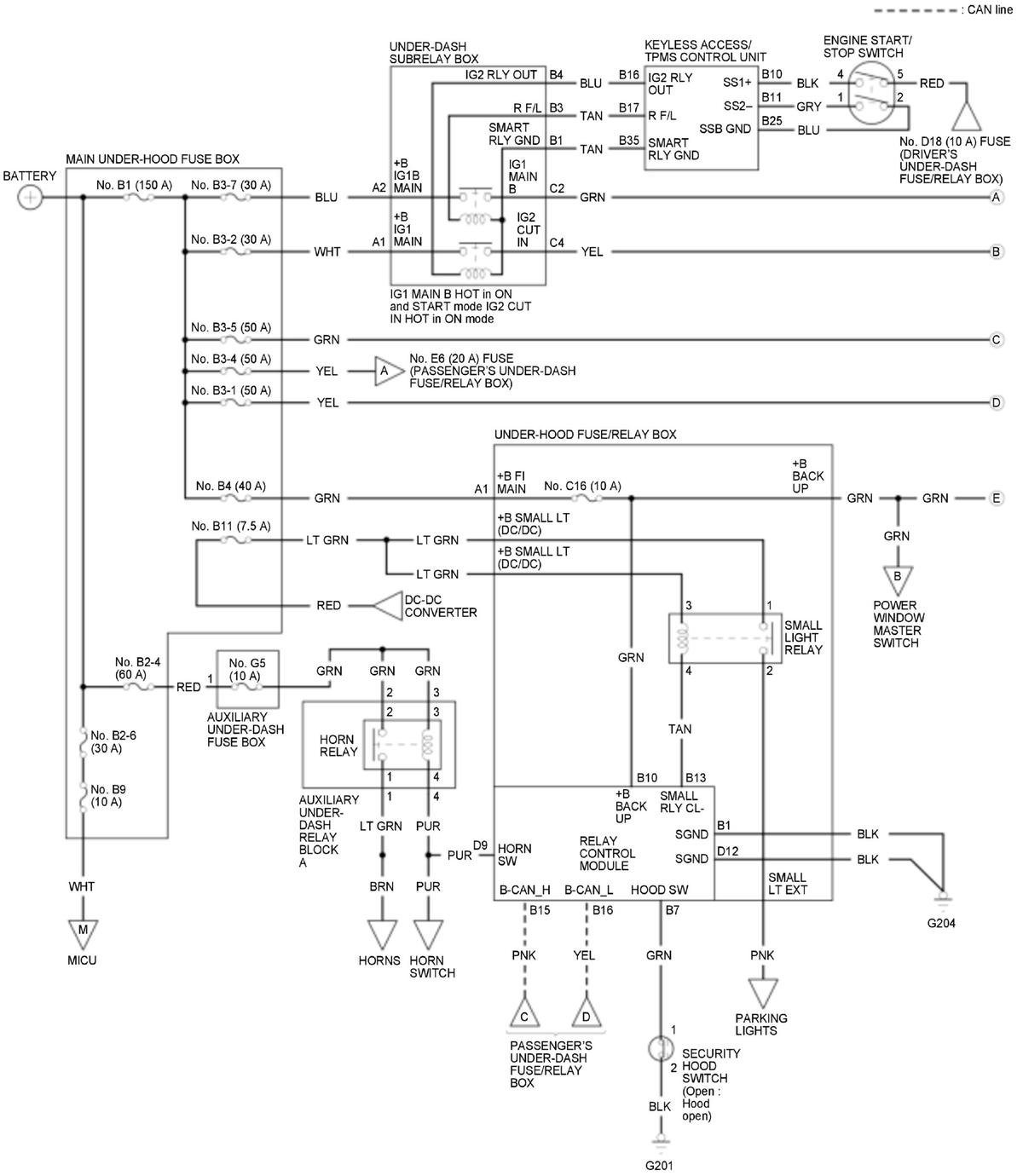

GHH326663

Courtesy of HONDA, U.S.A., INC.

GHH326664

Courtesy of HONDA, U.S.A., INC.

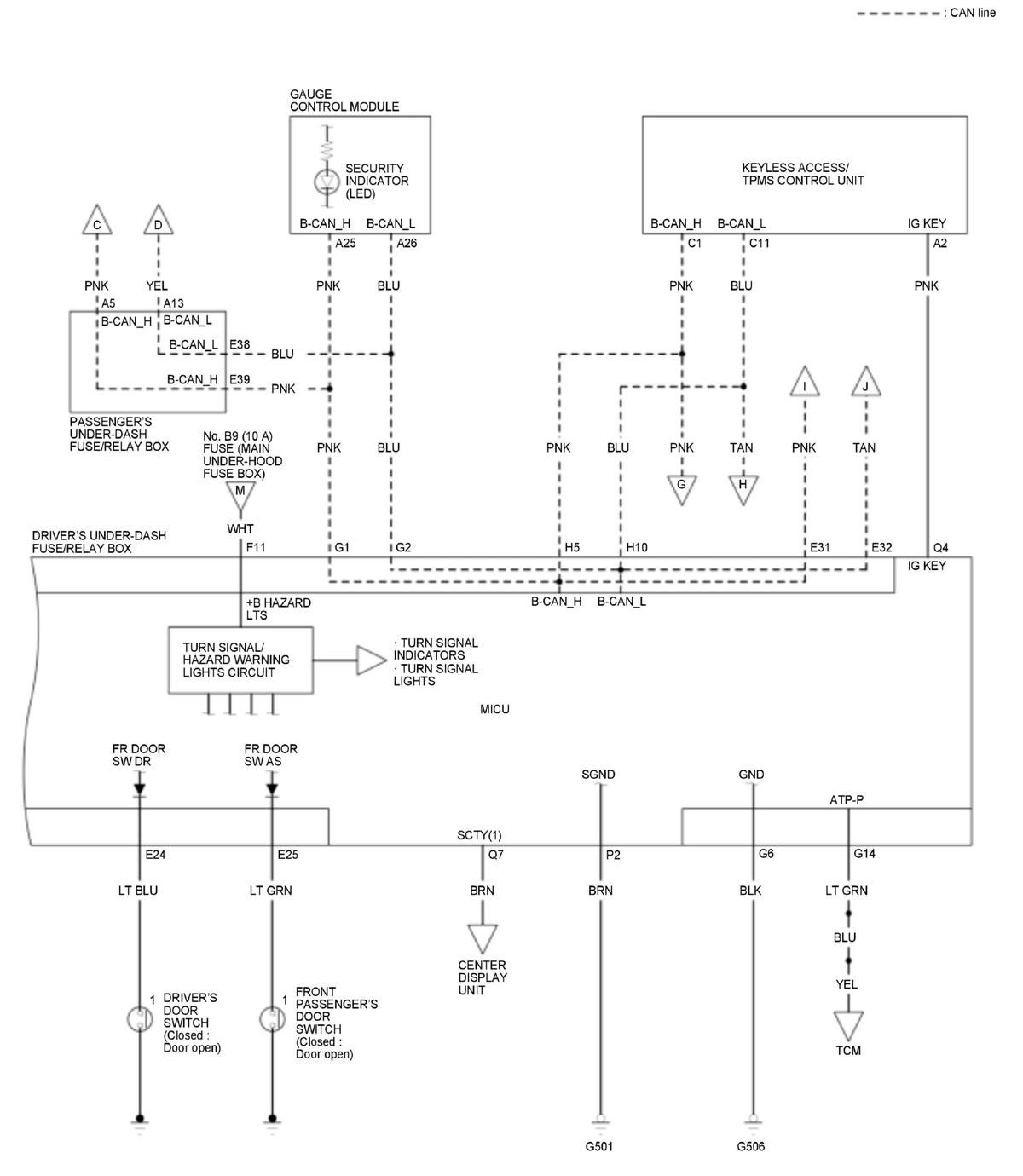

GHH326665

Courtesy of HONDA, U.S.A., INC.

GHH326666

Courtesy of HONDA, U.S.A., INC.

GHH326667

Courtesy of HONDA, U.S.A., INC.

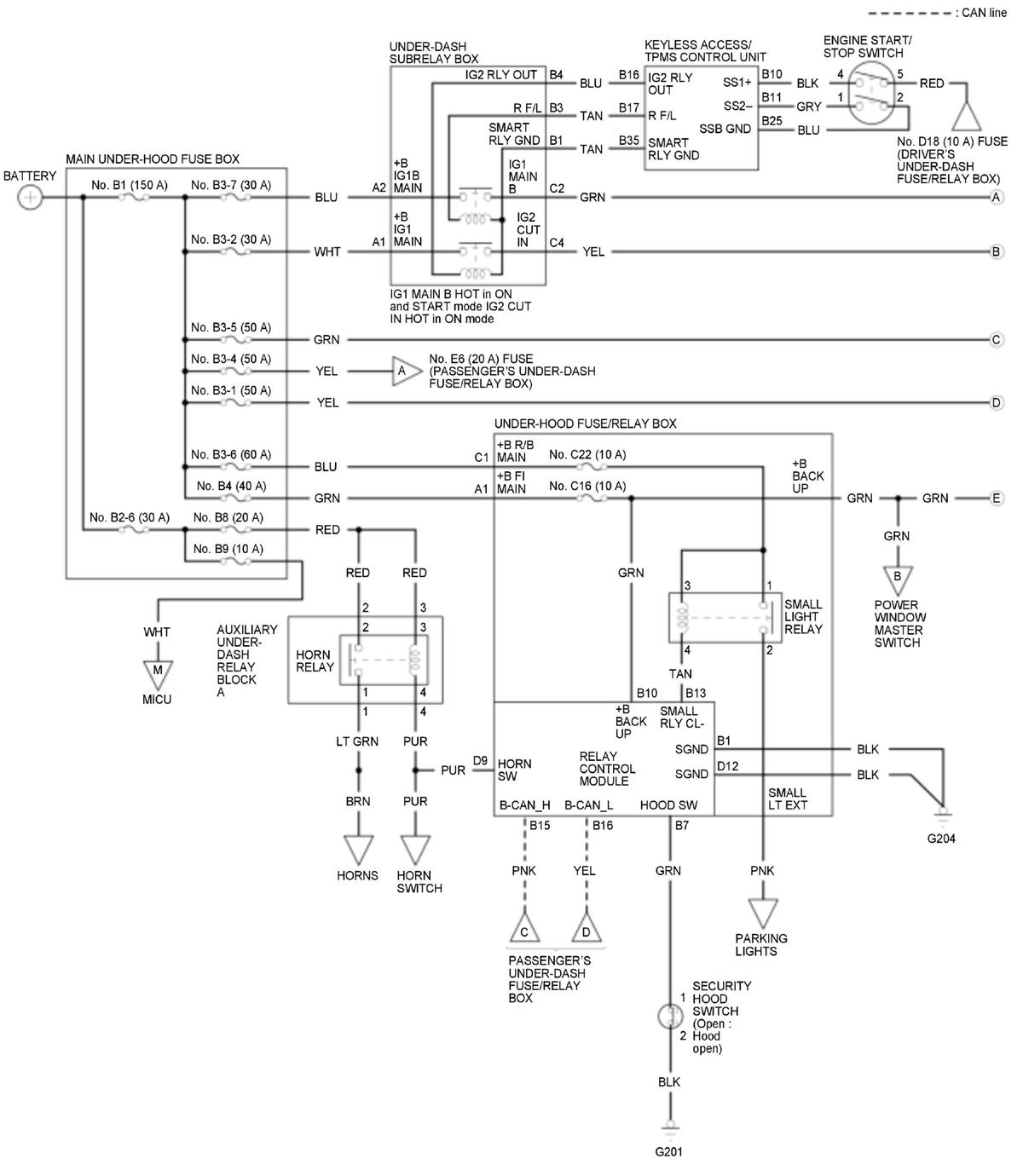

GHH326668

Courtesy of HONDA, U.S.A., INC.

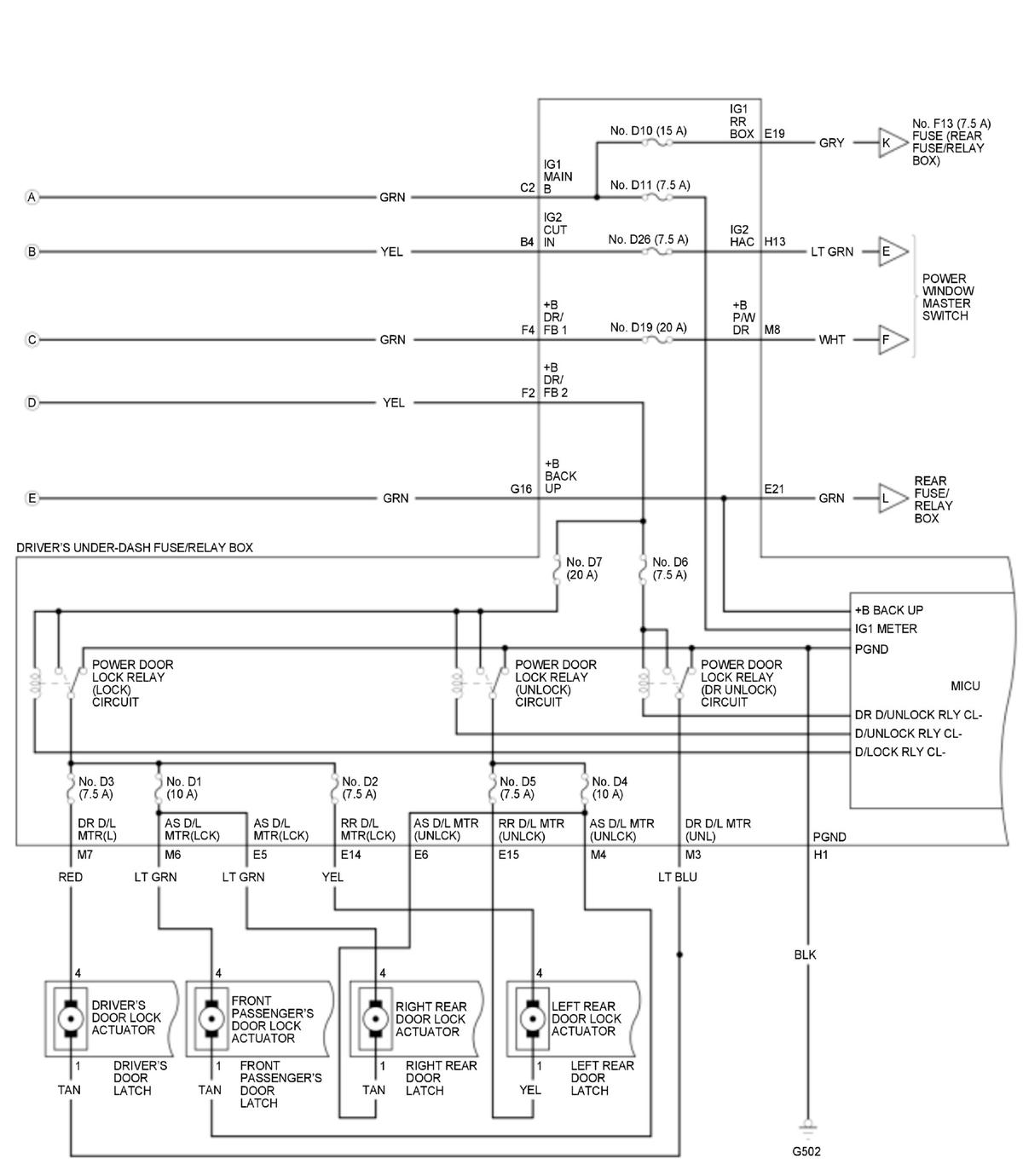

GHH326669

Courtesy of HONDA, U.S.A., INC.

GHH326670

Courtesy of HONDA, U.S.A., INC.

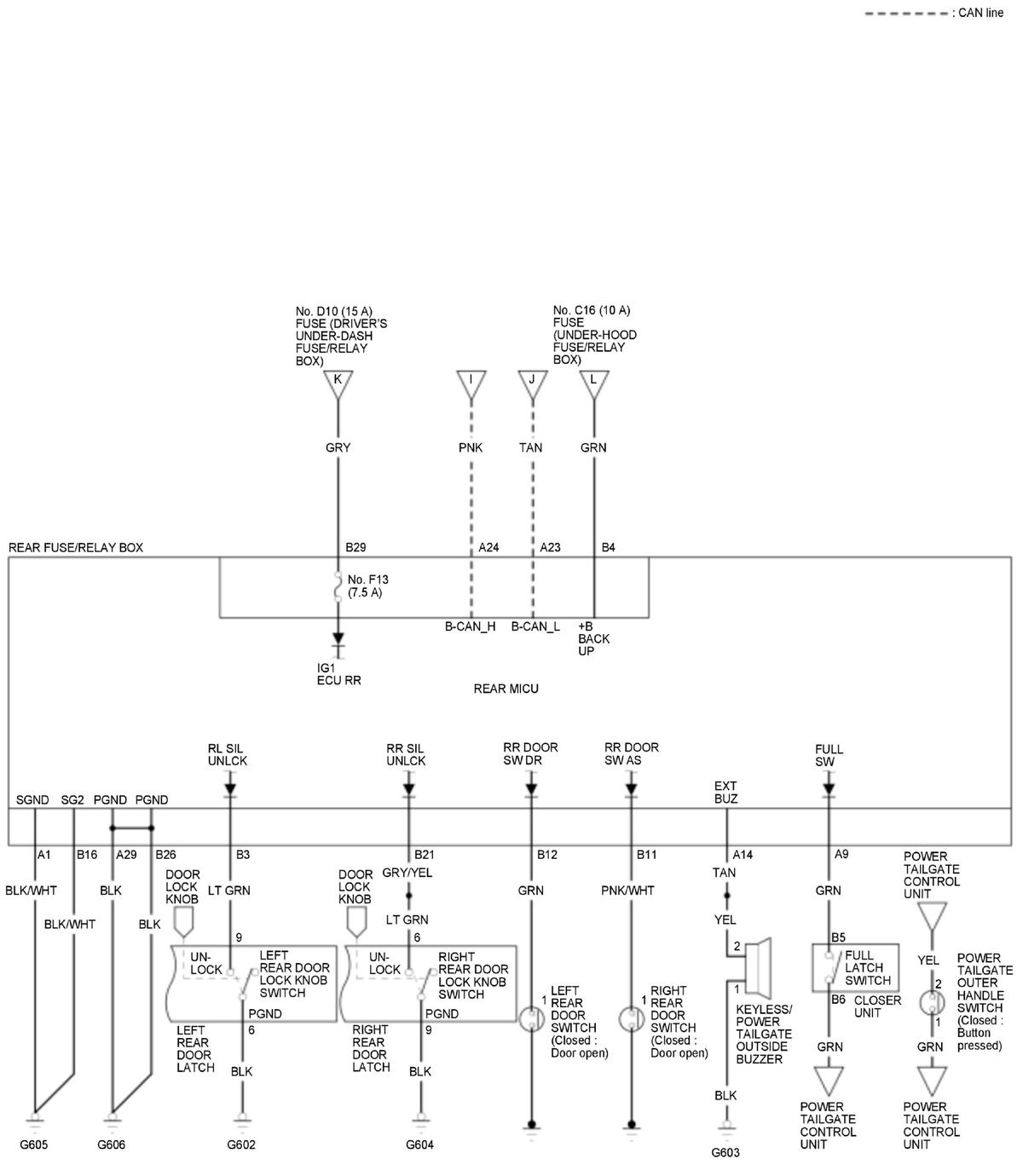

GHH326671

Courtesy of HONDA, U.S.A., INC.

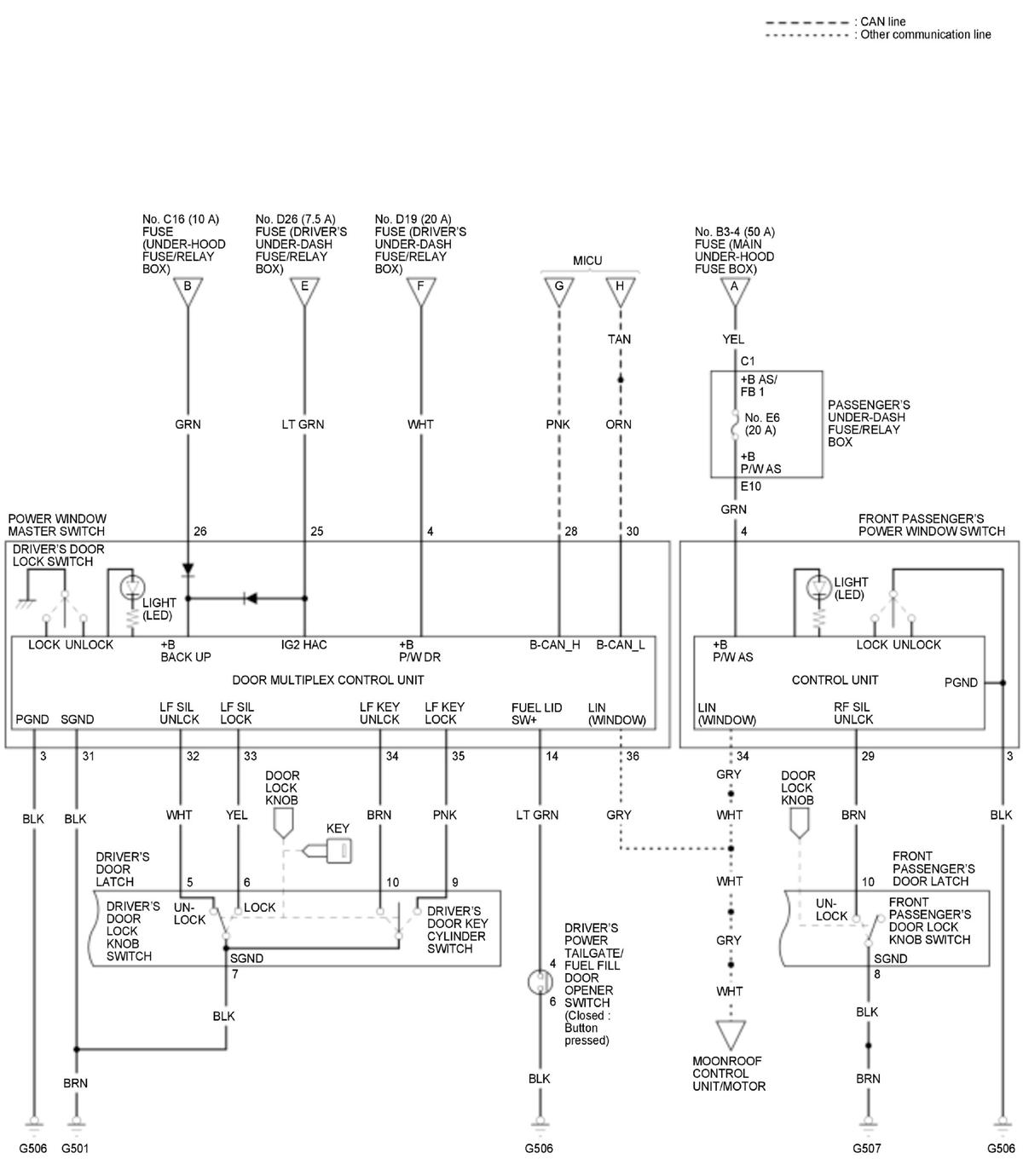

GHH326672

Courtesy of HONDA, U.S.A., INC.
