Keyless Access System Component Location Index

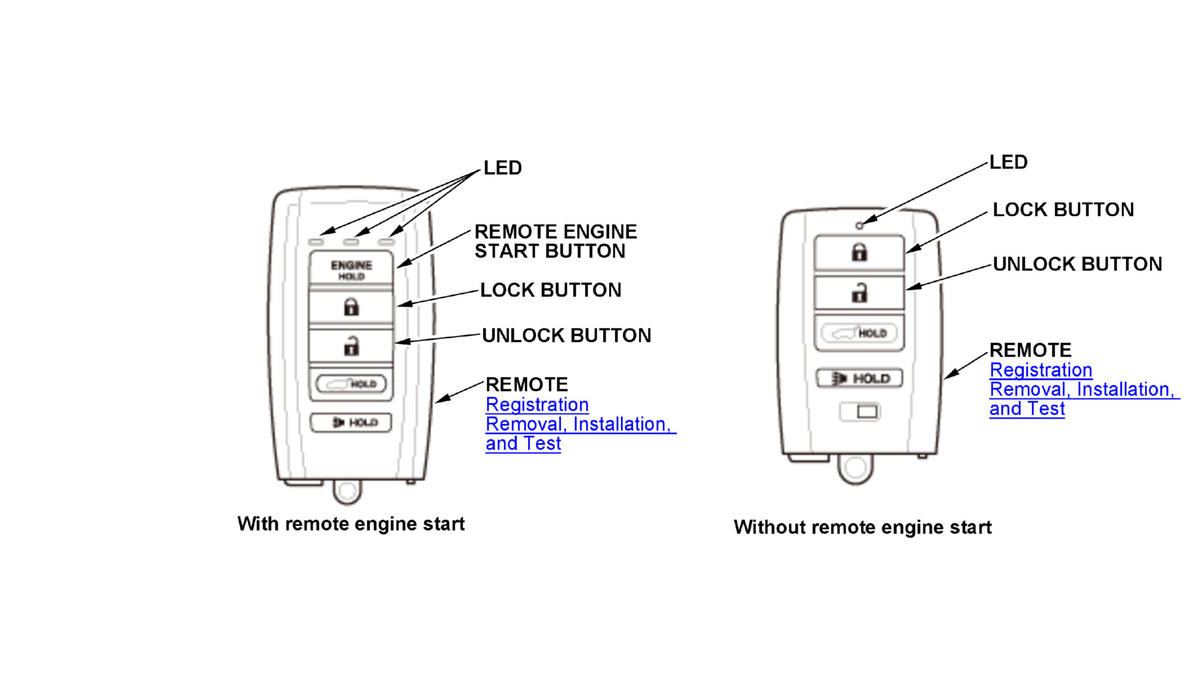

GHH326473Courtesy of HONDA, U.S.A., INC.

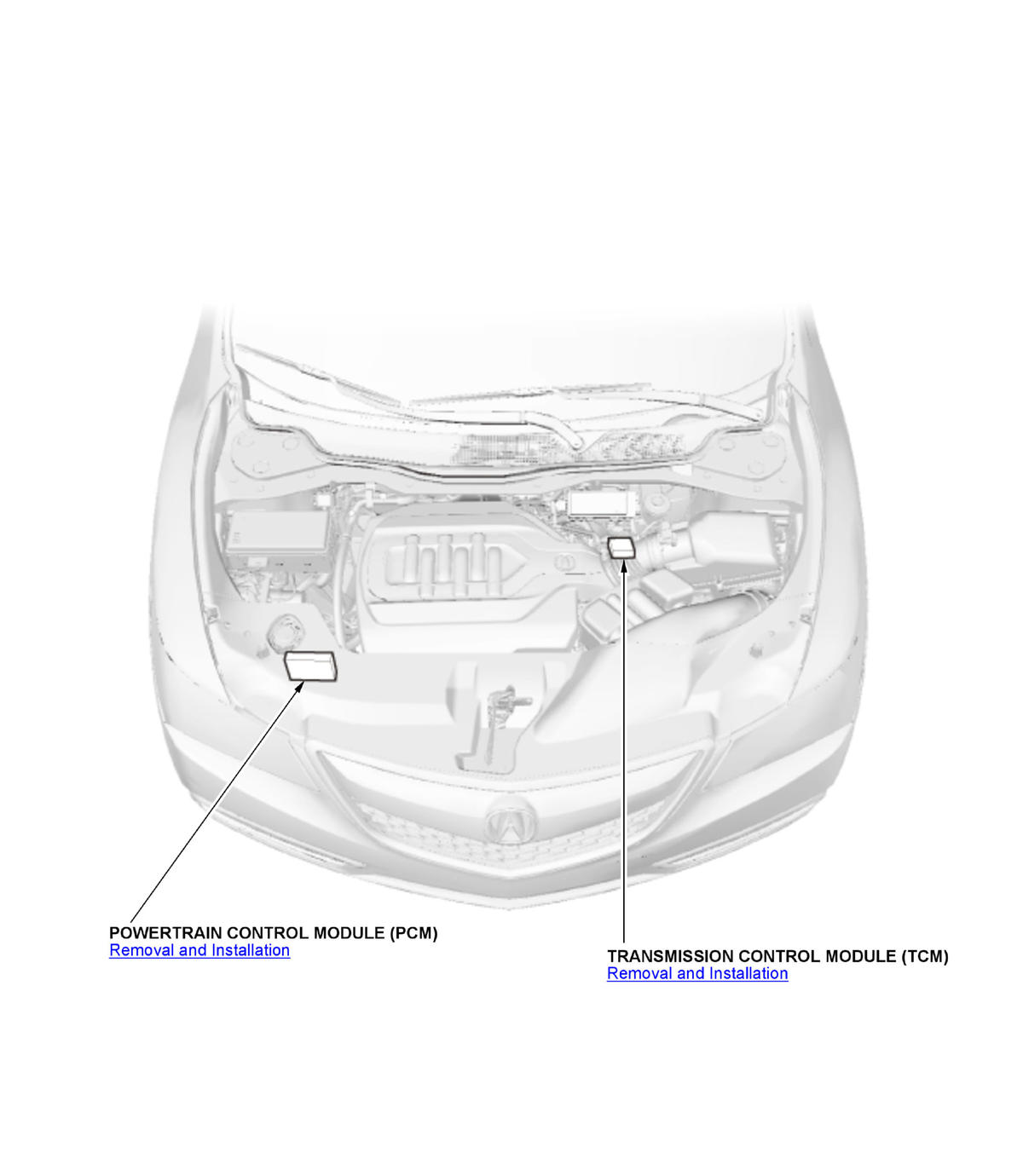

GHH326474Courtesy of HONDA, U.S.A., INC.

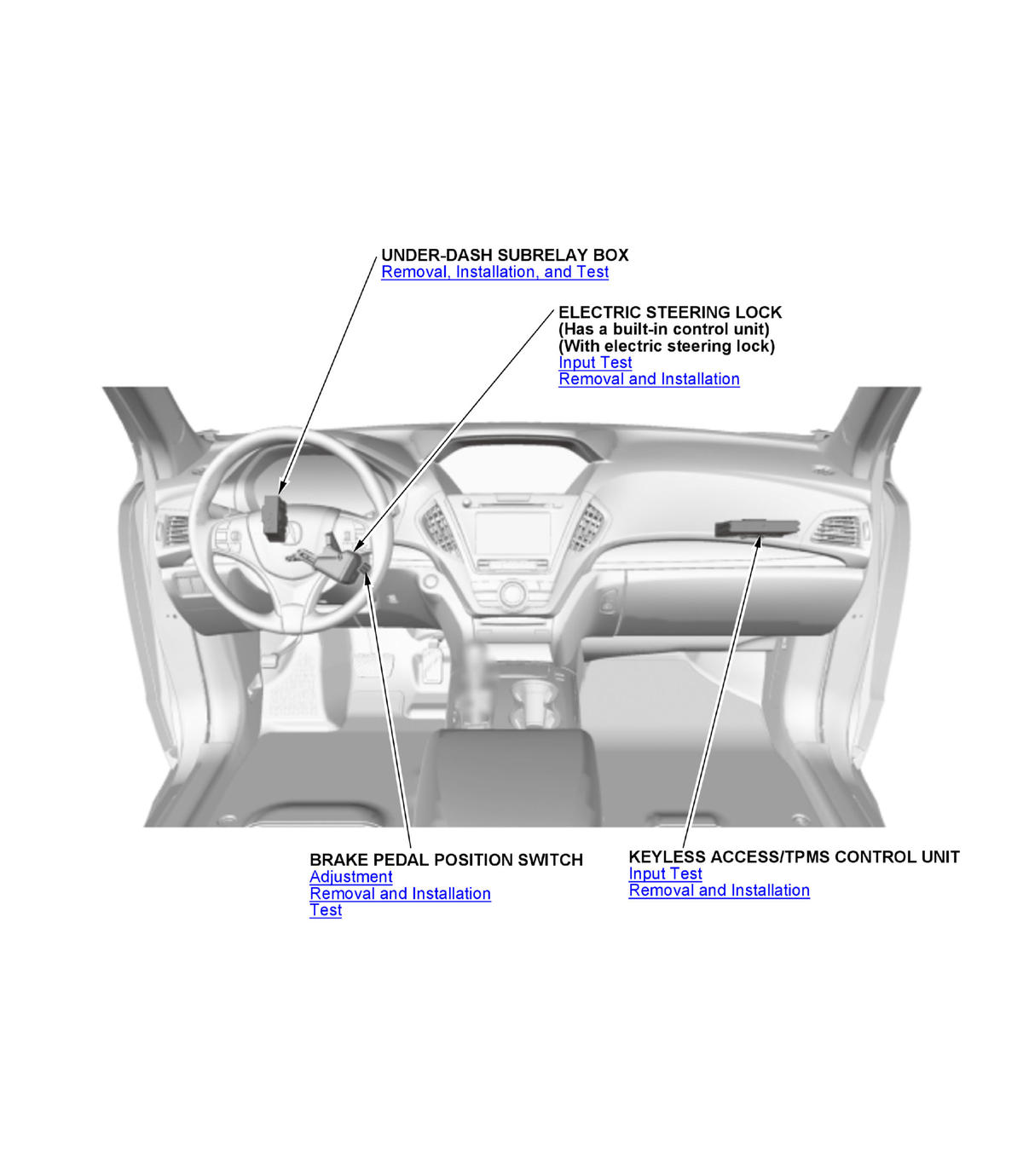

GHH326475Courtesy of HONDA, U.S.A., INC.

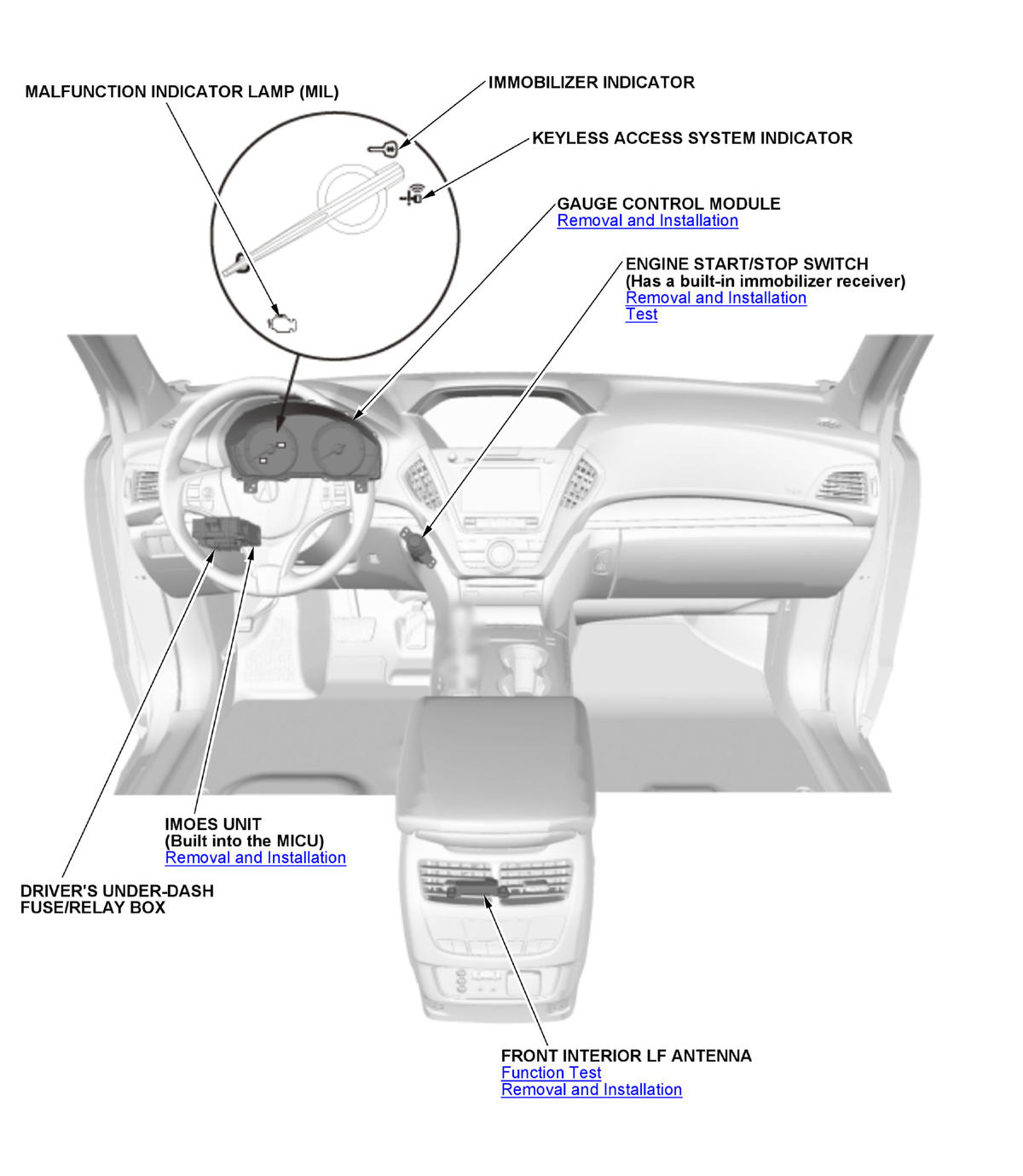

GHH326476Courtesy of HONDA, U.S.A., INC.

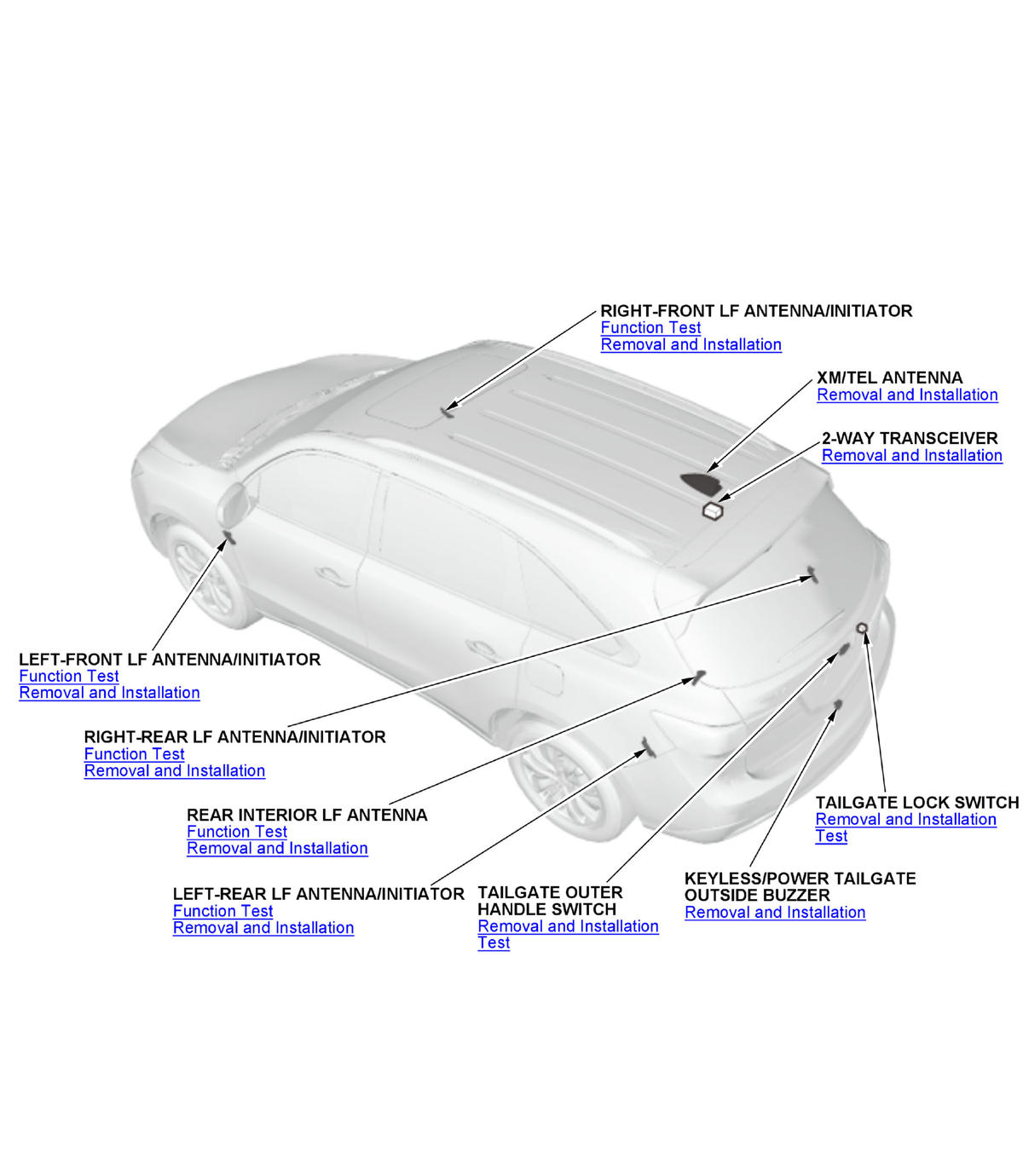

GHH326477Courtesy of HONDA, U.S.A., INC.

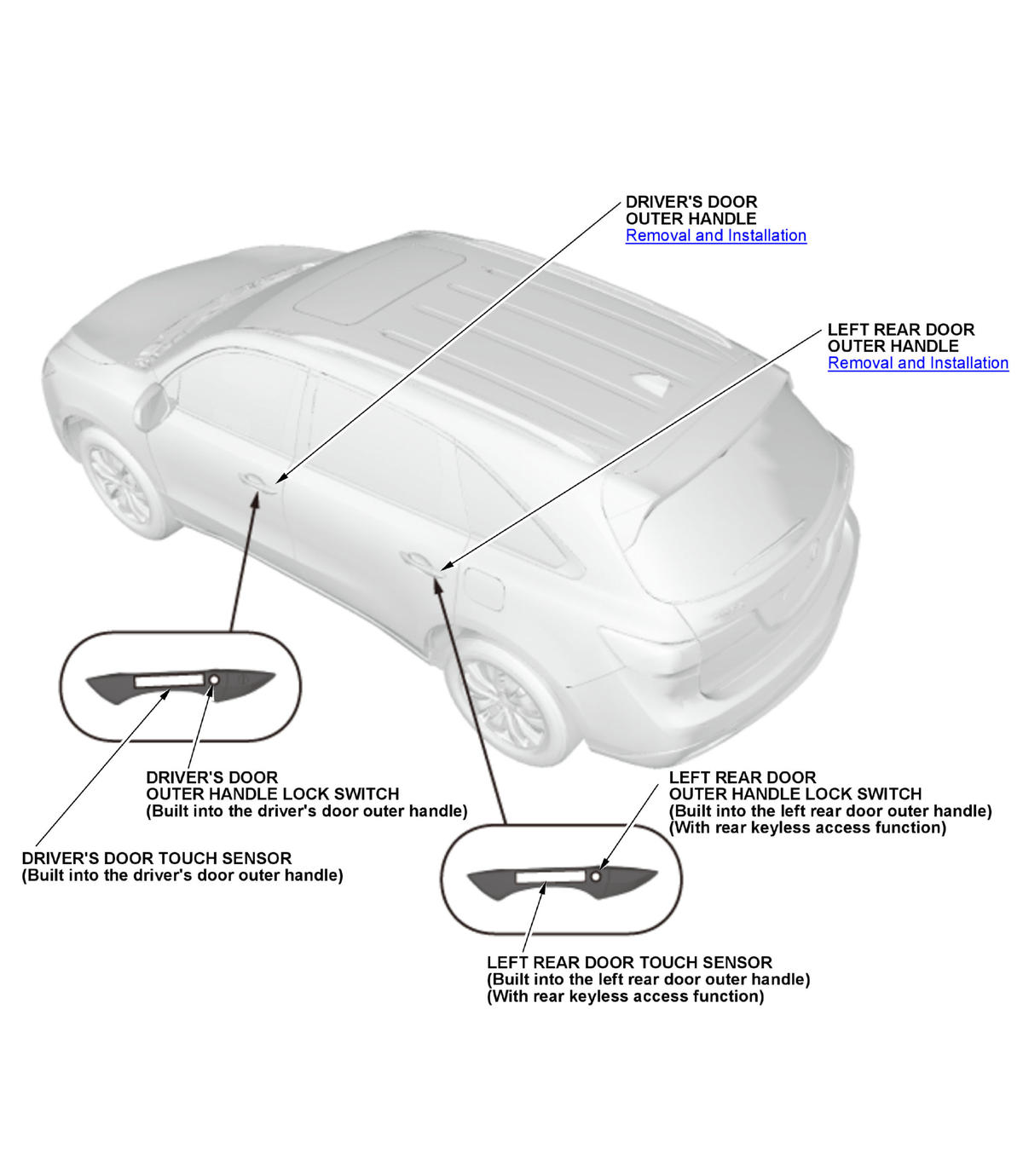

GHH326478Courtesy of HONDA, U.S.A., INC.

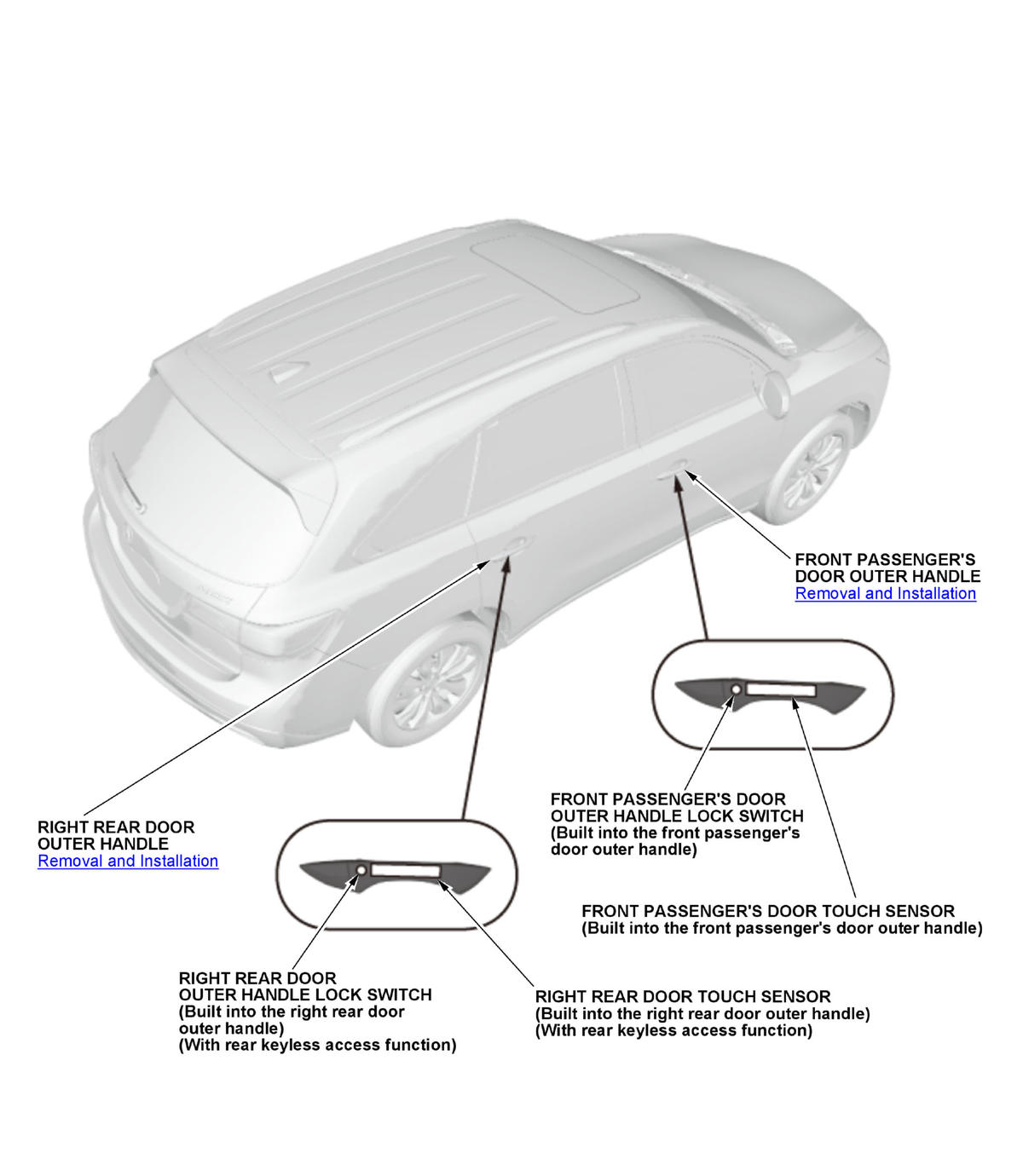

GHH326479Courtesy of HONDA, U.S.A., INC.
