Keyless/Power Door Locks/Security System Component Location Index

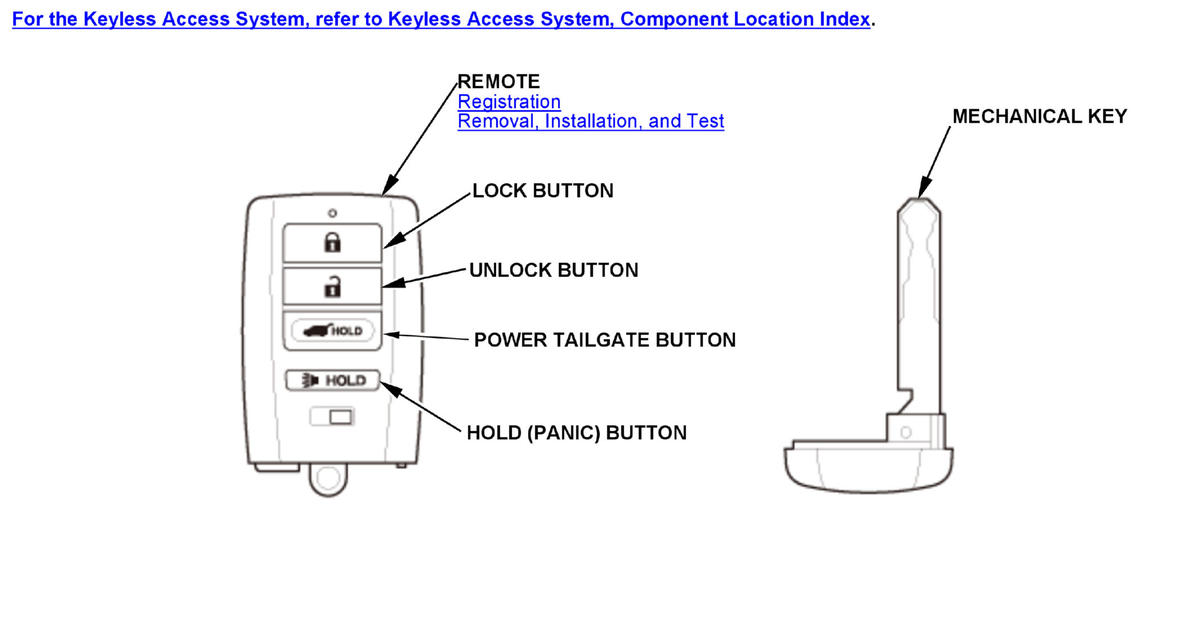

GHH326487Courtesy of HONDA, U.S.A., INC.

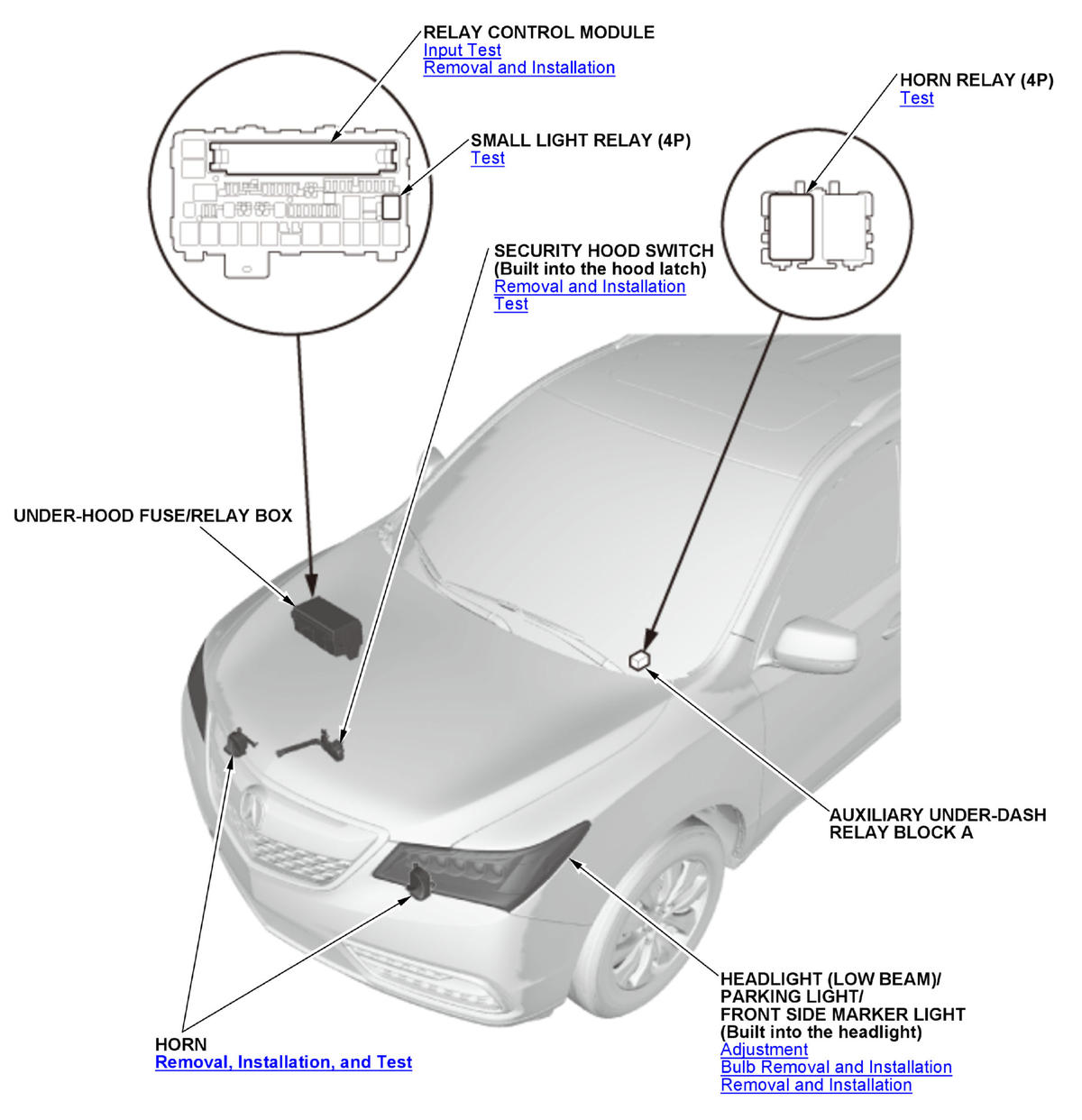

GHH326488Courtesy of HONDA, U.S.A., INC.

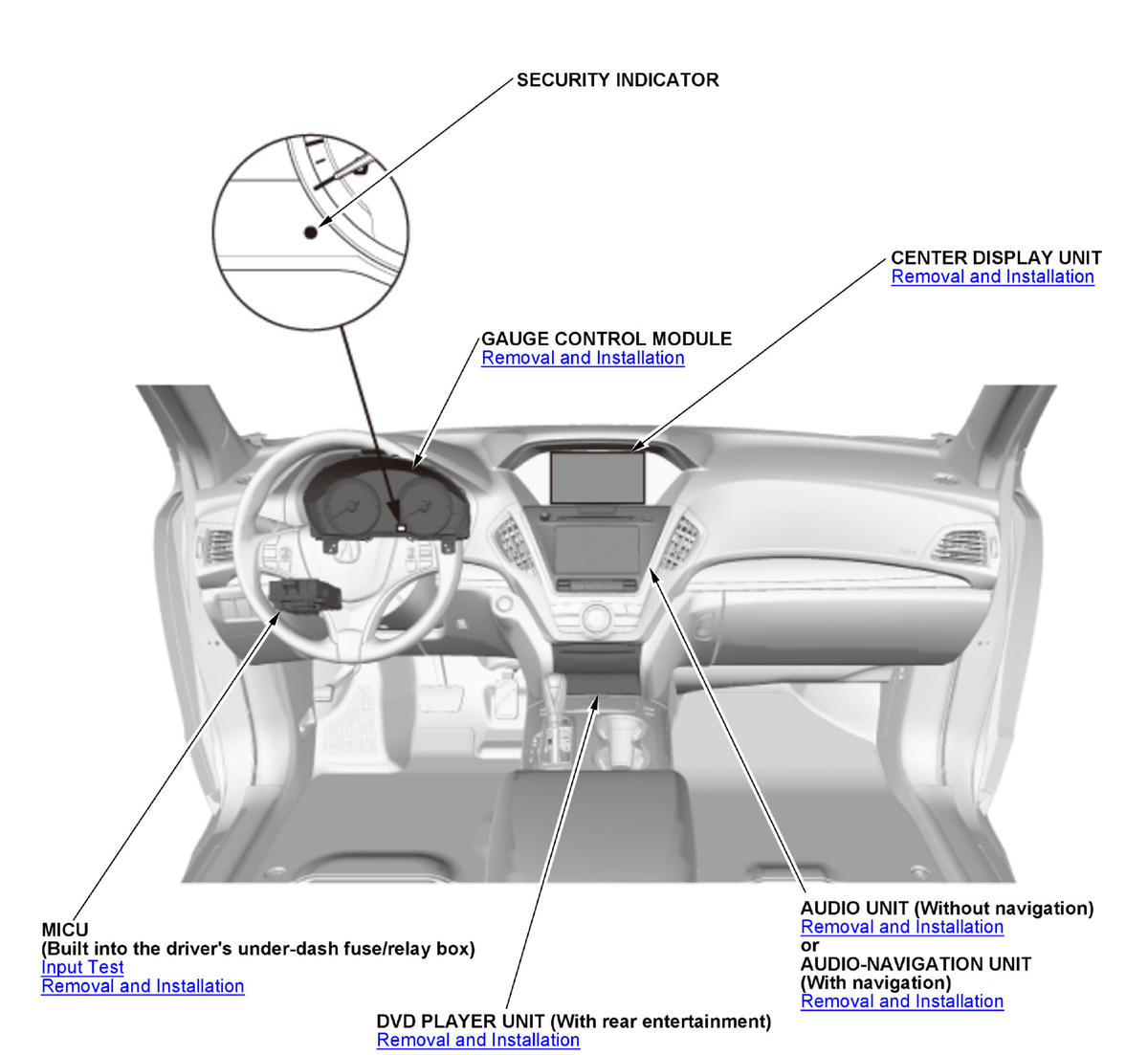

GHH326489Courtesy of HONDA, U.S.A., INC.

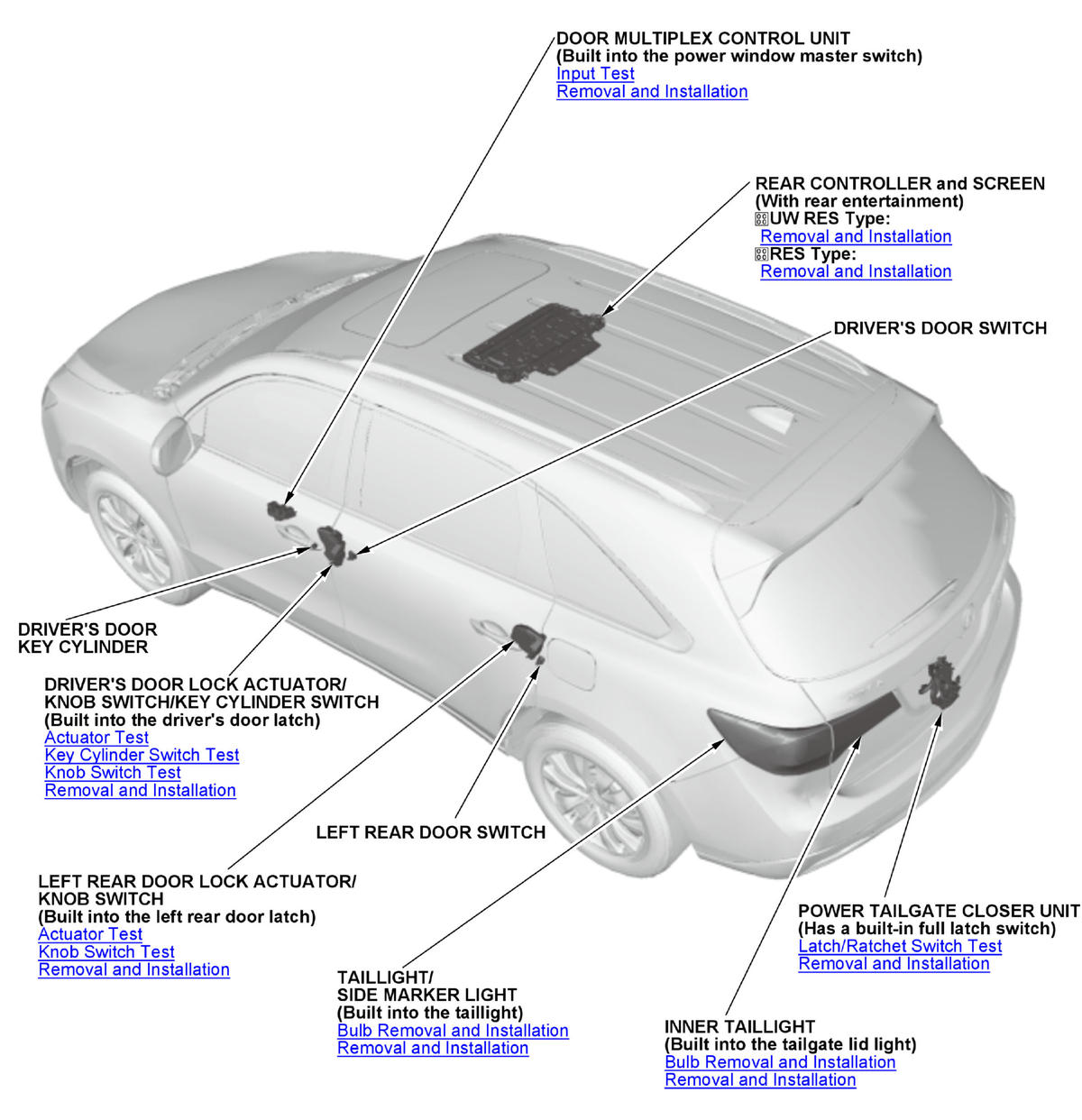

GHH326490Courtesy of HONDA, U.S.A., INC.

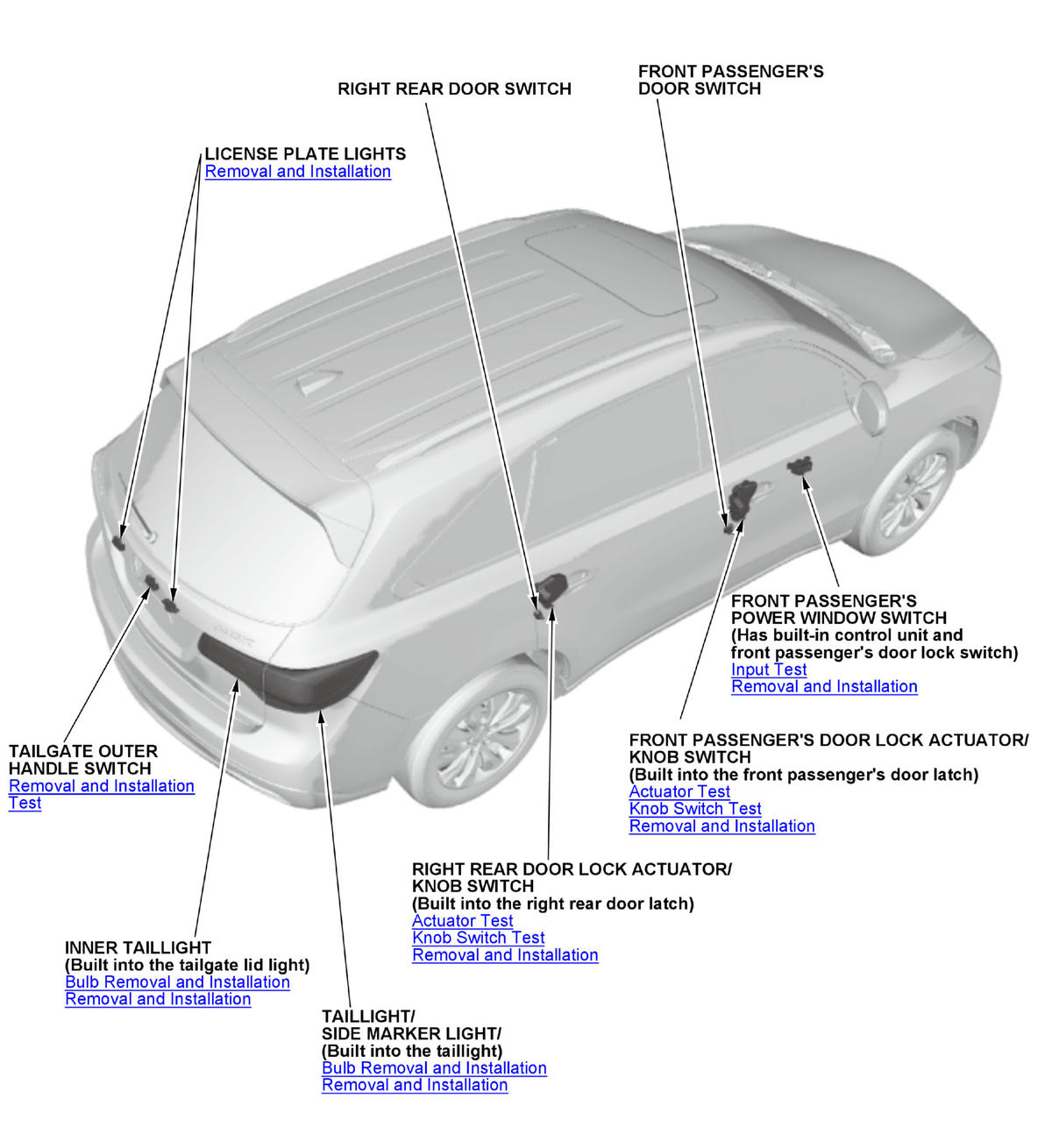

GHH326491Courtesy of HONDA, U.S.A., INC.
