Keyless Access System Description - System Diagram (2016)

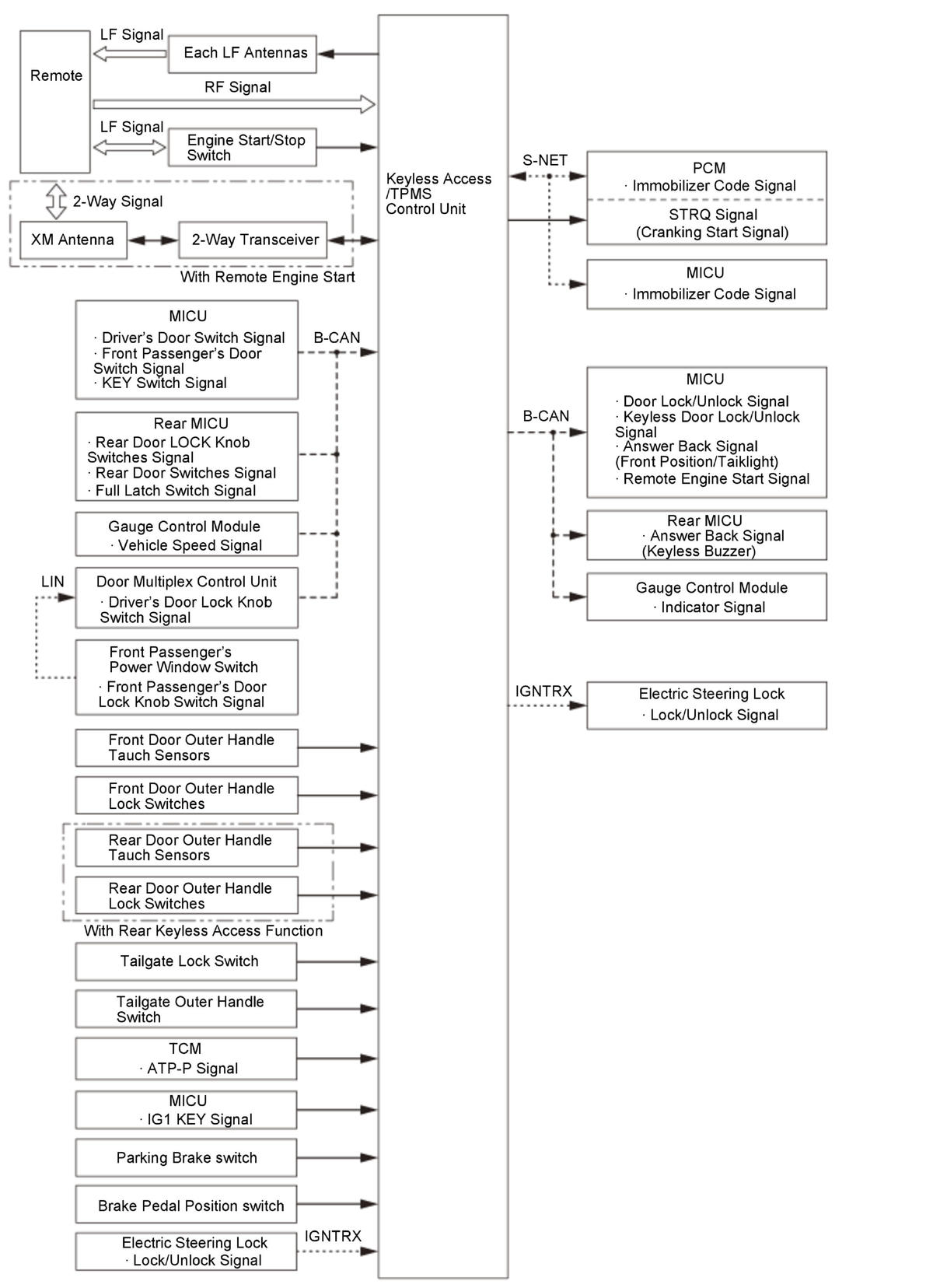

With Electric Steering Lock
Courtesy of HONDA, U.S.A., INC.

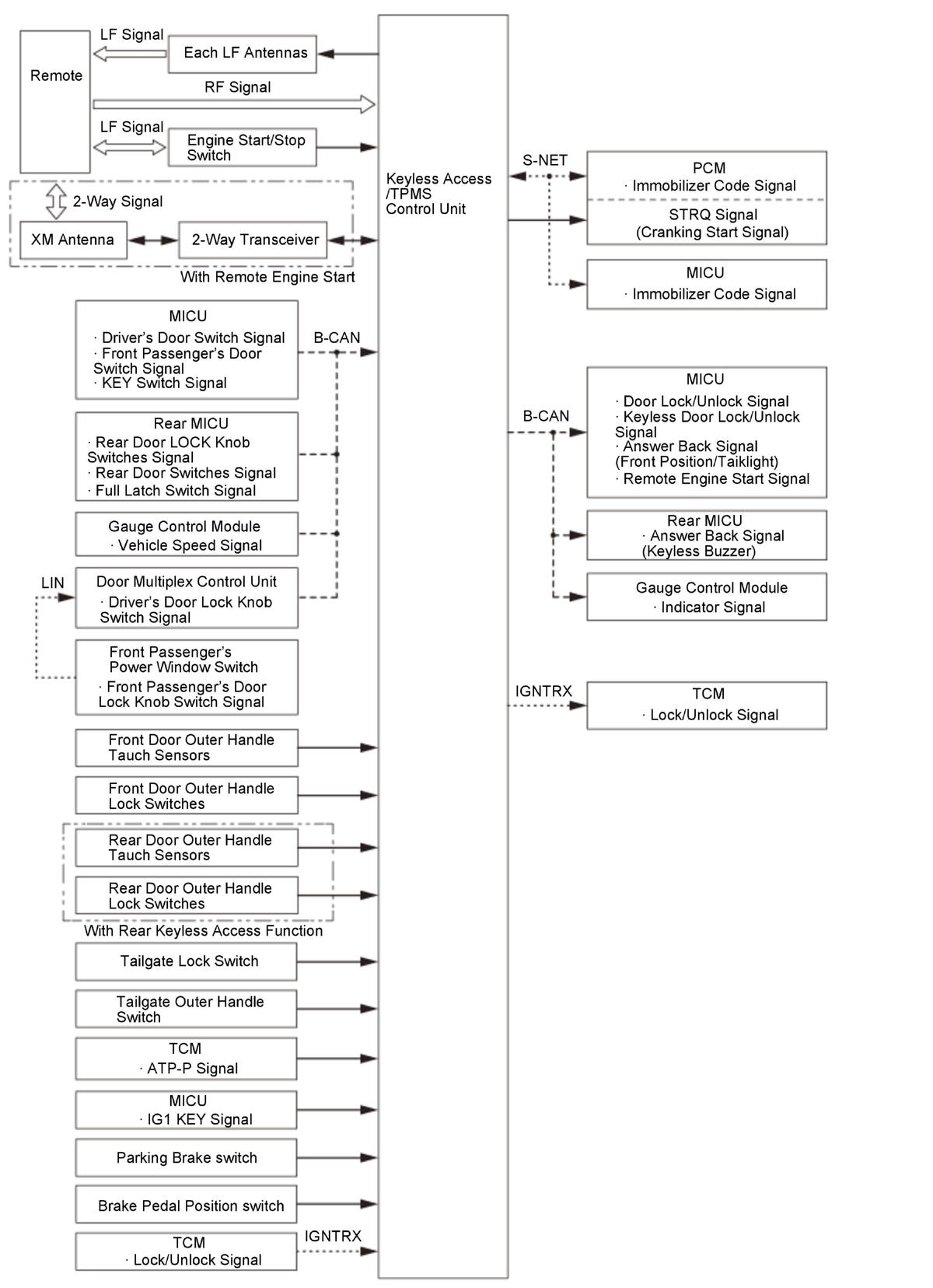

Without Electric Steering Lock
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
