Driving Position Memory System (DPMS) Circuit Diagram - Driver's Power Seat (2014 2015)

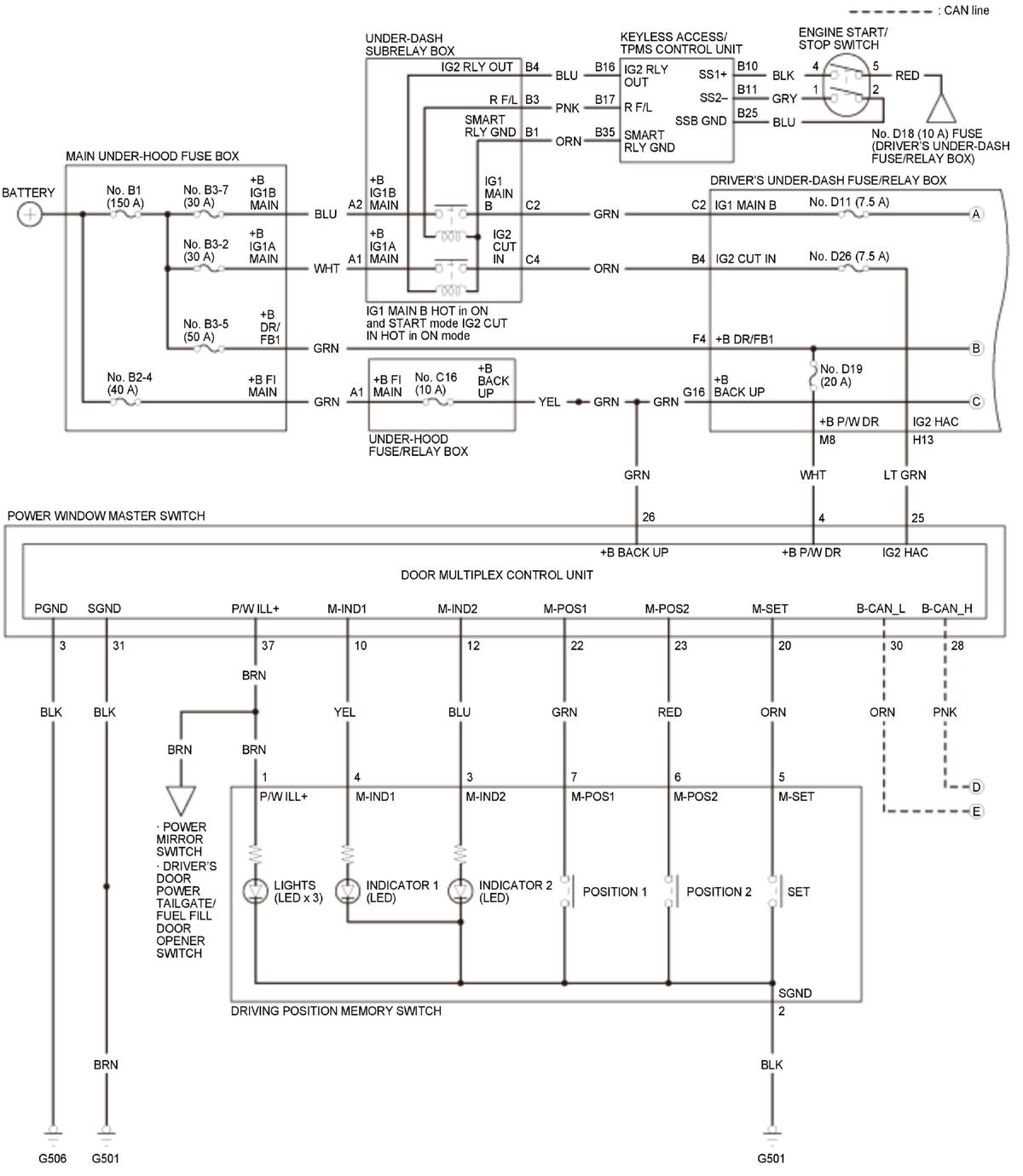

GHH323018Courtesy of HONDA, U.S.A., INC.

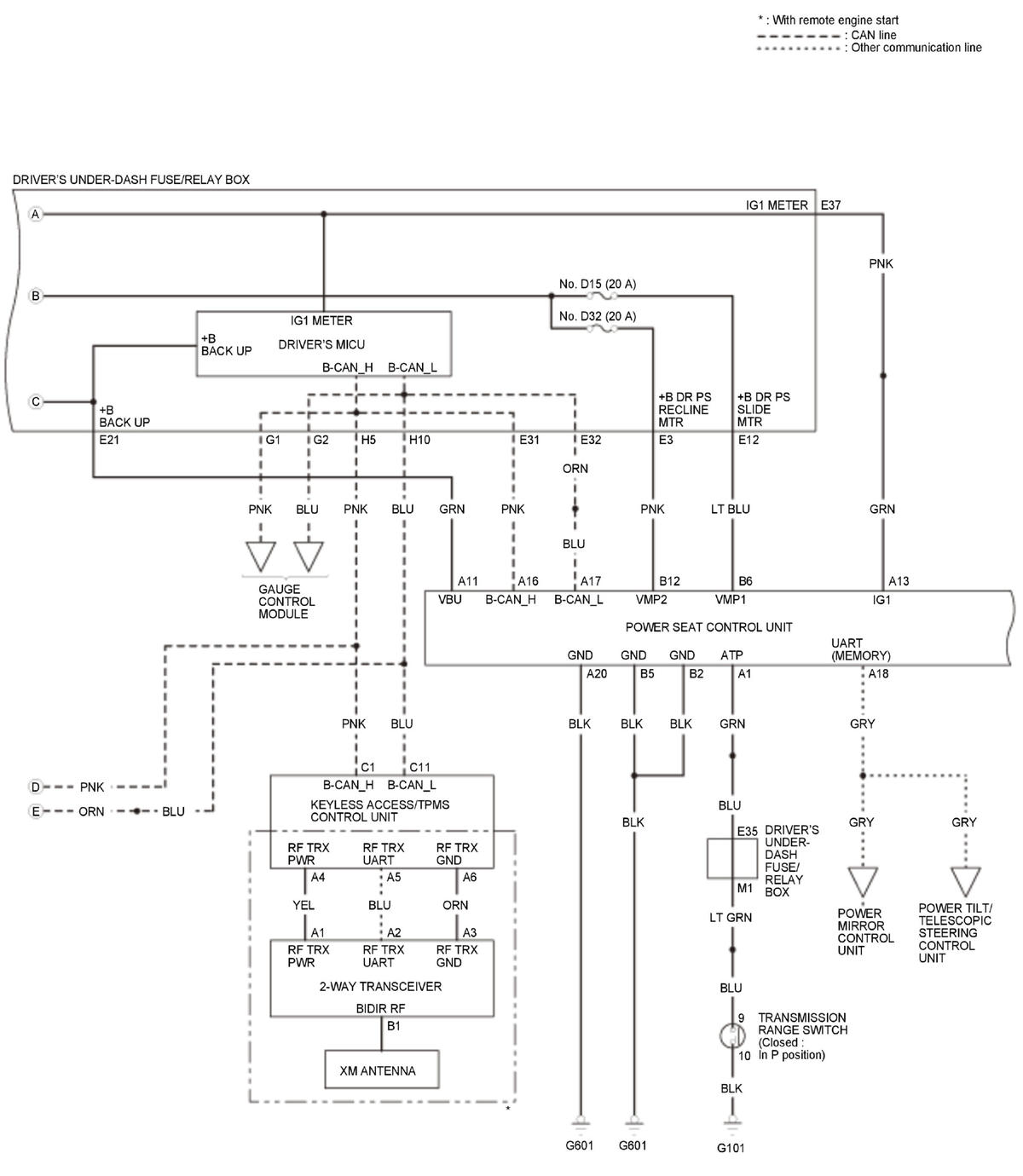

GHH323019Courtesy of HONDA, U.S.A., INC.

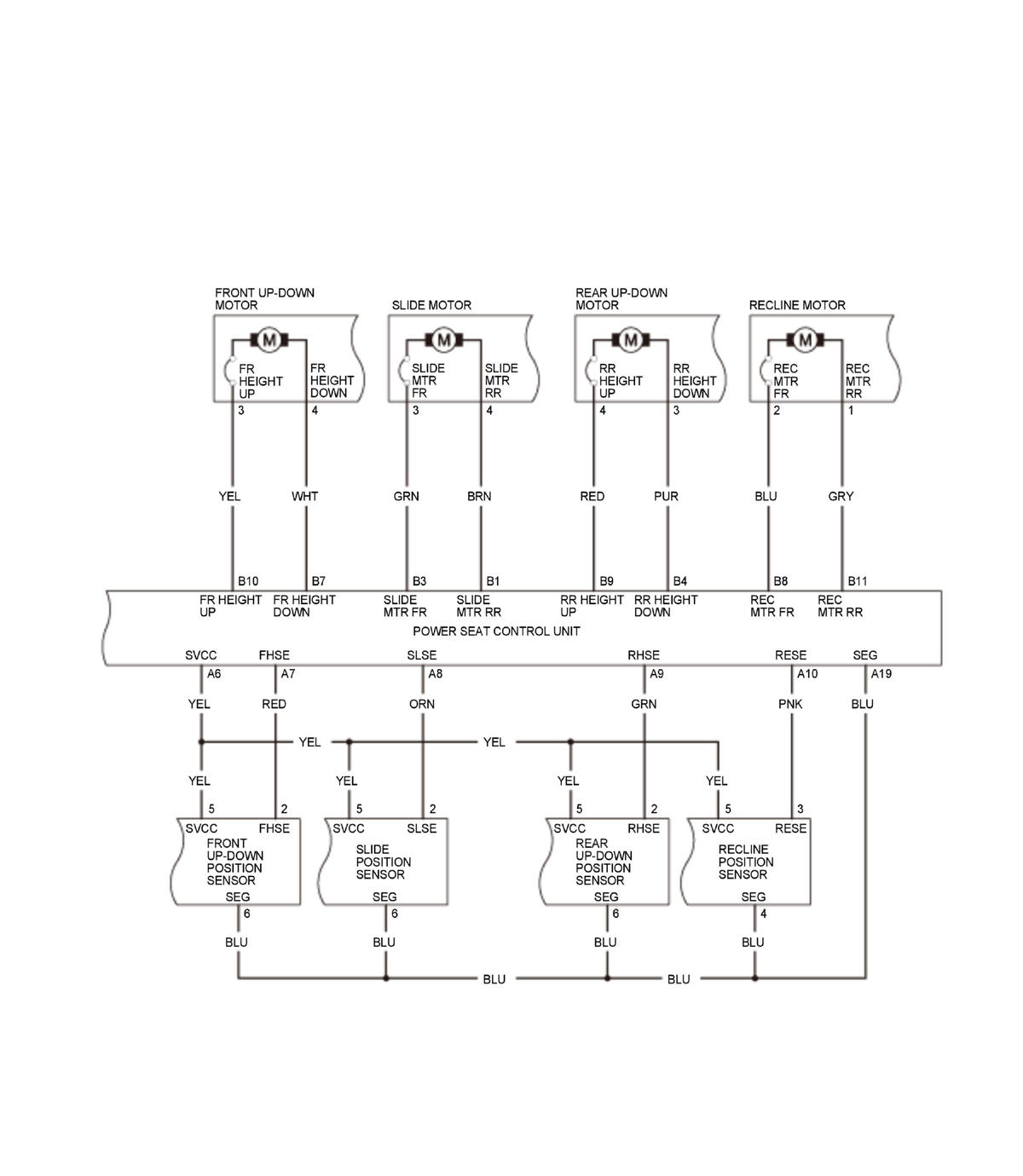

GHH323020Courtesy of HONDA, U.S.A., INC.
