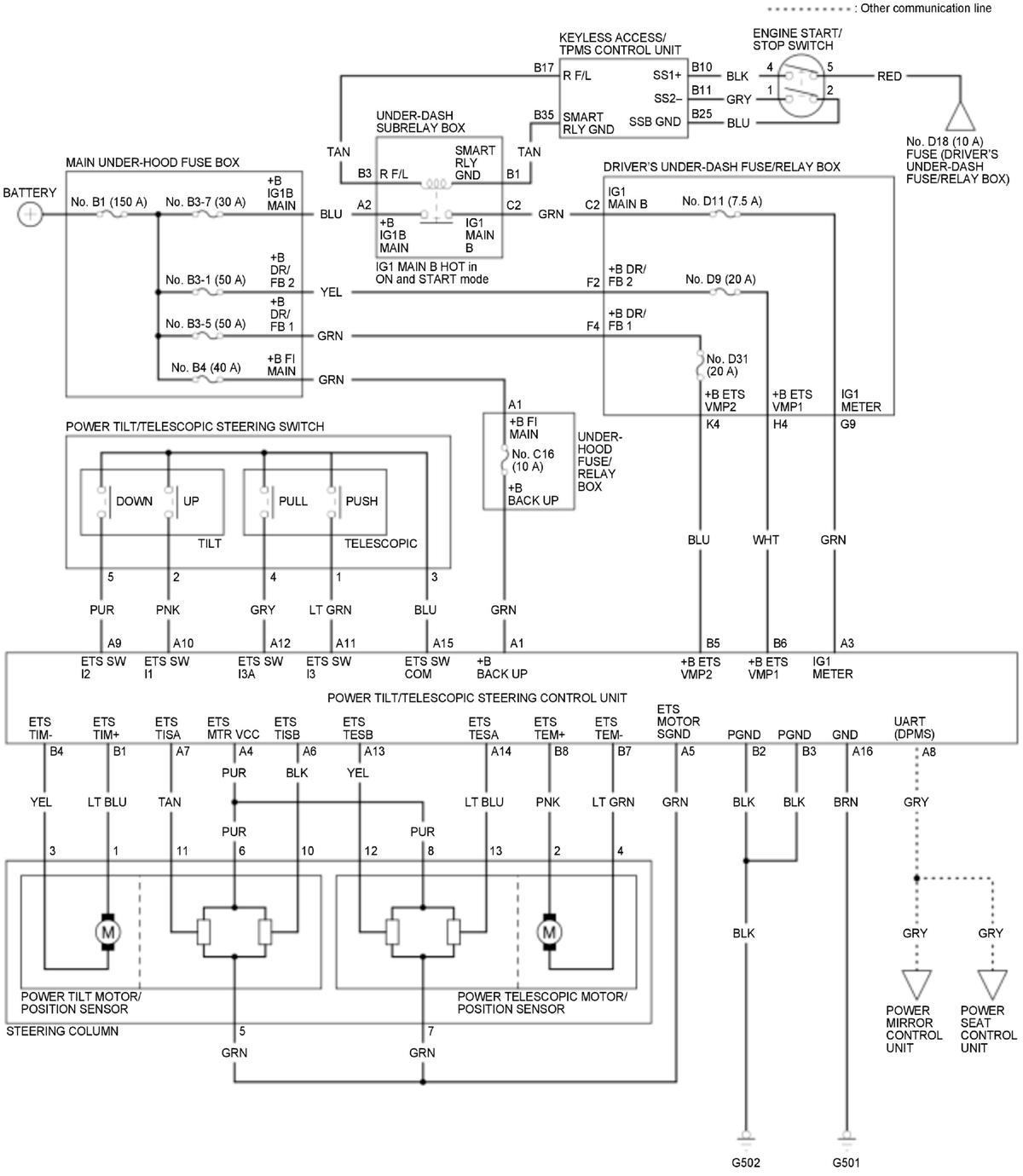

Driving Position Memory System (DPMS) Circuit Diagram - Power Tilt/Telescopic Steering (2017 2018 2019 2020)

GHH323026Courtesy of HONDA, U.S.A., INC.
