Driving Position Memory System (DPMS) Component Location Index (2019 2020)

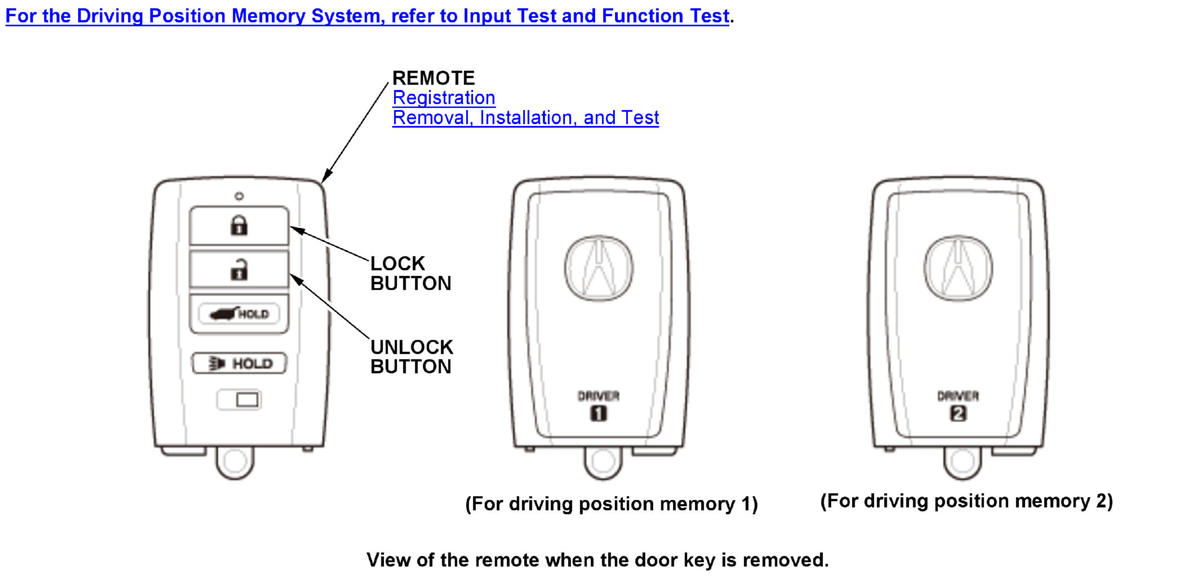

GHH322945Courtesy of HONDA, U.S.A., INC.

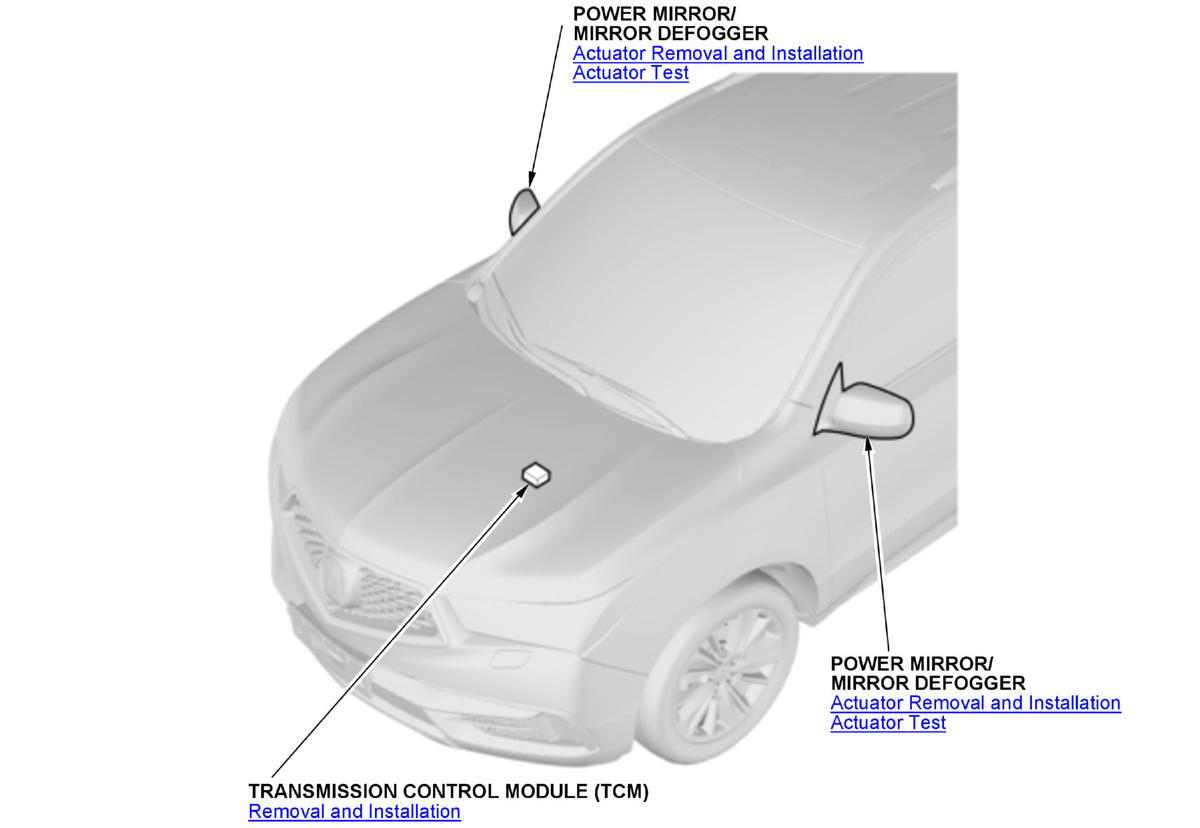

GHH322946Courtesy of HONDA, U.S.A., INC.

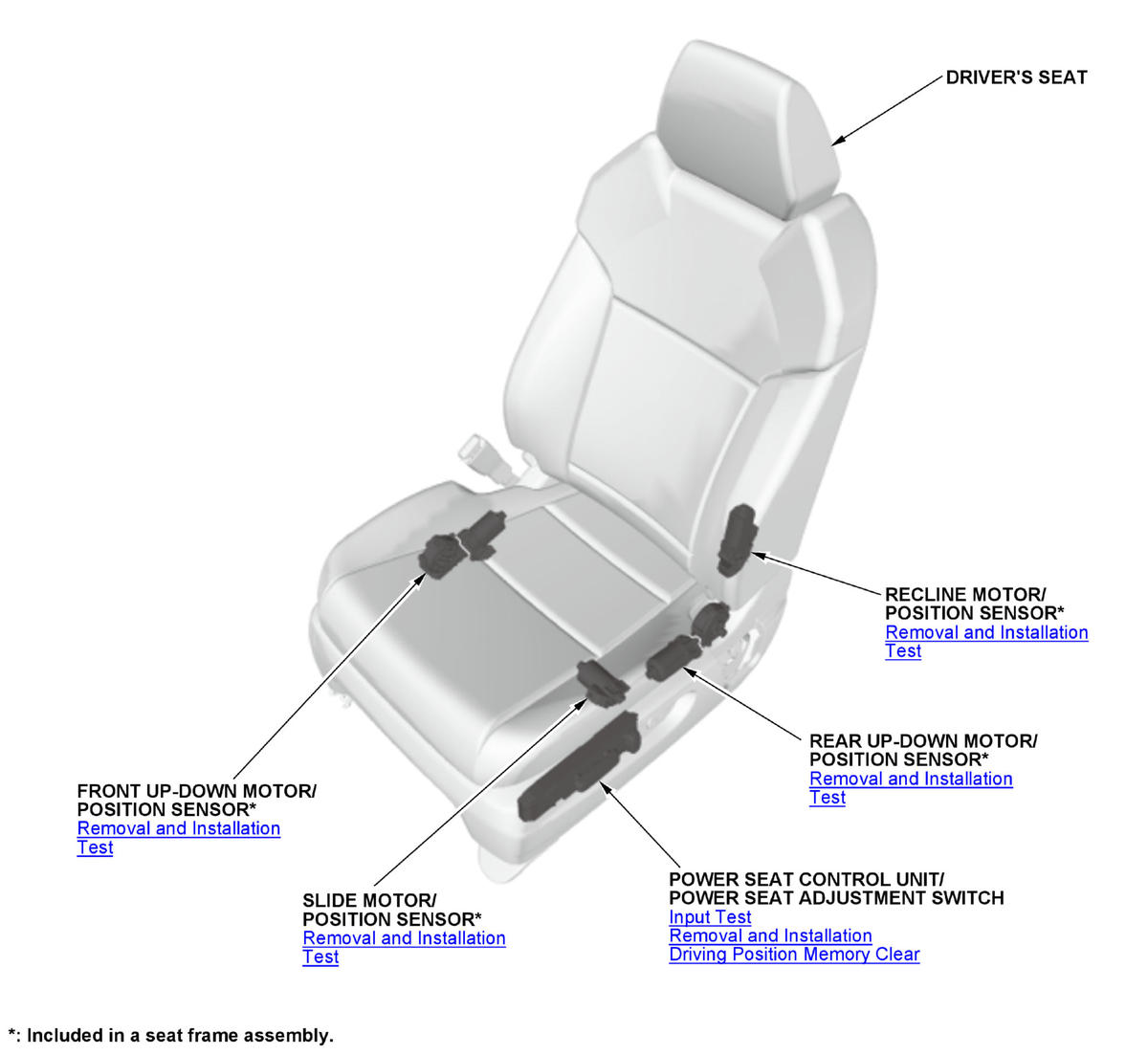

GHH322947Courtesy of HONDA, U.S.A., INC.
GHH322948Courtesy of HONDA, U.S.A., INC.

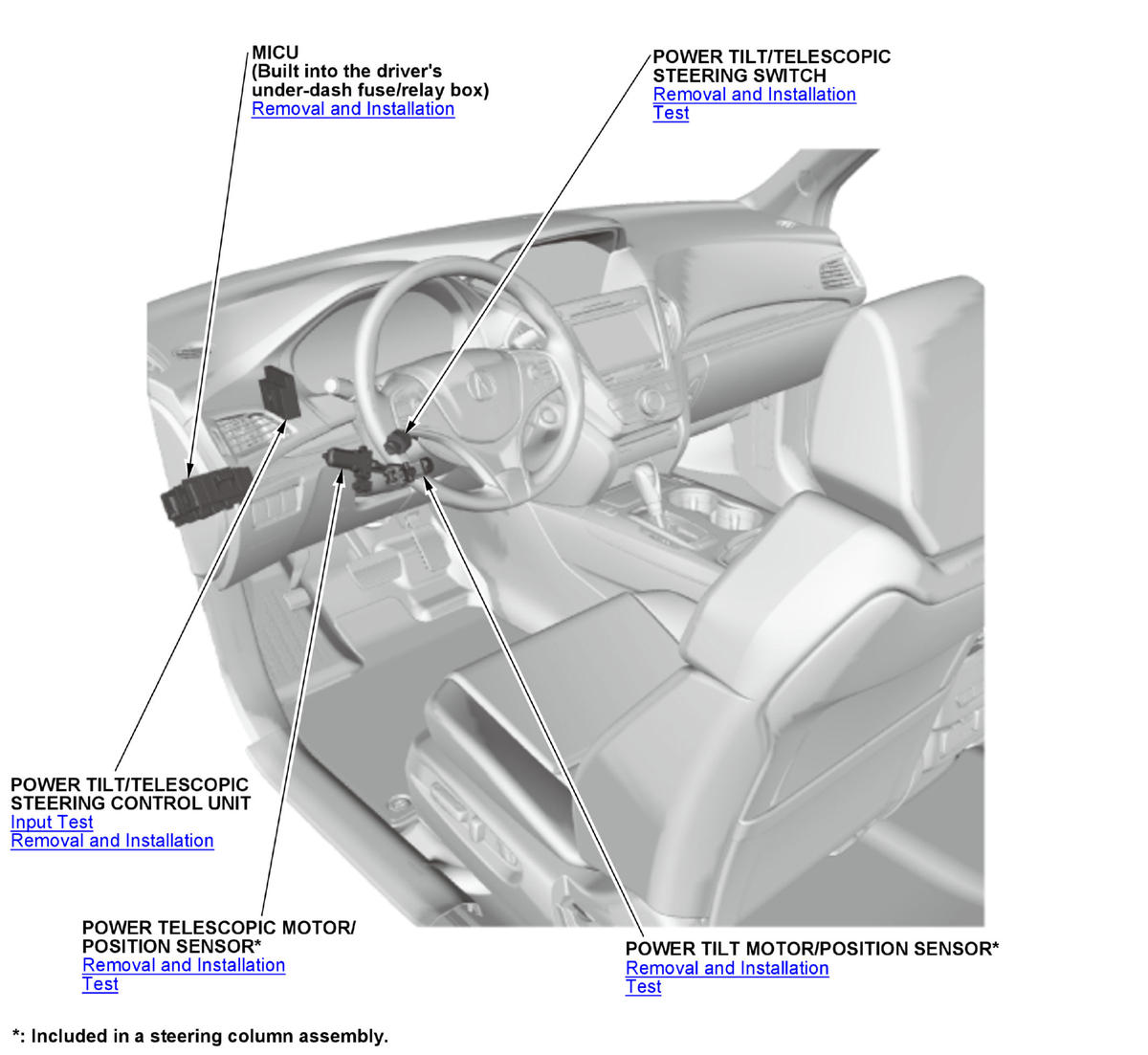

GHH322949Courtesy of HONDA, U.S.A., INC.
