Multiplex Integrated Control System Component Location Index (2017 2018 2019 2020)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

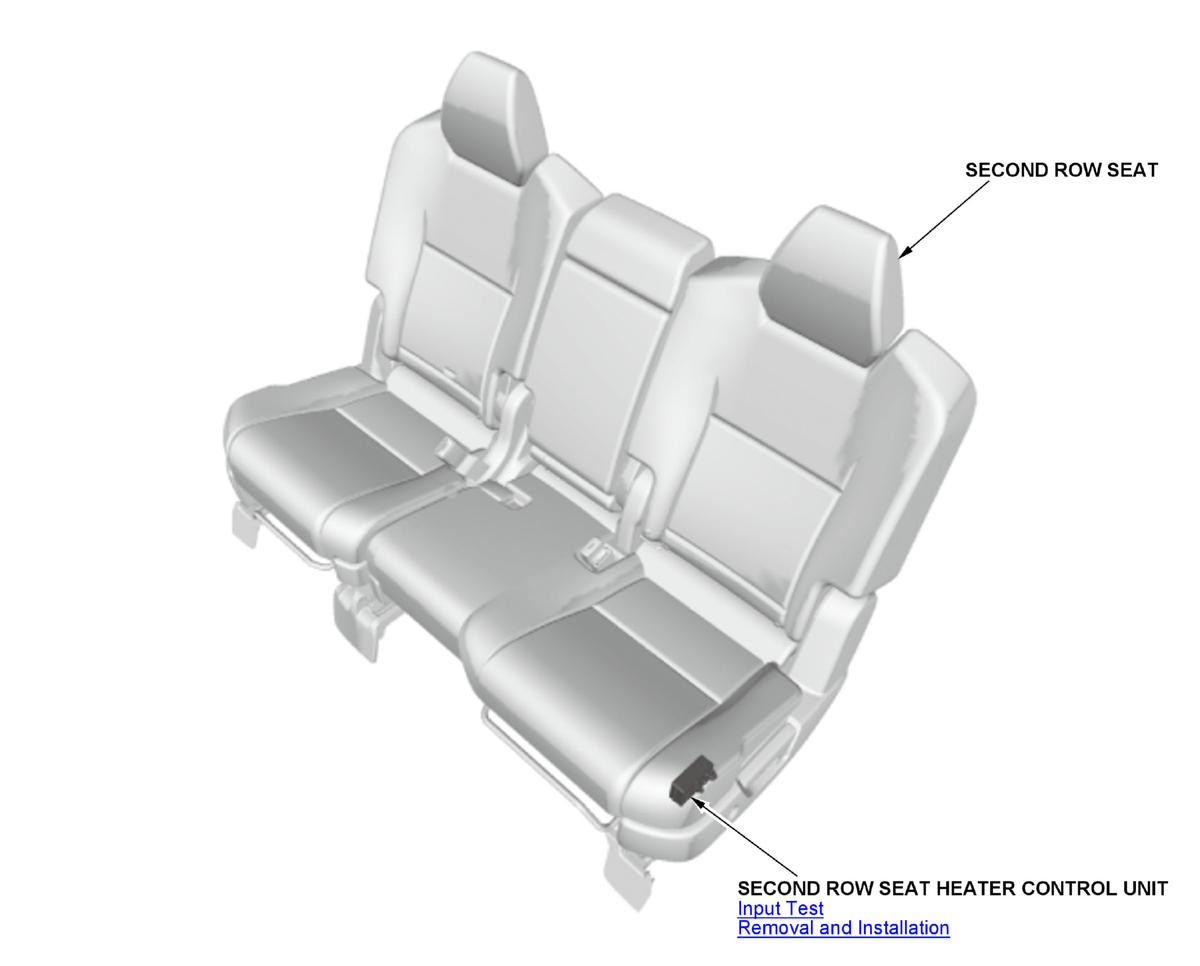

Bench seat

Courtesy of HONDA, U.S.A., INC.

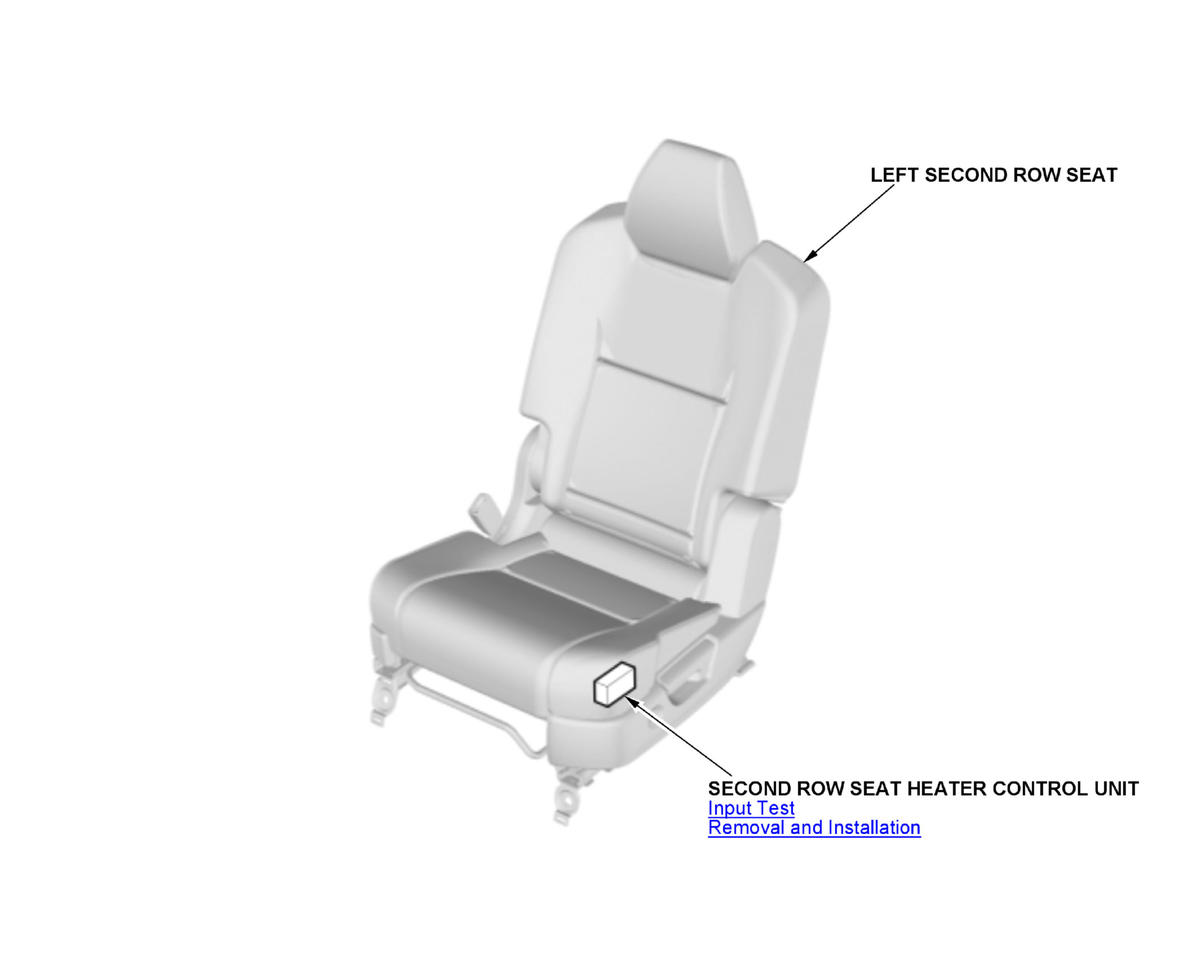

Captain seat

Courtesy of HONDA, U.S.A., INC.
