Multi View Camera Unit Connector for Inputs and Outputs (With Auto Idle Stop System) (2016)

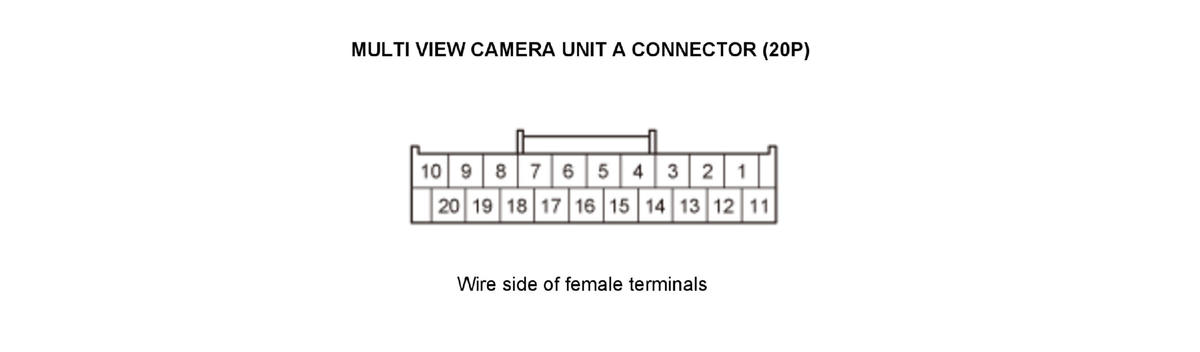

Multi View Camera Unit A Connector (20P) Inputs and Outputs
| Terminal number | Wire color | Terminal name | Description | Signal |
| 1 | ORN | +B BACK UP (DC/DC) | Power supply for backup memory | Battery voltage |
| 2 | GRN | IG1 METER (DC/DC) | Power supply for the multi view camera control unit | Vehicle in ON mode: Battery voltage Vehicle in OFF mode: About 0 V |
| 3 | Not used | Not used | - - - | - - - |
| 4 | Not used | Not used | - - - | - - - |
| 5 | Not used | Not used | - - - | - - - |
| 6 | Not used | Not used | - - - | - - - |
| 7 | Not used | Not used | - - - | - - - |
| 8 | WHT | RETRA MVC | Detects power mirror switch signal | Vehicle in ON mode: Battery voltage Vehicle in OFF mode: About 0 V |
| 9 | Not used | Not used | - - - | - - - |
| 10 | Not used | Not used | - - - | - - - |
| 11 | BLK | SGND | Ground circuit for the multi view camera control unit | Less than 0.2 V at all times |
| 12 | BLK | SGND | Ground circuit for the multi view camera control unit | Less than 0.2 V at all times |
| 13 | Not used | Not used | - - - | - - - |
| 14 | Not used | Not used | - - - | - - - |
| 15 | Not used | Not used | - - - | - - - |
| 16 | Not used | Not used | - - - | - - - |
| 17 | ORN | MVC VID SW | Multi view camera visual switching signal | - - - |
| 18 | GRN | MVC SW | Detects multi view camera switch signal | - - - |
| 19 | PNK | B-CAN_H | B-CAN communication (high) circuit | - - - |
| 20 | ORN | B-CAN_L | B-CAN communication (low) circuit | - - - |

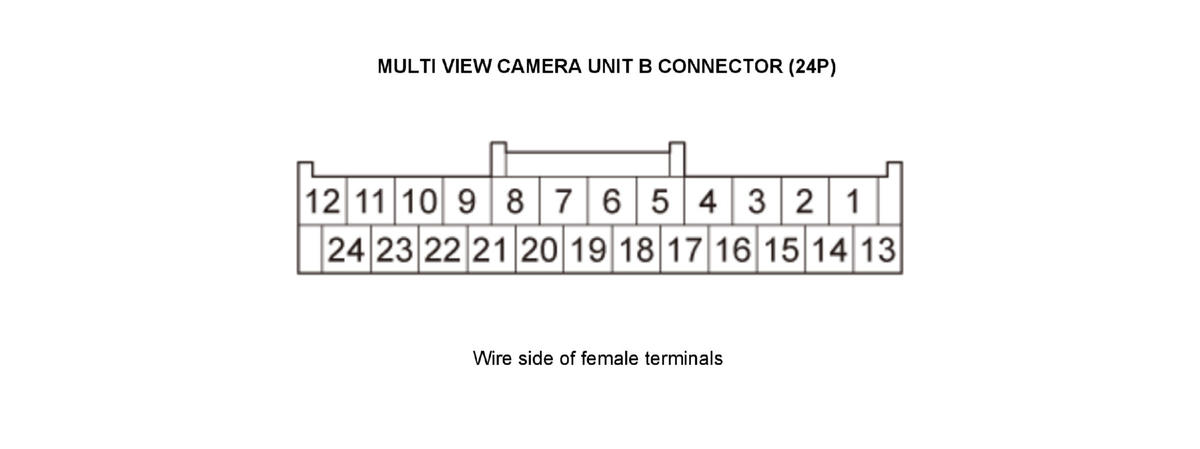

Multi View Camera Unit B Connector (24P) Inputs and Outputs
| Terminal number | Wire color | Terminal name | Description | Signal |
| 1 | BLK | FR CAM VID | Video signal for front camera | - - - |
| 2 | WHT | FR CAM VCC | Power source for front camera | - - - |
| 3 | BLK | RR CAM VID | Video signal for rearview camera | - - - |
| 4 | WHT | RR CAM VCC | Power source for rear view camera | - - - |
| 5 | BLK | R CAM VID | Video signal for right side camera | - - - |
| 6 | WHT | R CAM VCC | Power source for right side camera | - - - |
| 7 | BLK | L CAM VID | Video signal for left side camera | - - - |
| 8 | WHT | L CAM VCC | Power source for left side camera | - - - |
| 9 | BRN | MVC CHK | Control signal for multi view camera | - - - |
| 10 | GRN | MVC VID | Video signal for multi view camera | - - - |
| 11 | Not used | Not used | - - - | - - - |
| 12 | Not used | Not used | - - - | - - - |
| 13 | GRY | FR CAM SH | Shield for terminal No. B1, B2 and B14 | Less than 0.2 V at all times |
| 14 | RED | FR CAM GND | Ground for front camera | Less than 0.2 V at all times |
| 15 | GRY | RR CAM SH | Shield for terminal No. B3, B4 and B16 | Less than 0.2 V at all times |
| 16 | RED | RR CAM RC GND | Ground for rearview camera | Less than 0.2 V at all times |
| 17 | GRY | R CAM SH | Shield for terminal No. B5, B6 and B18 | Less than 0.2 V at all times |
| 18 | RED | R CAM GND | Ground for right side camera | Less than 0.2 V at all times |
| 19 | GRY | L CAM SH | Shield for terminal No. B7, B8 and B20 | Less than 0.2 V at all times |
| 20 | RED | L CAM GND | Ground for left side camera | Less than 0.2 V at all times |
| 21 | RED | MVC GND | Ground for multi view camera | Less than 0.2 V at all times |
| 22 | GRY | MVC SH | Shield for terminals No. B10 and No. B21 | Less than 0.2 V at all times |
| 23 | Not used | Not used | - - - | - - - |
| 24 | Not used | Not used | - - - | - - - |
