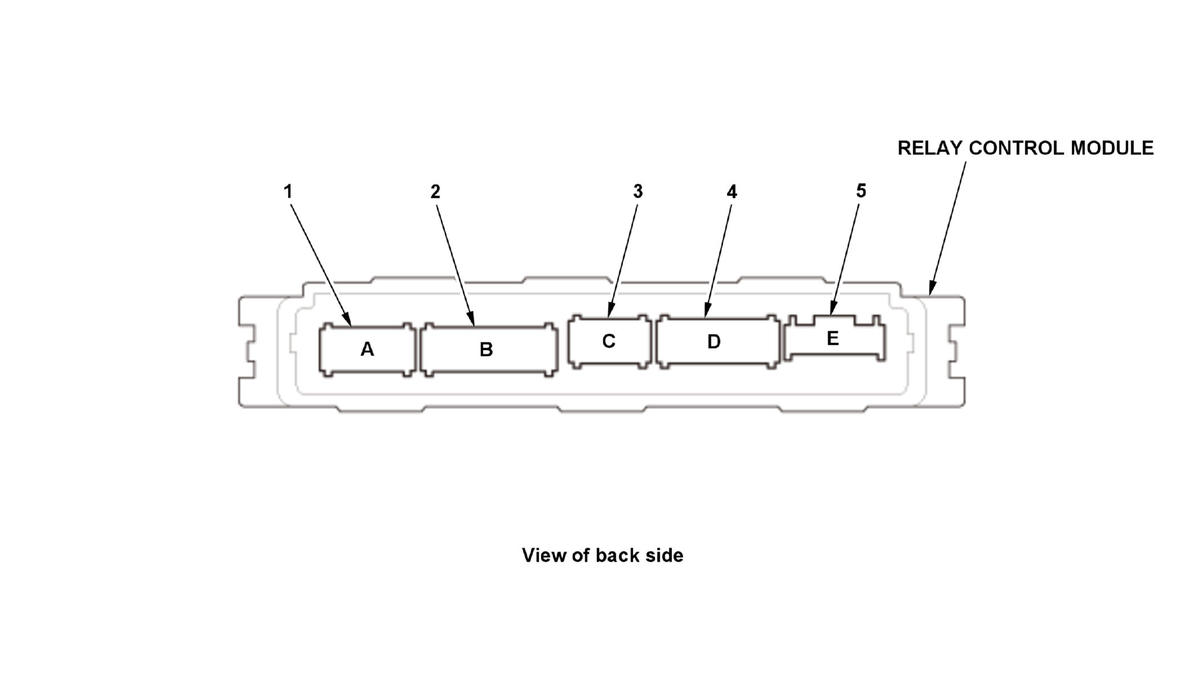

Under-hood Fuse/Relay Box (Relay Control Module Part)
Under-hood Fuse/Relay Box (Relay Control Module Part) Legend
| Socket | Ref | Terminals | Connects to | Notes |
|---|---|---|---|---|
| Relay control module connector A | 1 | 10 | Right engine compartment wire harness | |
| Relay control module connector B | 2 | 16 | Right engine compartment wire harness | |
| Relay control module connector C | 3 | 8 | Right engine compartment wire harness | |
| Relay control module connector D | 4 | 14 | Right engine compartment wire harness | |
| Relay control module connector E | 5 | 4 | Right engine compartment wire harness |
