Keyless Access Control Unit: Installation

NOTE:

If the keyless access control unit is replaced, do the keyless access registration . If the original keyless access control unit is installed, confirm that all systems work properly.

  1. Keyless Access Control Unit - Install

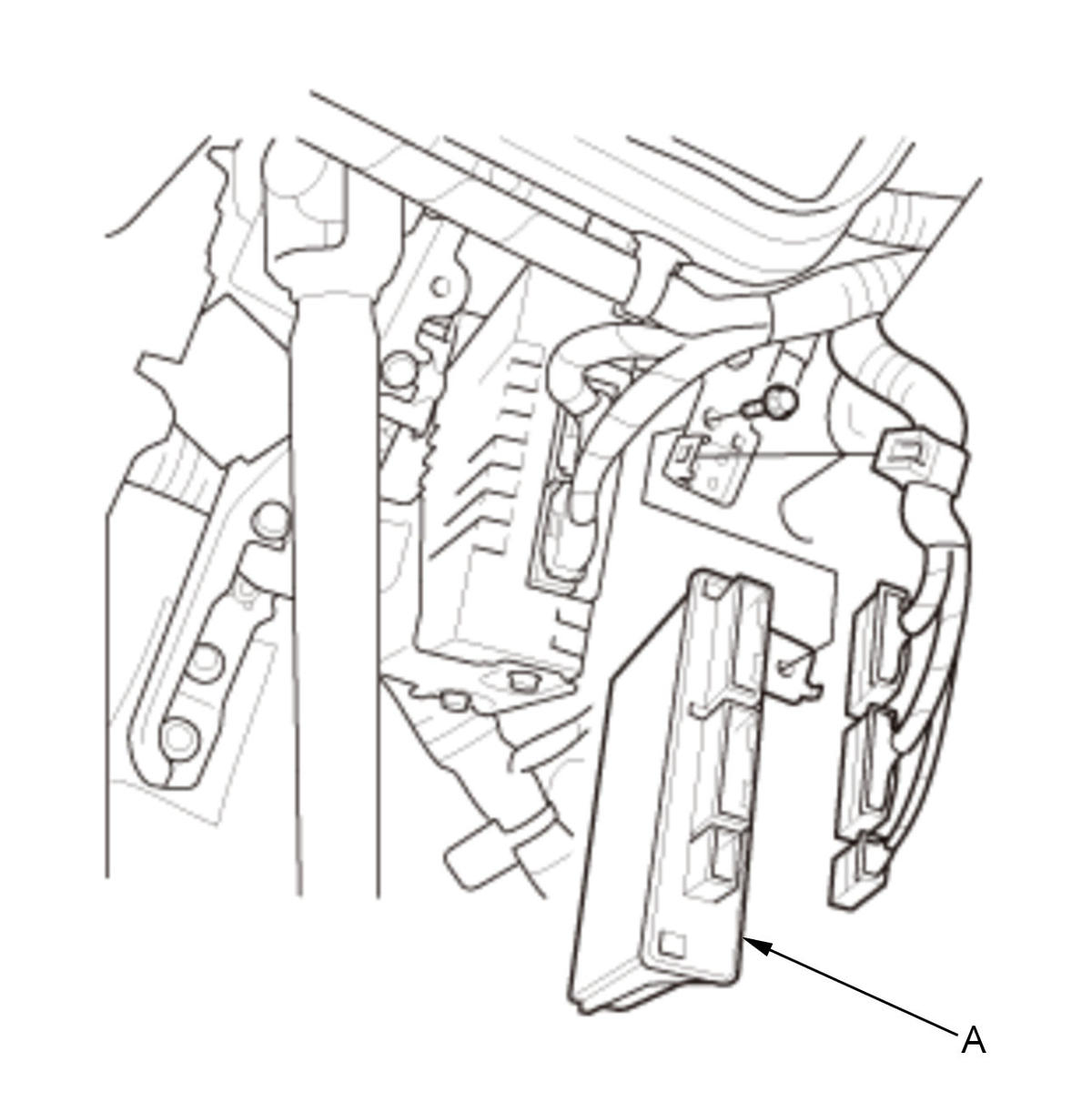

    GHH474045Courtesy of HONDA, U.S.A., INC.
    		 1. Install the keyless access control unit (A) to the bracket.

    2. Connect the keyless access control unit connectors.

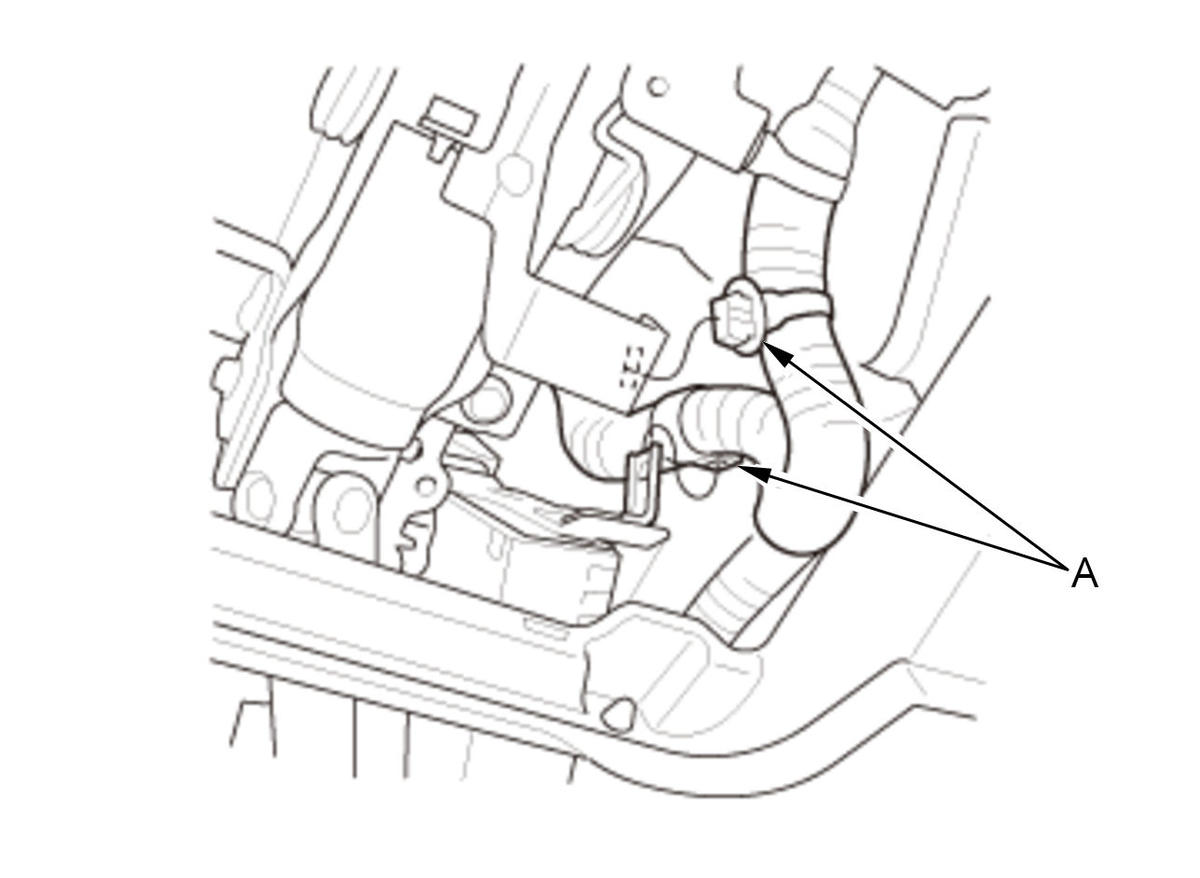

    GHH474046Courtesy of HONDA, U.S.A., INC.
    		 3. Install the harness clips (A).
  2. Driver's Dashboard Lower Cover - Install
    1. Install the driver's dashboard lower cover .
  3. Keyless Access System - Registration
    1. After replacement, register the keyless access control unit .
