Keyless Access Power Control Unit: Installation

NOTE:

If the power control unit is replaced, do the keyless access registration . If the original power control unit is installed, confirm that all systems work properly.

  1. Power Control Unit - Install

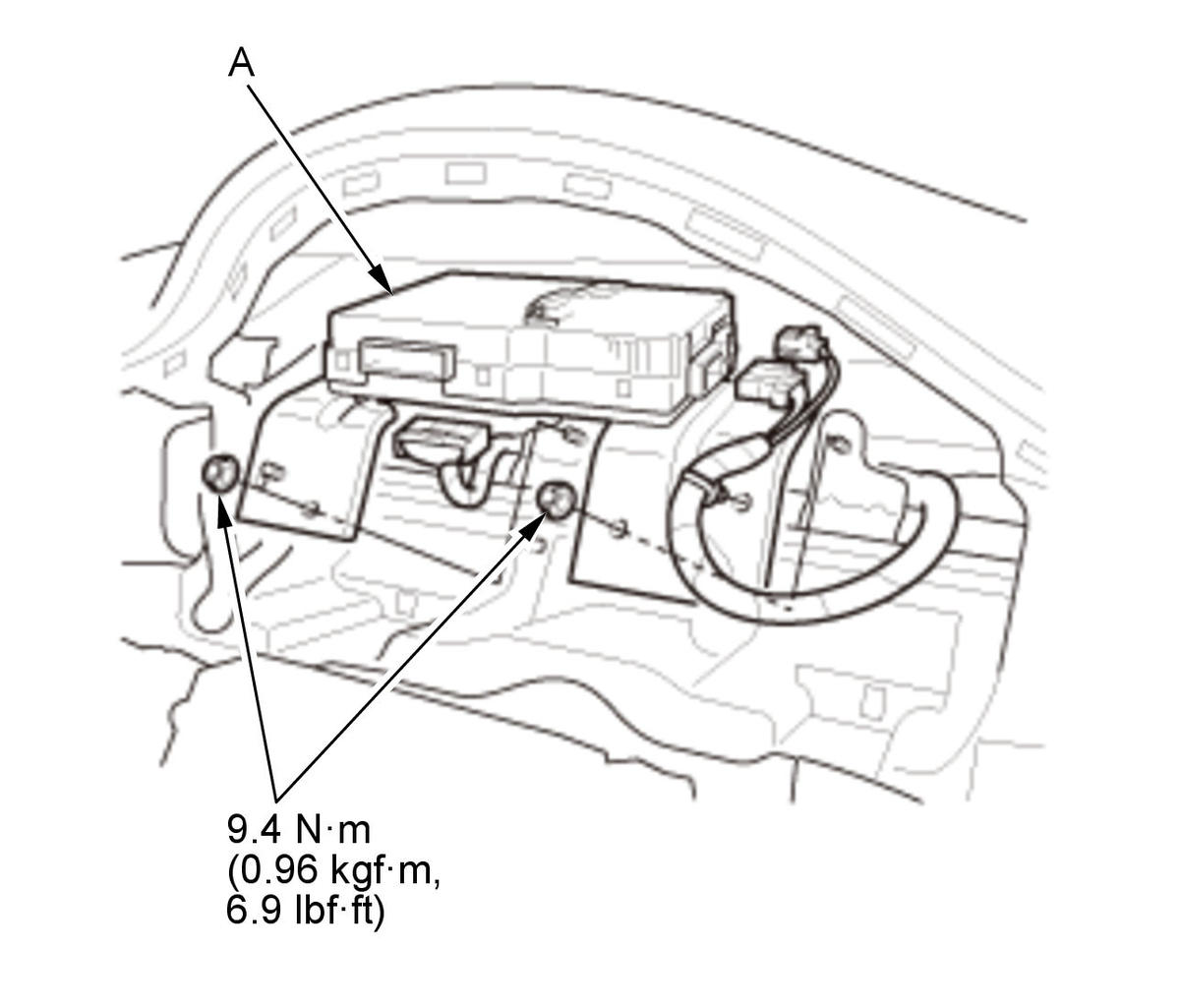

    GHH474063Courtesy of HONDA, U.S.A., INC.
    		 1. Connect the power control unit connectors.

    2. Install the power control unit (A) to the steering hanger beam.
  2. GPS antenna - Install
    1. Install the GPS antenna .
  3. Gauge Control Module - Install
    1. Install the gauge control module .
  4. Keyless Access System - Registration
    1. After replacement, register the power control unit .
