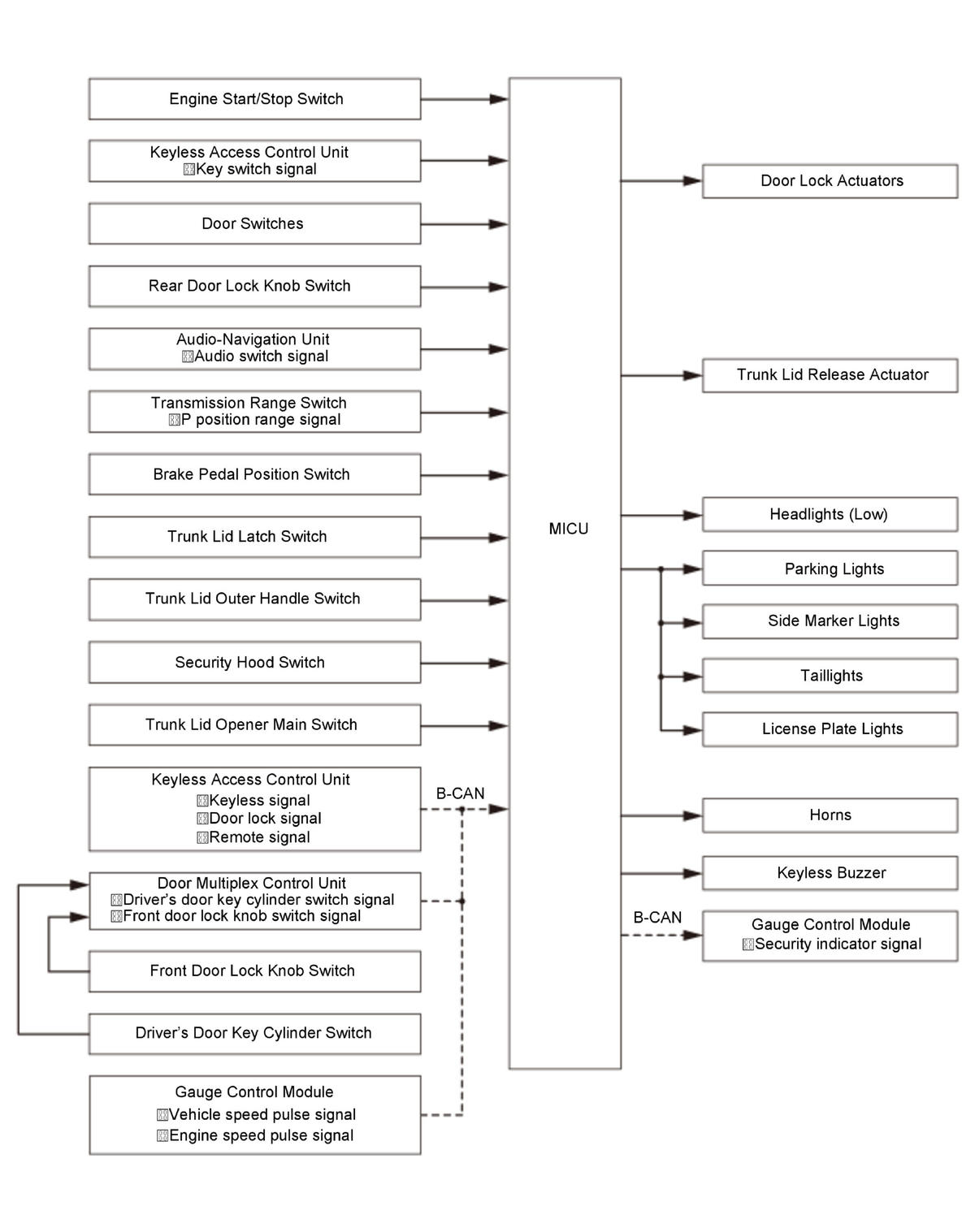

Keyless/Power Door Locks/Security - System Diagram (2013 2014 2015)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
