Multiplex Integrated Control System Component Location Index (2016 2017 2018)

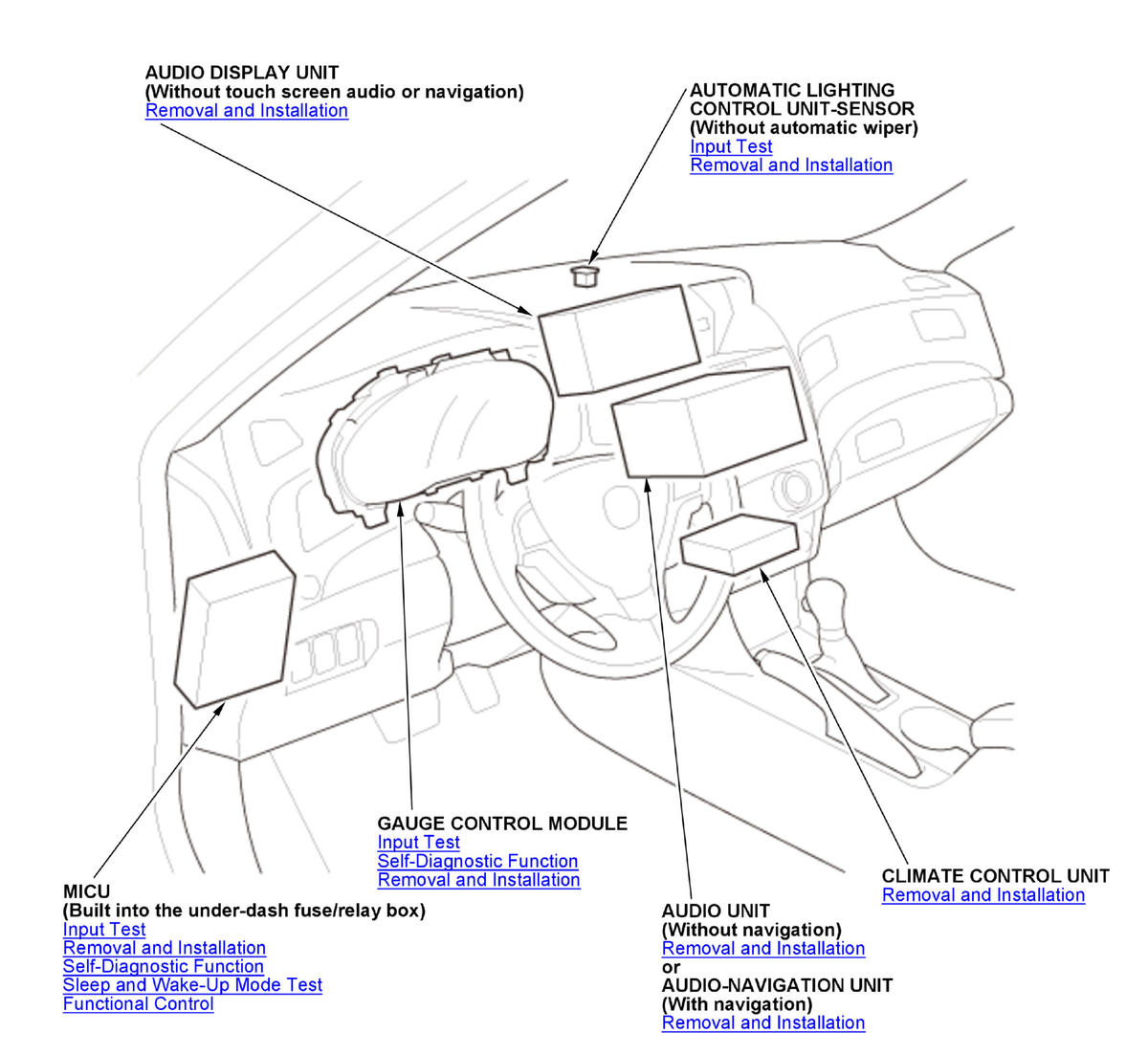

GHH471620Courtesy of HONDA, U.S.A., INC.

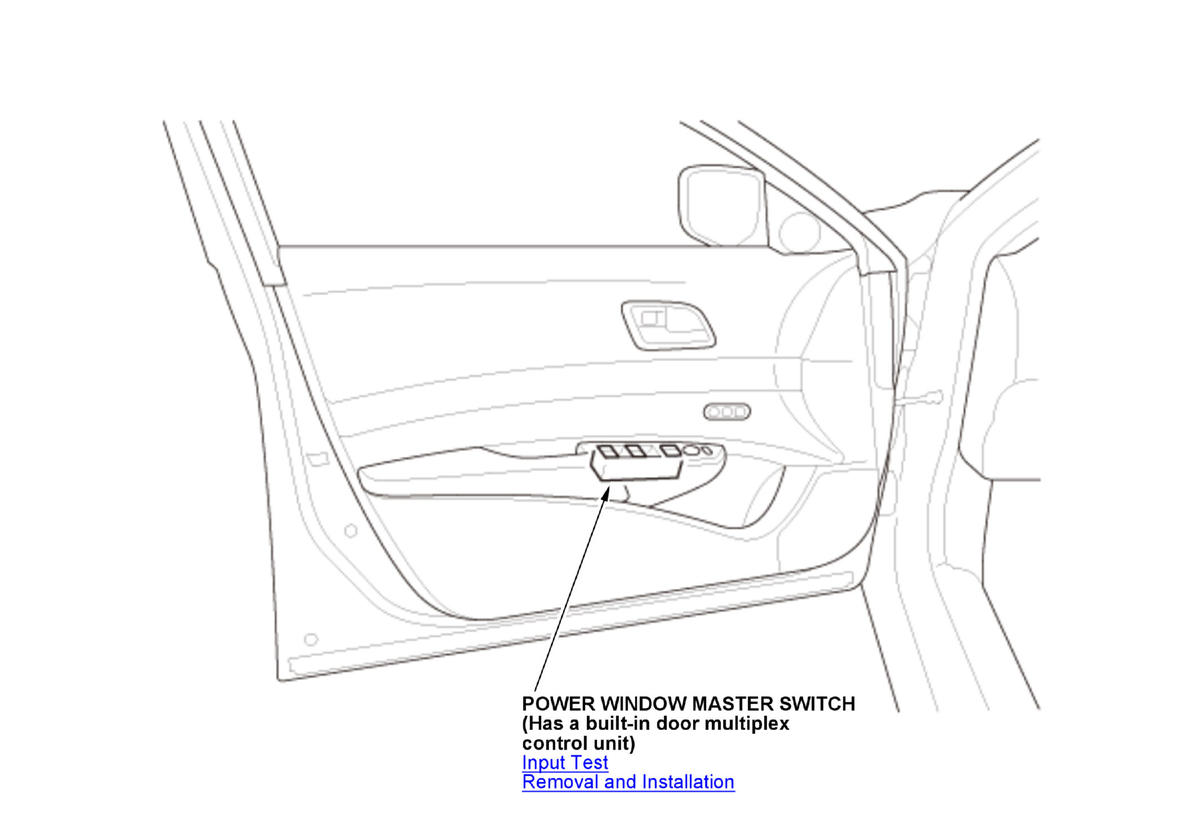

GHH471621Courtesy of HONDA, U.S.A., INC.

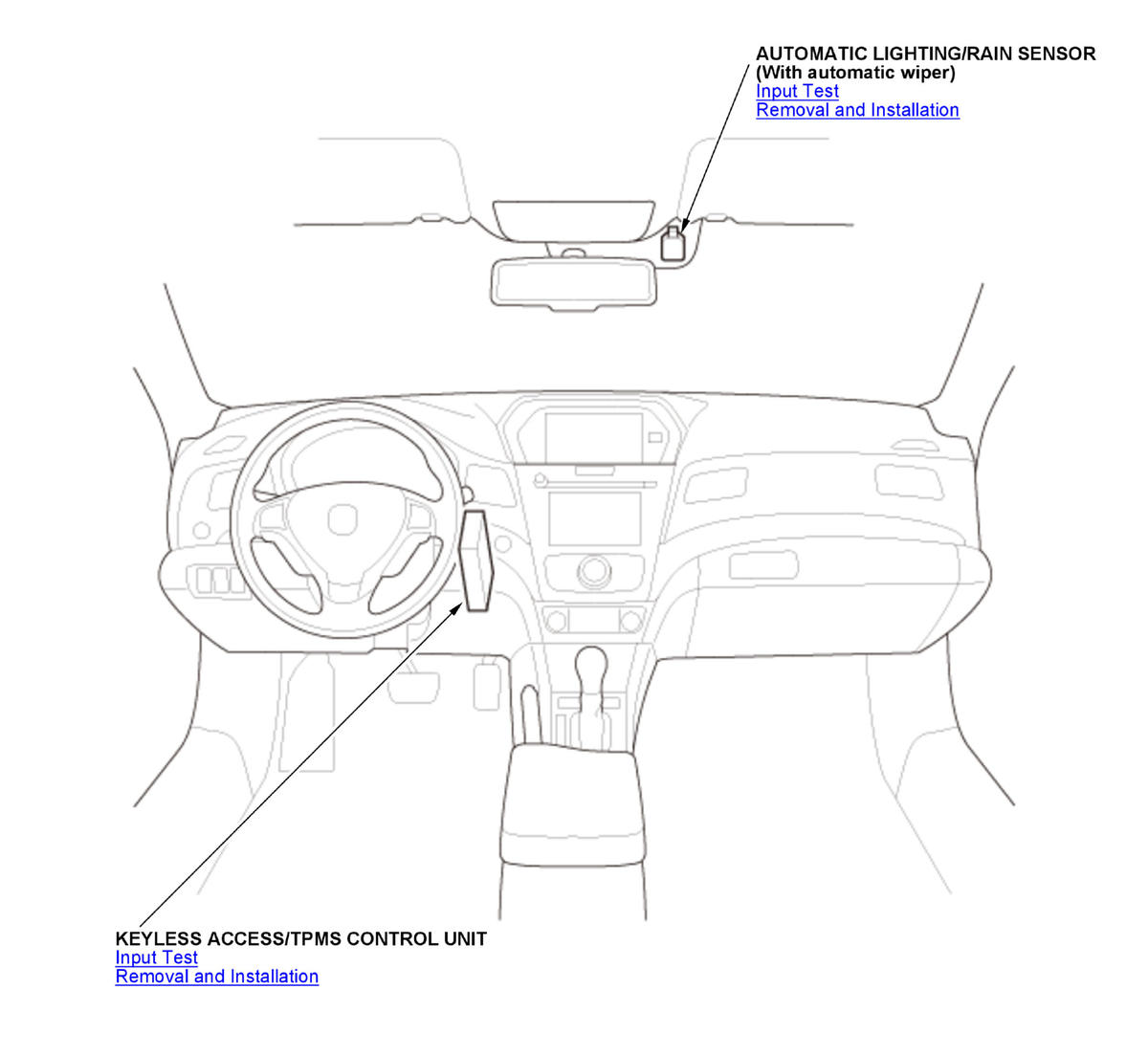

GHH471622Courtesy of HONDA, U.S.A., INC.

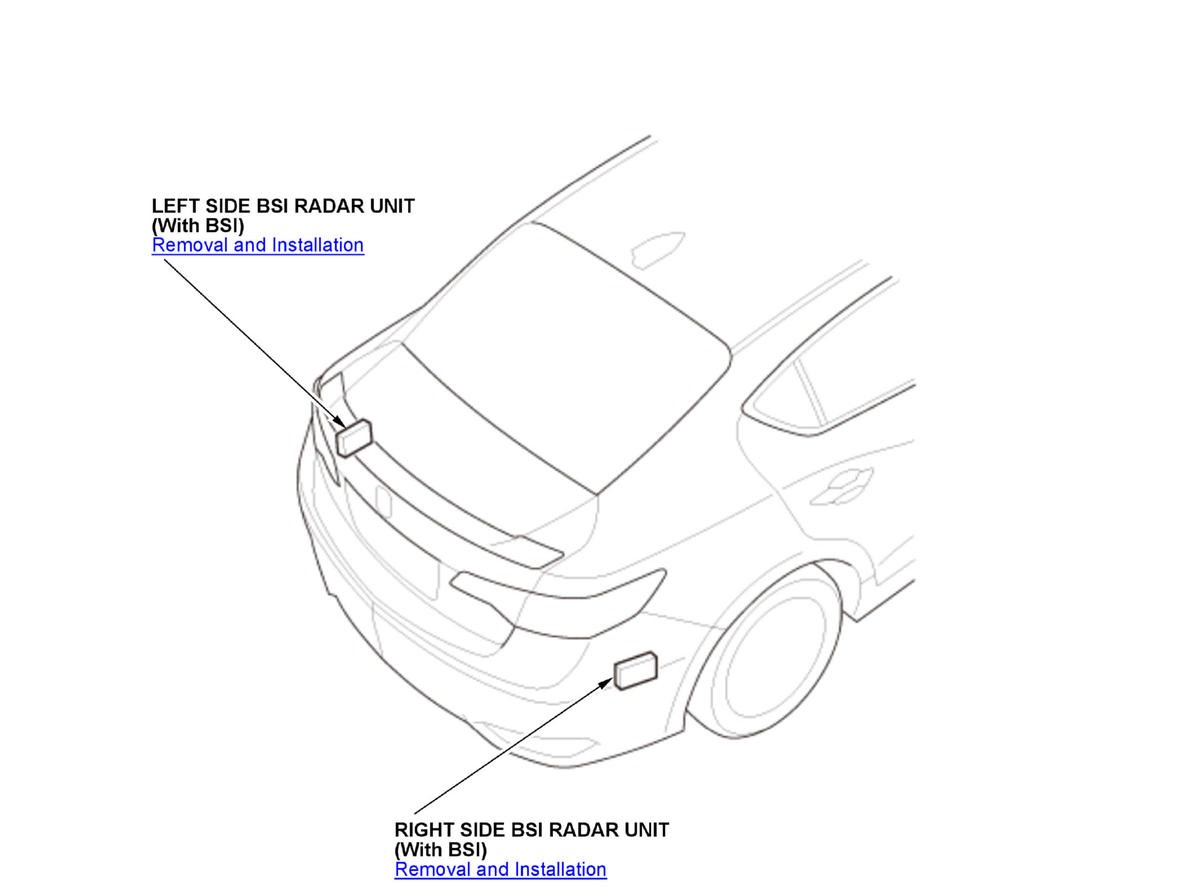

GHH471623Courtesy of HONDA, U.S.A., INC.

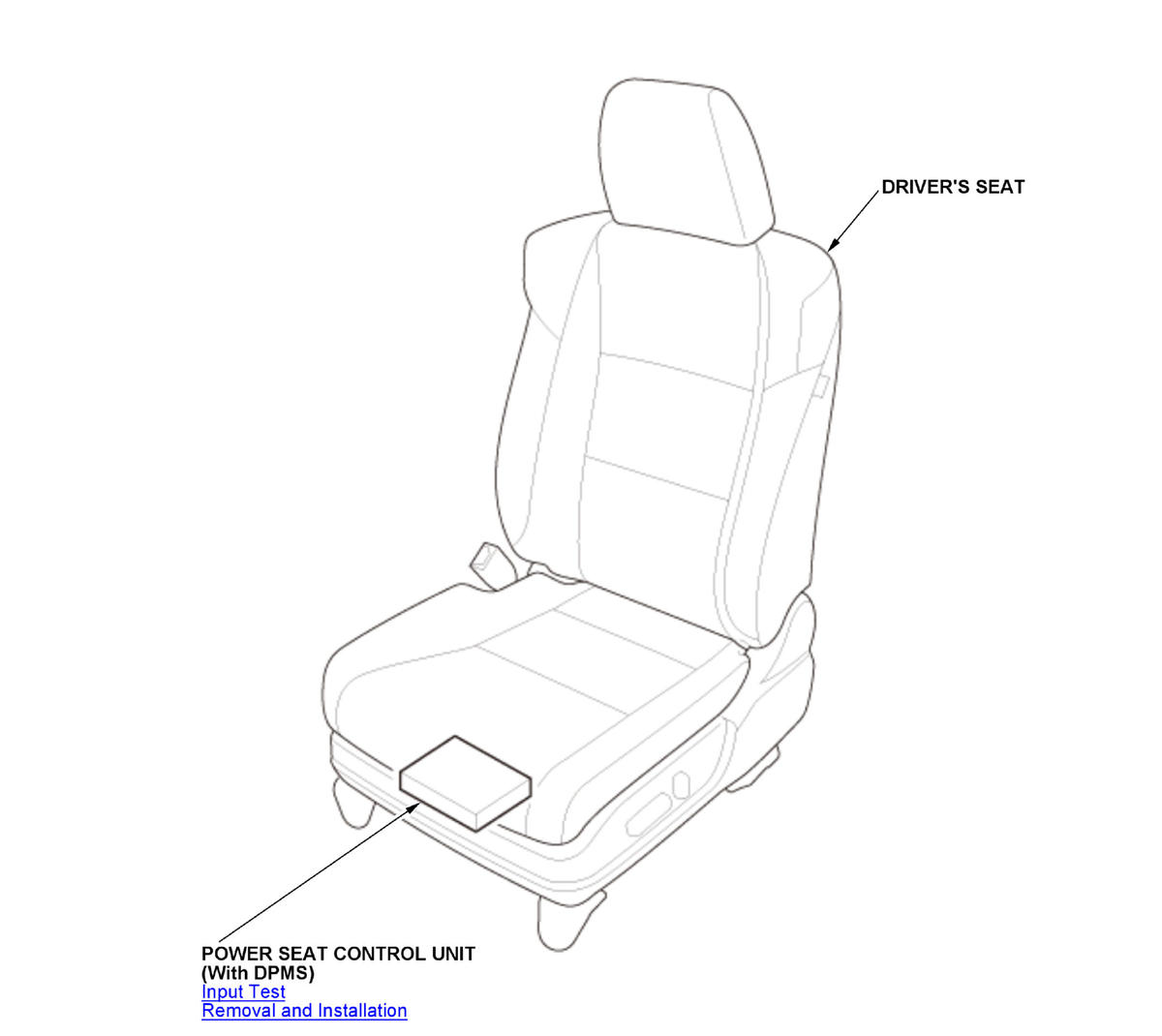

GHH471624Courtesy of HONDA, U.S.A., INC.
