Removal and Installation

NOTE:

If the keyless access/TPMS control unit is replaced, do the keyless access registration and memorizing the tire pressure sensor ID . If the original keyless access/TPMS control unit is installed, confirm that all systems work properly.

  1. Driver's Dashboard Lower Cover - Remove
  2. Keyless Access/TPMS Control Unit - Remove

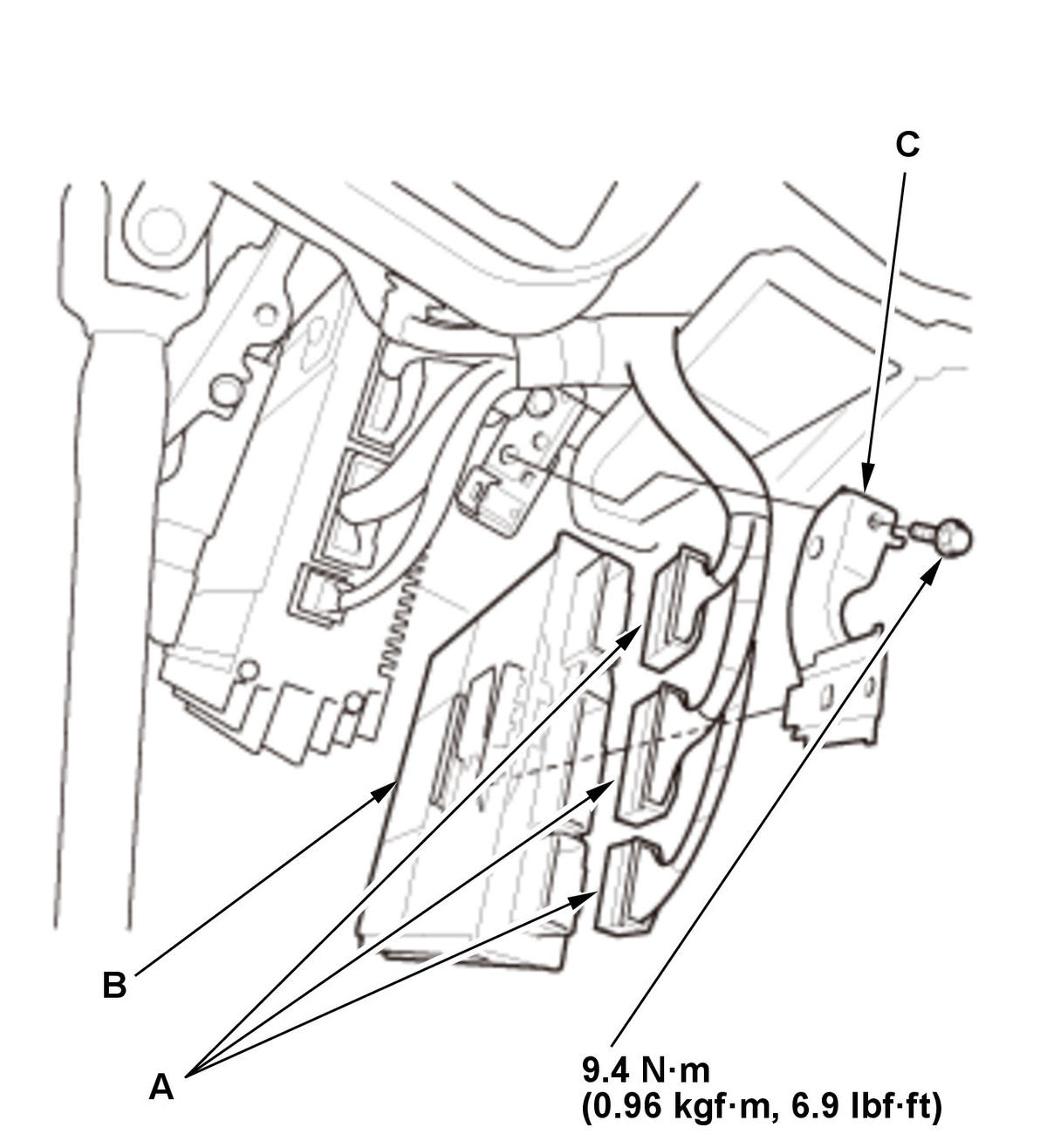

    GHH474069Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the keyless access/TPMS control unit connectors (A).

    2. Remove the keyless access/TPMS control unit (B) with the bracket (C).

    3. Remove the keyless access/TPMS control unit from the bracket.
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
  4. Keyless Access System - Register
  5. The Tire Pressure Sensor ID - Memorize
