Electronic Throttle Control (2013 2014 2015)
Overview
The ETCS opens and closes the throttle valve by electronic control. This system consists of a throttle actuator built into the throttle body, throttle valve, throttle angle sensor, acceleration pedal position sensor, ETCS driver built into the PCM and ETCS relay.

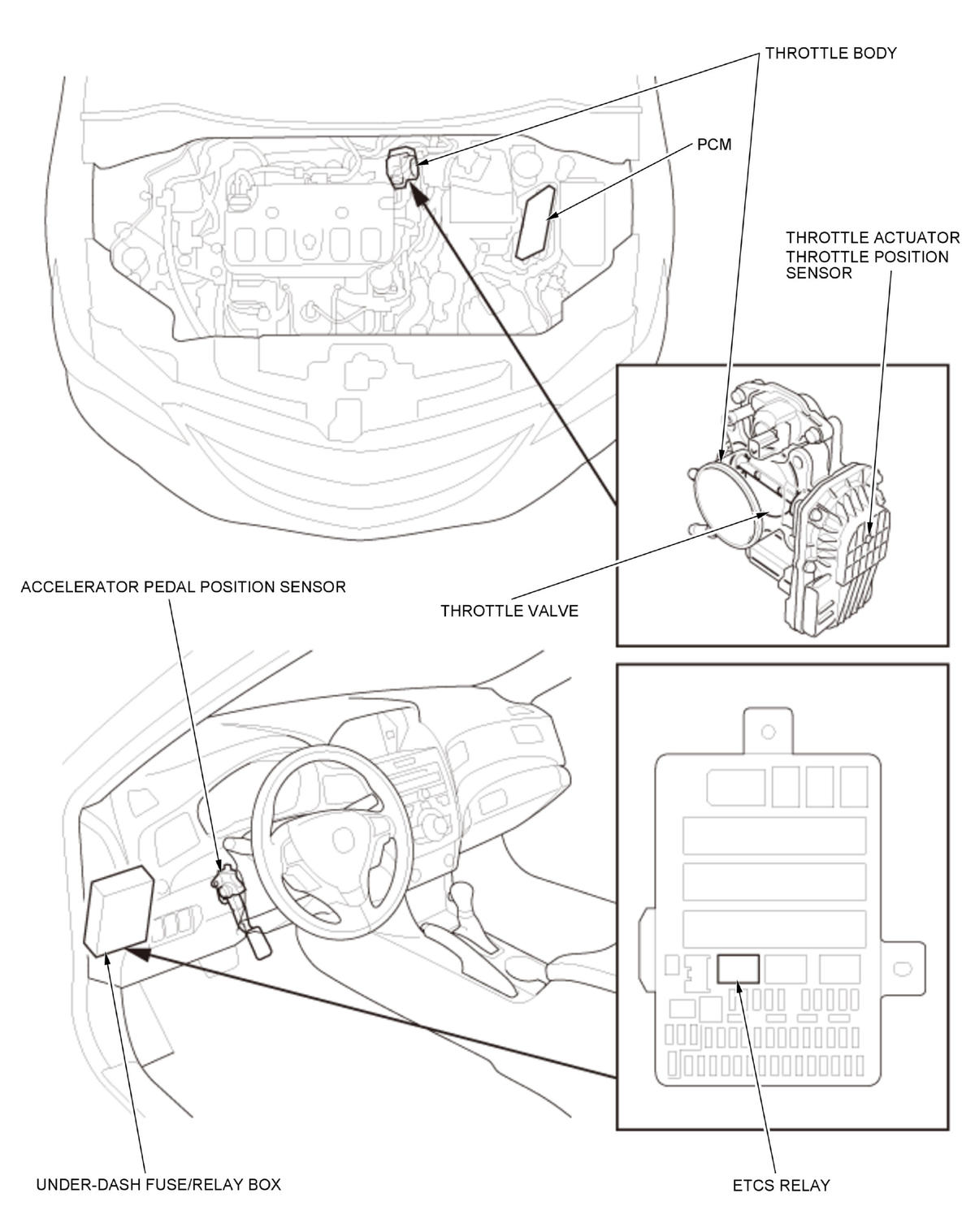

2.0 L models

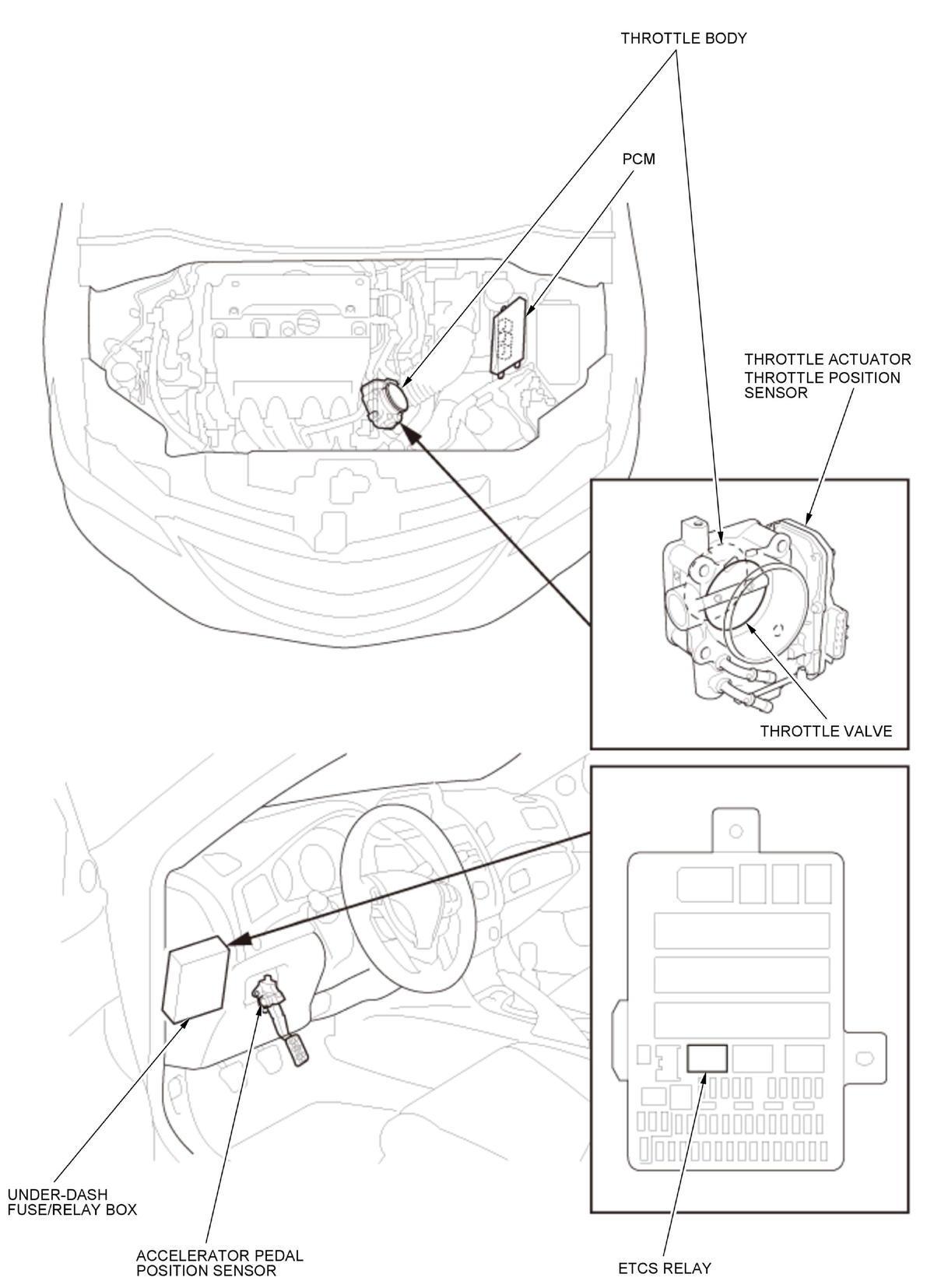

2.4 L models
Electronic throttle control system is a system that opens and closes the throttle valve by electronic control, it has various functions, such as follows:
Idle Control Function
Wherein the throttle position is controlled to optimize idle speed depending on the engine loads when idling.
Accelerator Control Function
Where the target throttle position is calculated by the throttle position sensor signals to control the throttle valve when the accelerator pedal is pressed.
VTEC System Coordination Control Function
Where switch for VTEC is operated smoothly by controlling the throttle valve in coordination with the VTEC.
Transmission Coordination Control Function
Where the throttle valve is controlled in coordination with the transmission to reduce shift time.
VSA Control Function
Where the throttle position is controlled based on a signal from the VSA modulator control unit.
Fail Safe Function
Where the throttle valve is controlled to avoid danger even in the event of a malfunction.

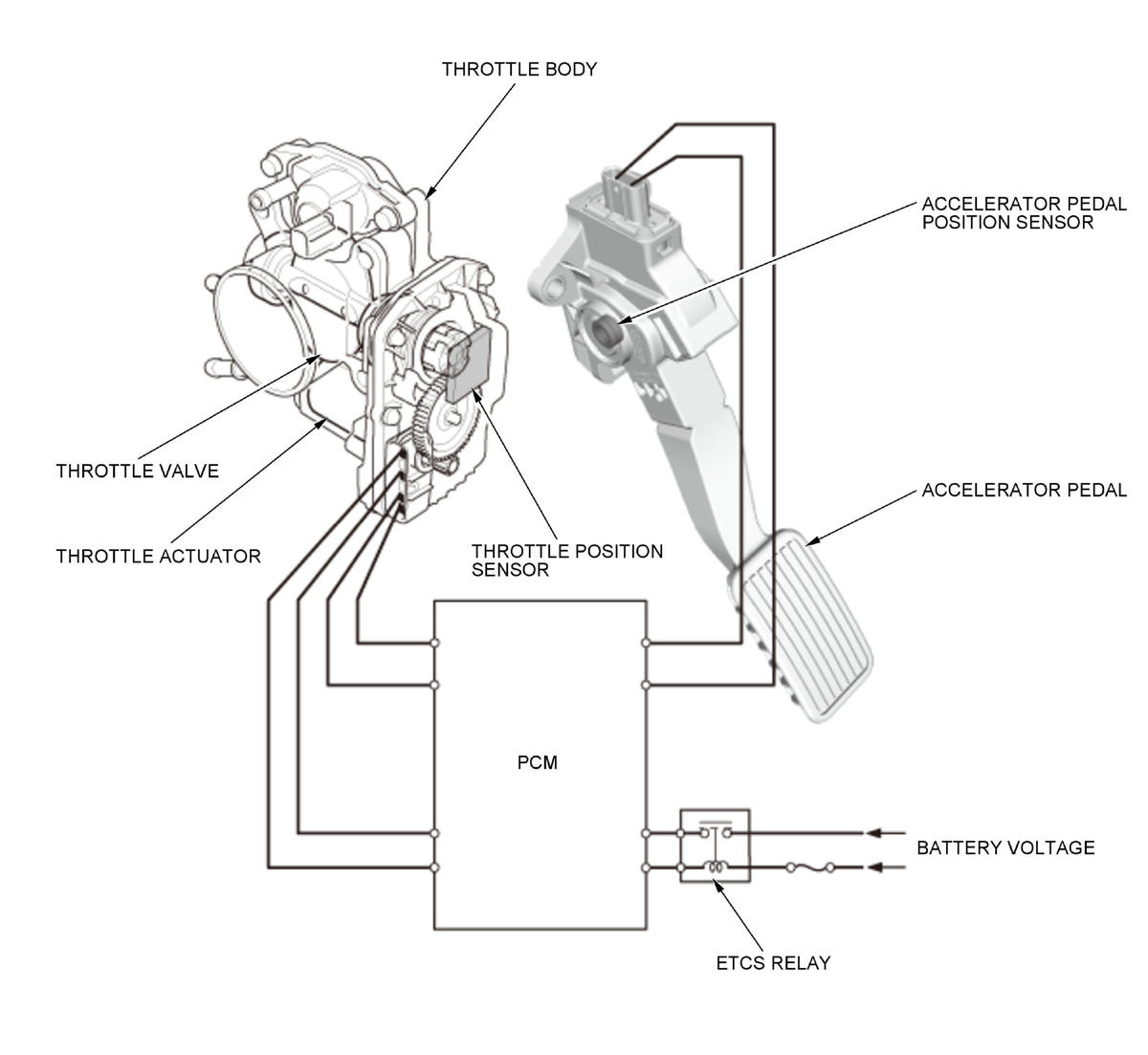

Control
When the accelerator pedal is operated, accelerator pedal position sensors are driven and the accelerator pedal position is detected. The accelerator pedal position is delivered to the PCM, and the PCM drives the throttle actuator in the throttle body. Throttle position is detected by the throttle position or TP sensors in the throttle body and delivered to the PCM. The PCM drives the throttle actuator to control the throttle position, during idling, when the VTEC system switches, when shifting, during VSA control, and when necessary as well as based on the signals from the accelerator pedal position sensors.
