Keyless/Power Door Locks/Security System Circuit Diagram (2016 2017)

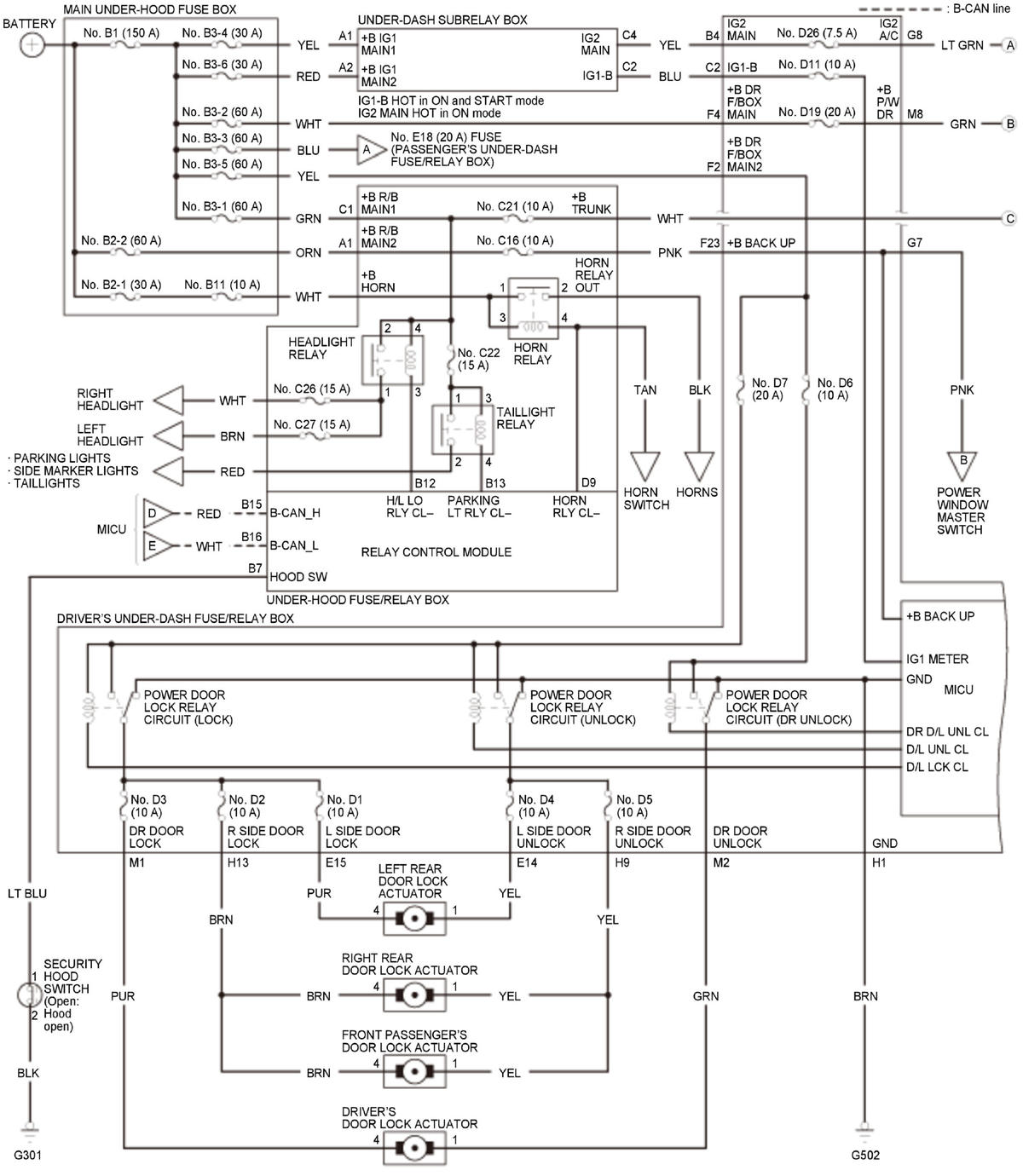

GHH350949Courtesy of HONDA, U.S.A., INC.

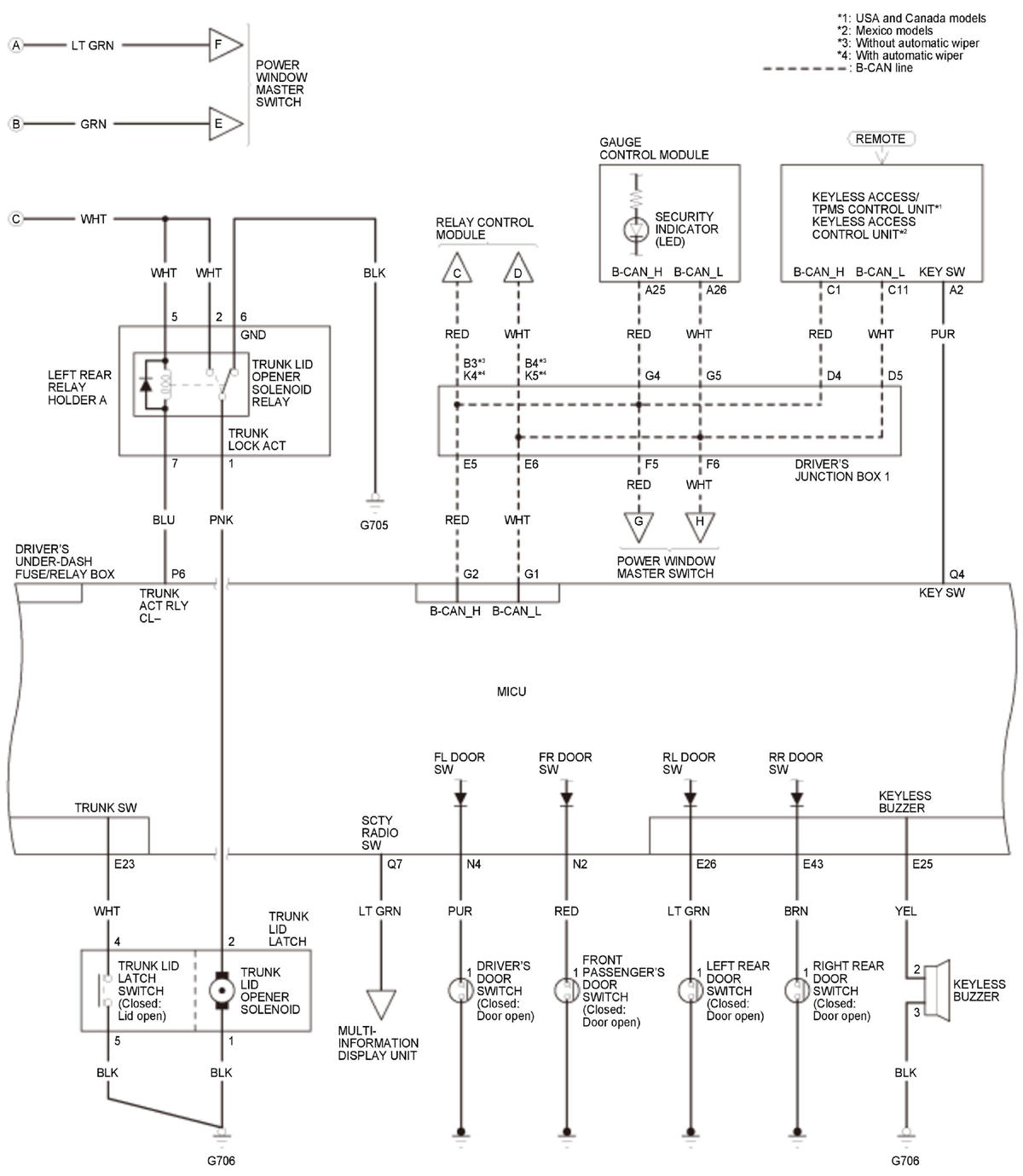

GHH350950Courtesy of HONDA, U.S.A., INC.

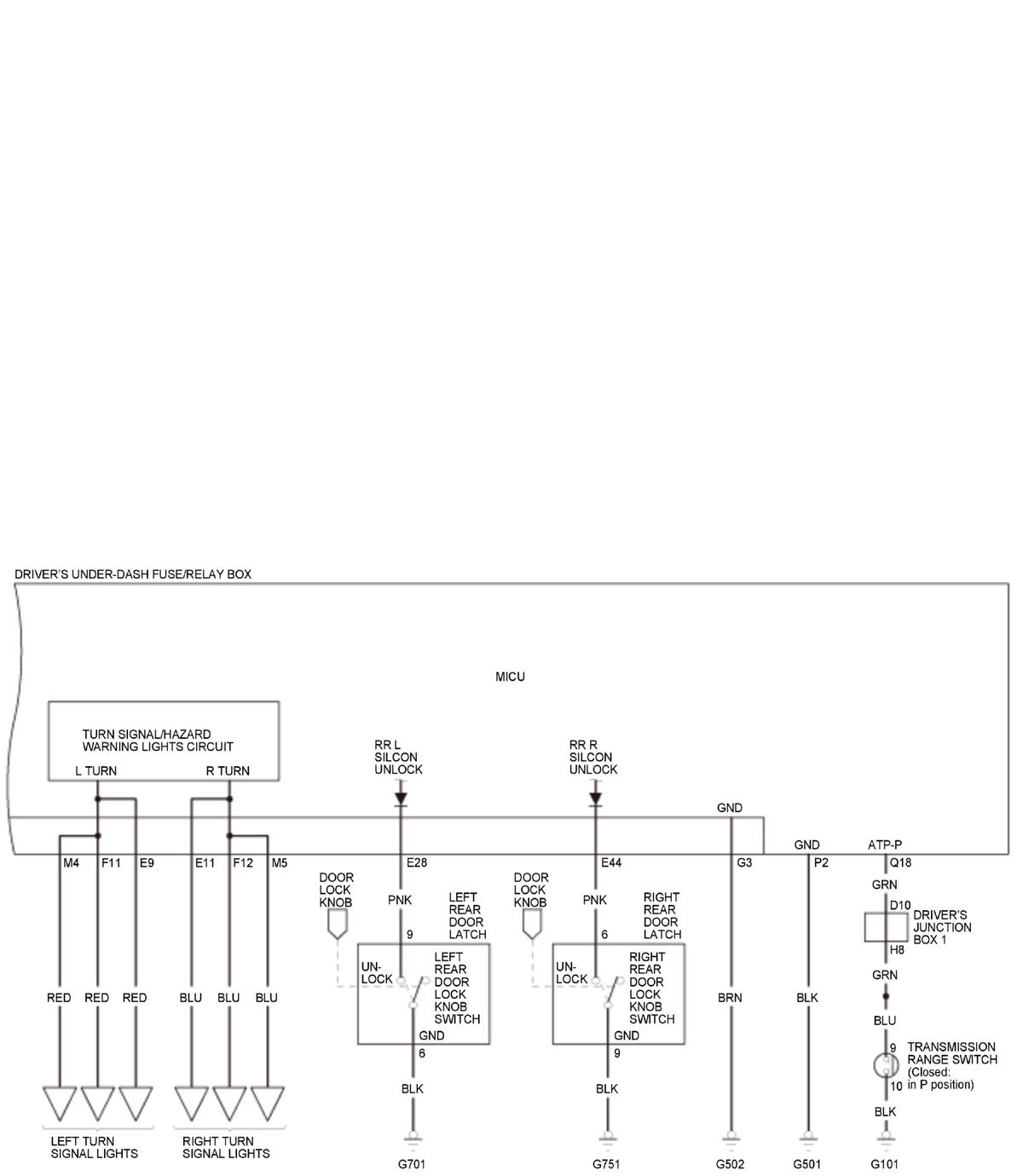

GHH350951Courtesy of HONDA, U.S.A., INC.

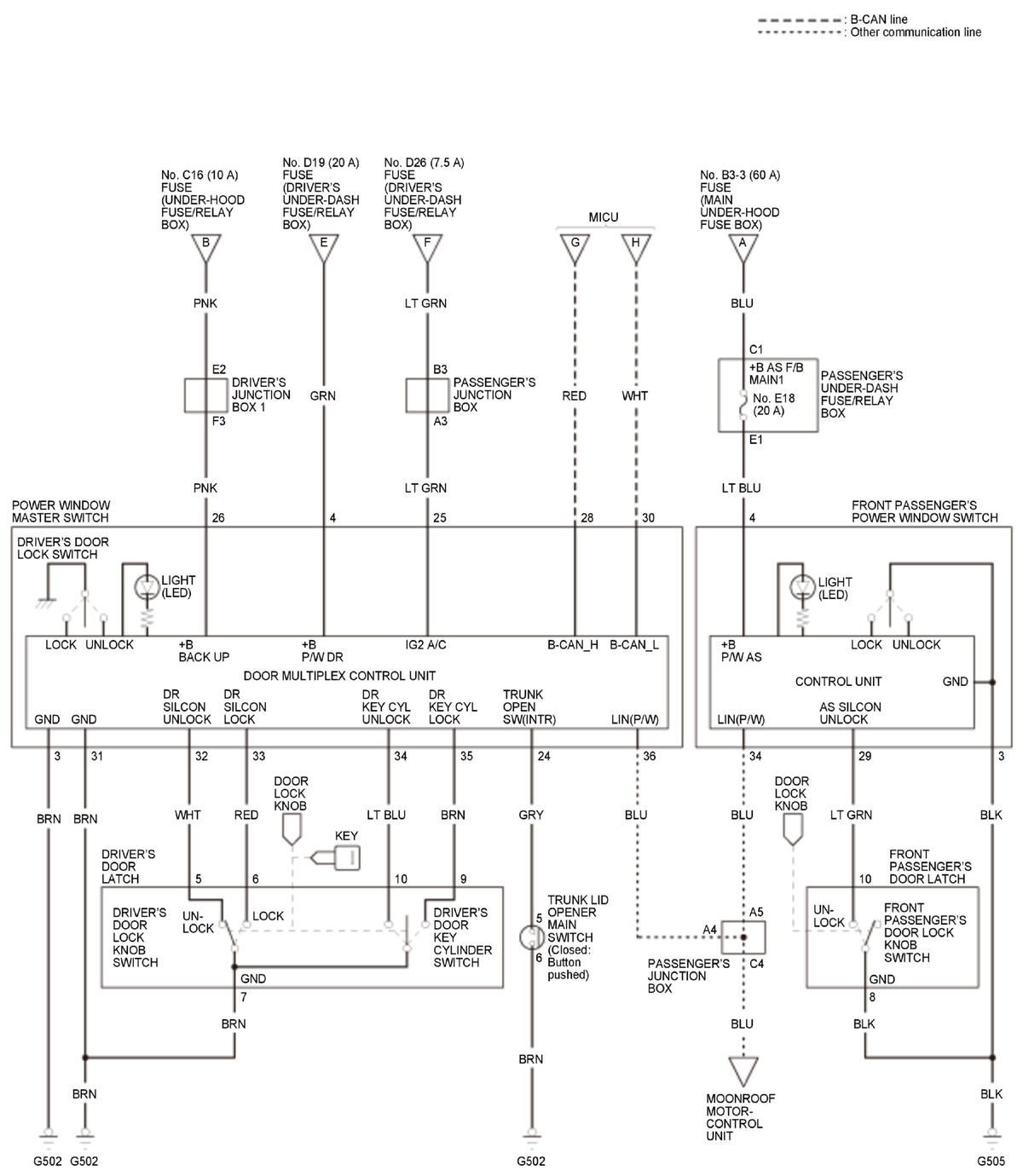

GHH350952Courtesy of HONDA, U.S.A., INC.
