Keyless/Power Door Locks/Security System Component Location Index (6-Speed A/T) (2014 2015 2016 2017)

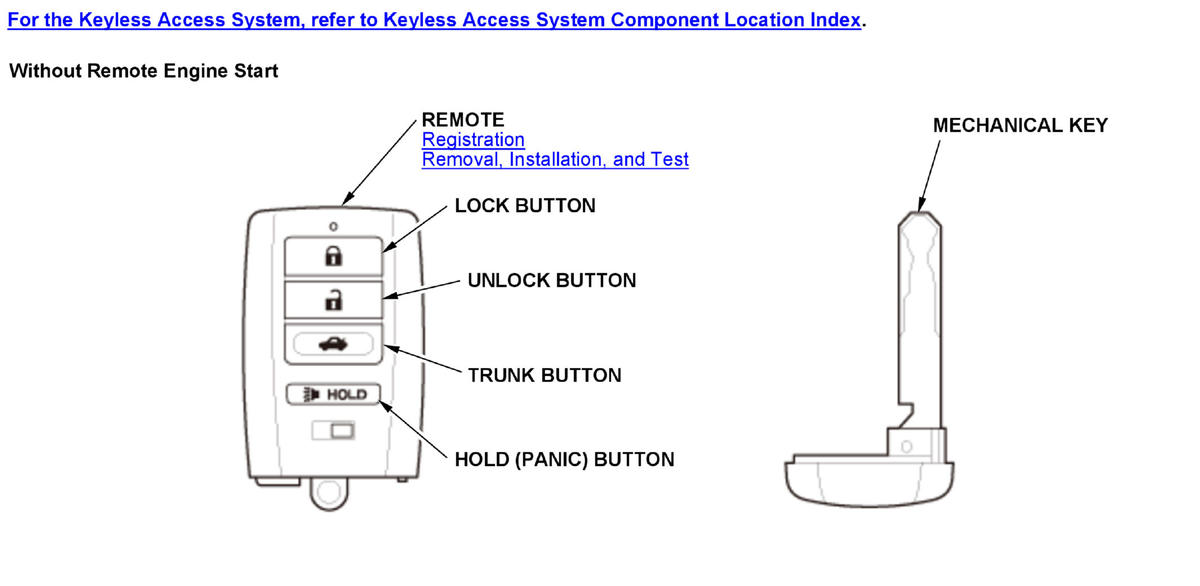

GHH350979Courtesy of HONDA, U.S.A., INC.

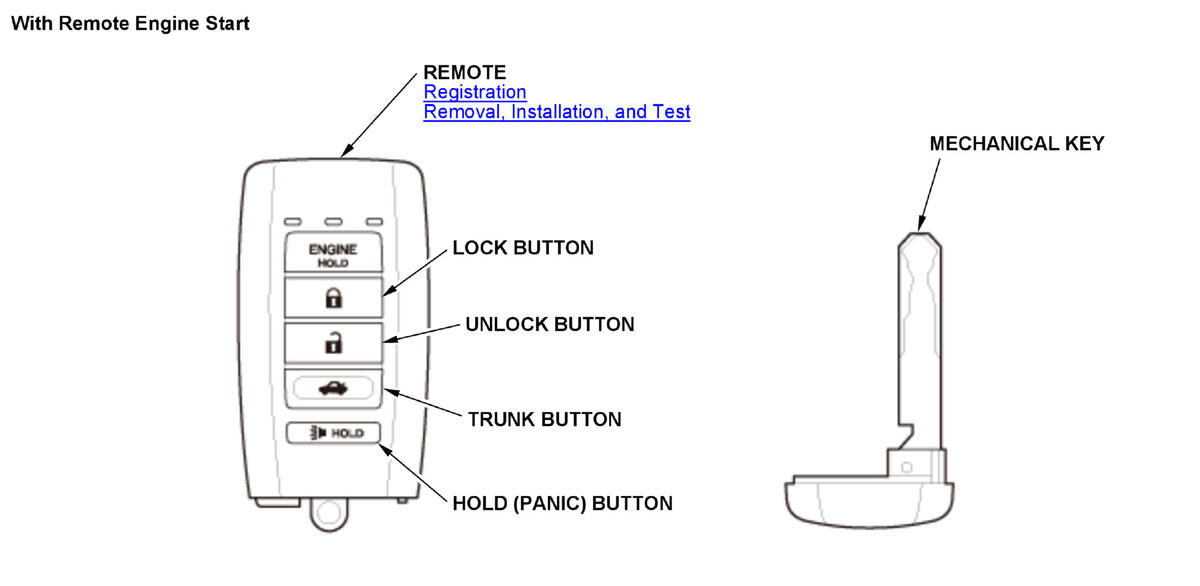

GHH350980Courtesy of HONDA, U.S.A., INC.

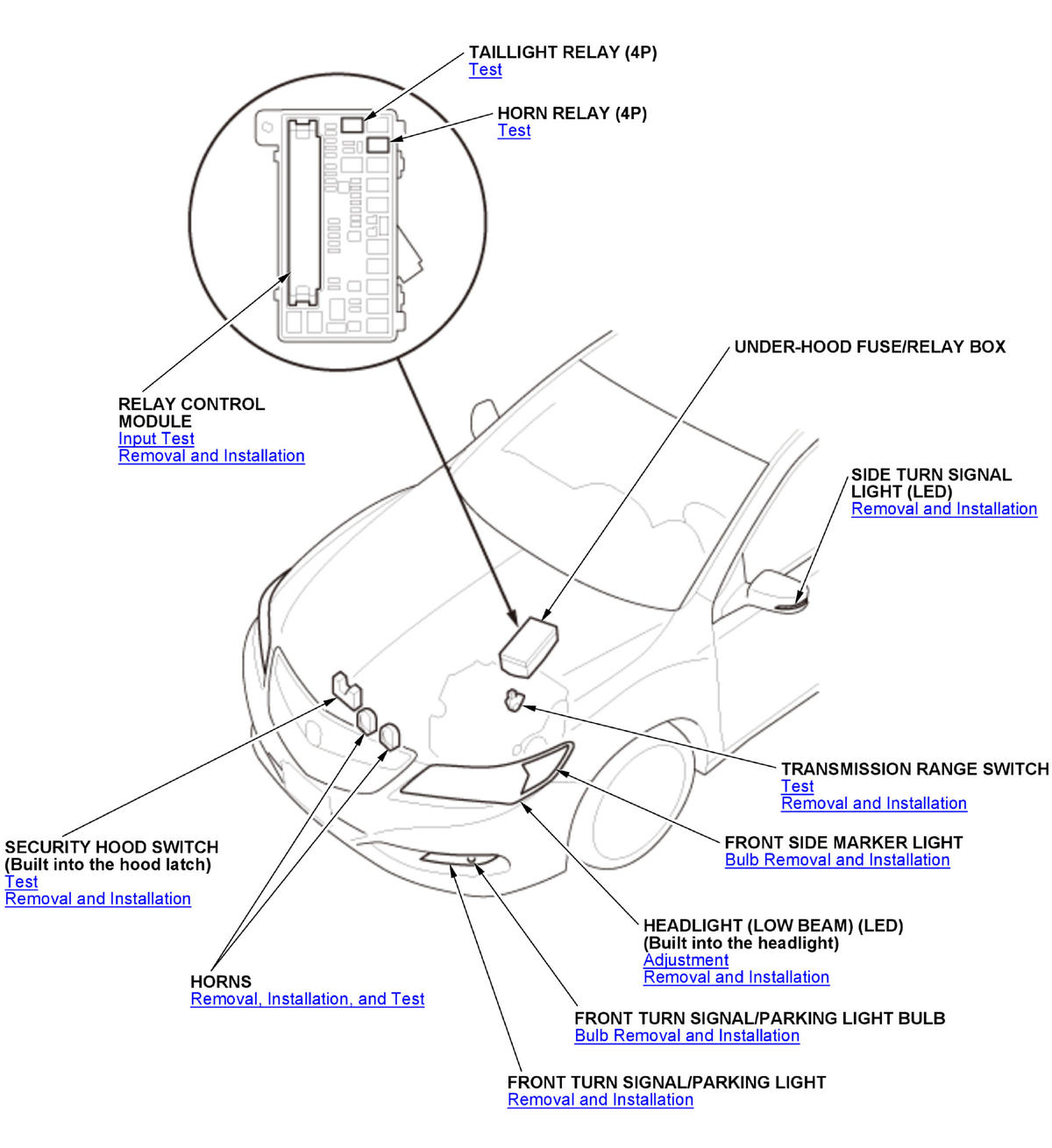

GHH350981Courtesy of HONDA, U.S.A., INC.

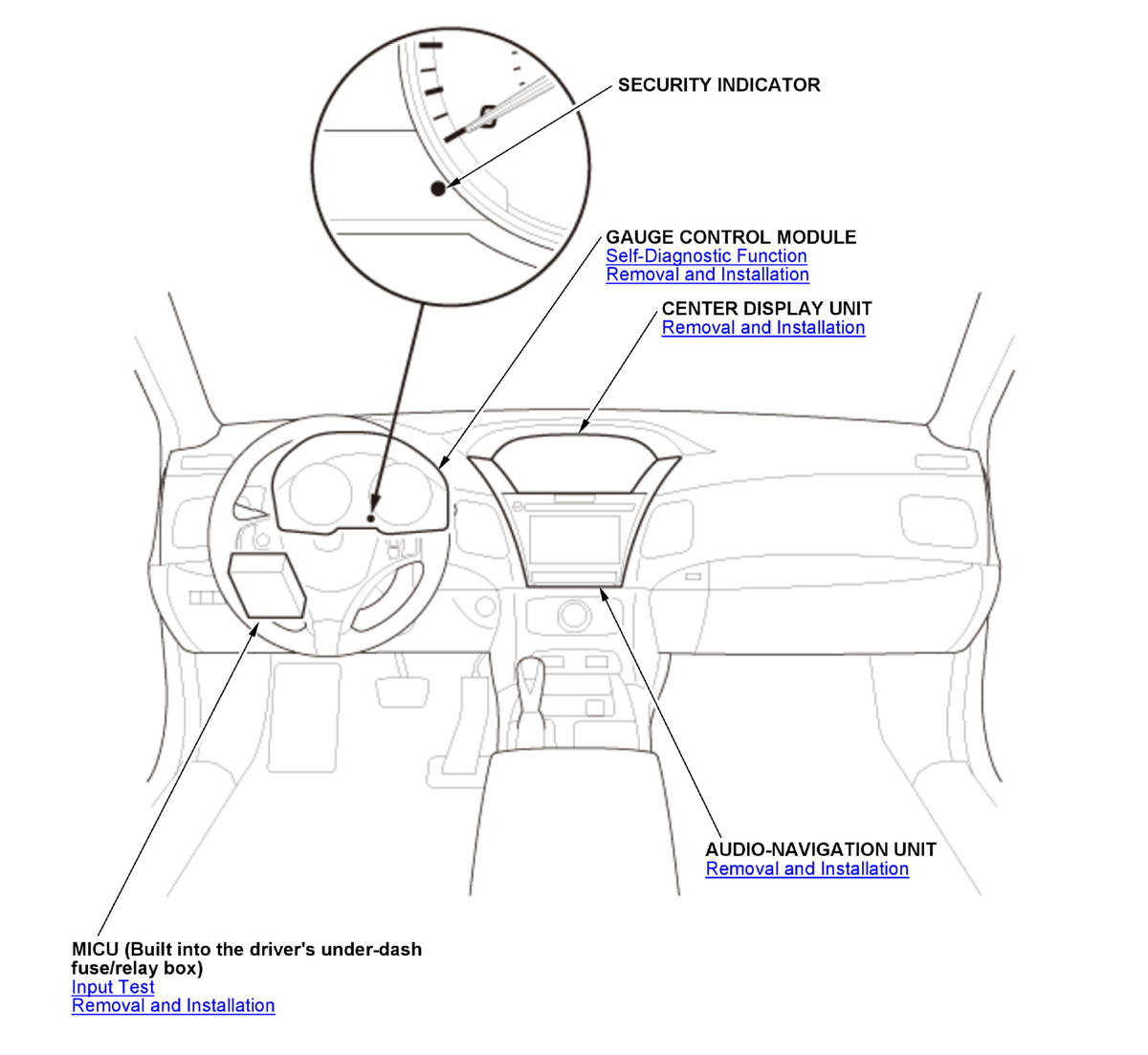

GHH350982Courtesy of HONDA, U.S.A., INC.

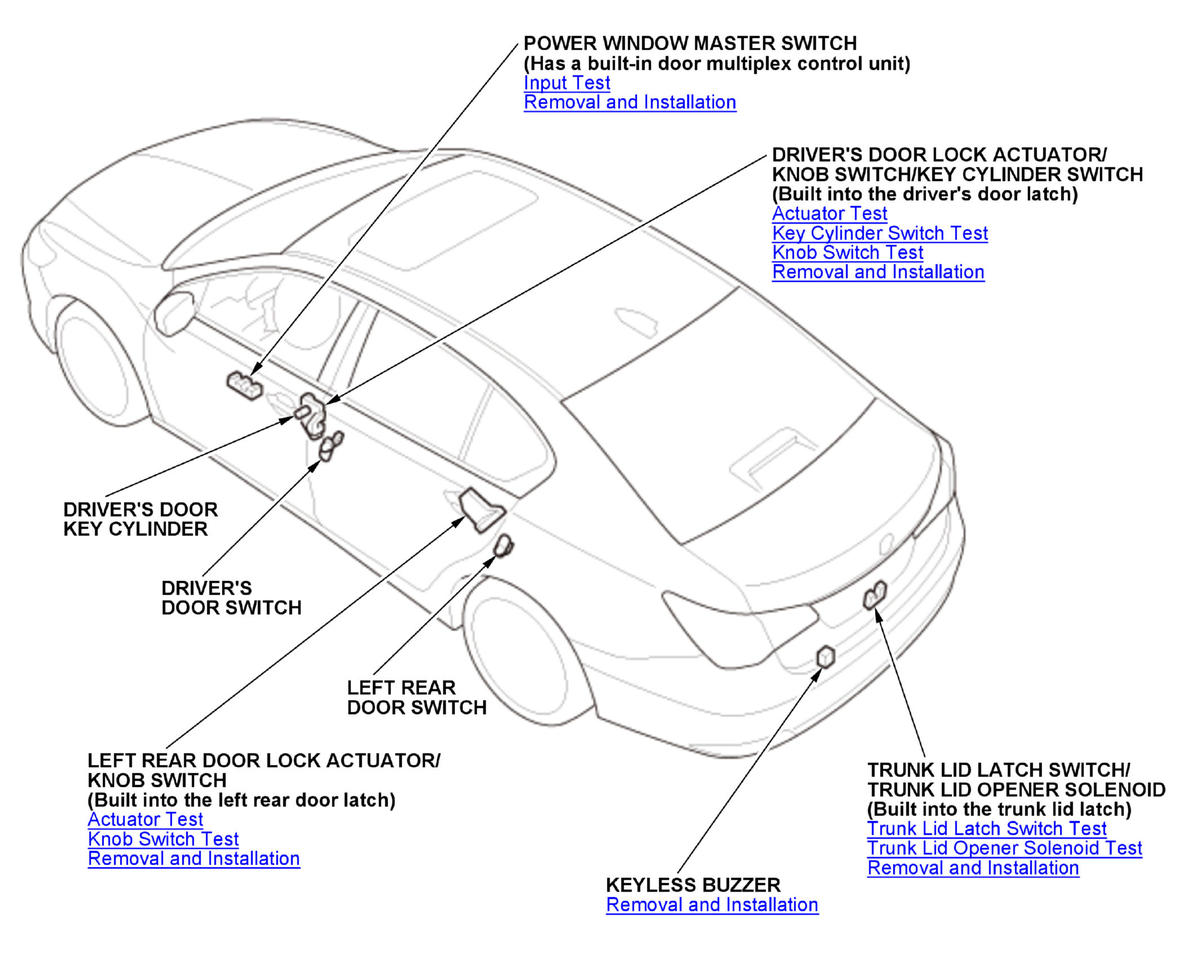

GHH350983Courtesy of HONDA, U.S.A., INC.

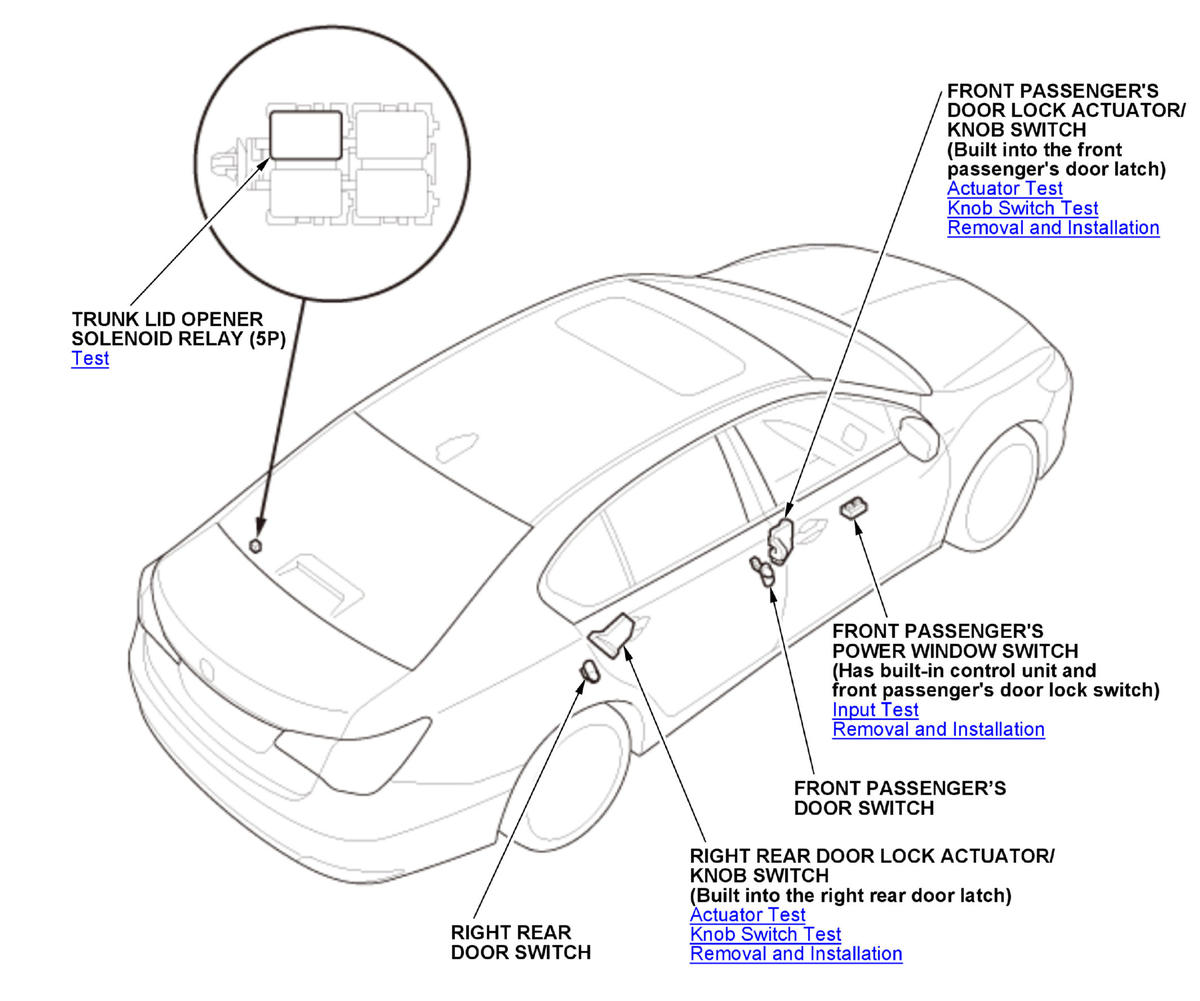

GHH350984Courtesy of HONDA, U.S.A., INC.

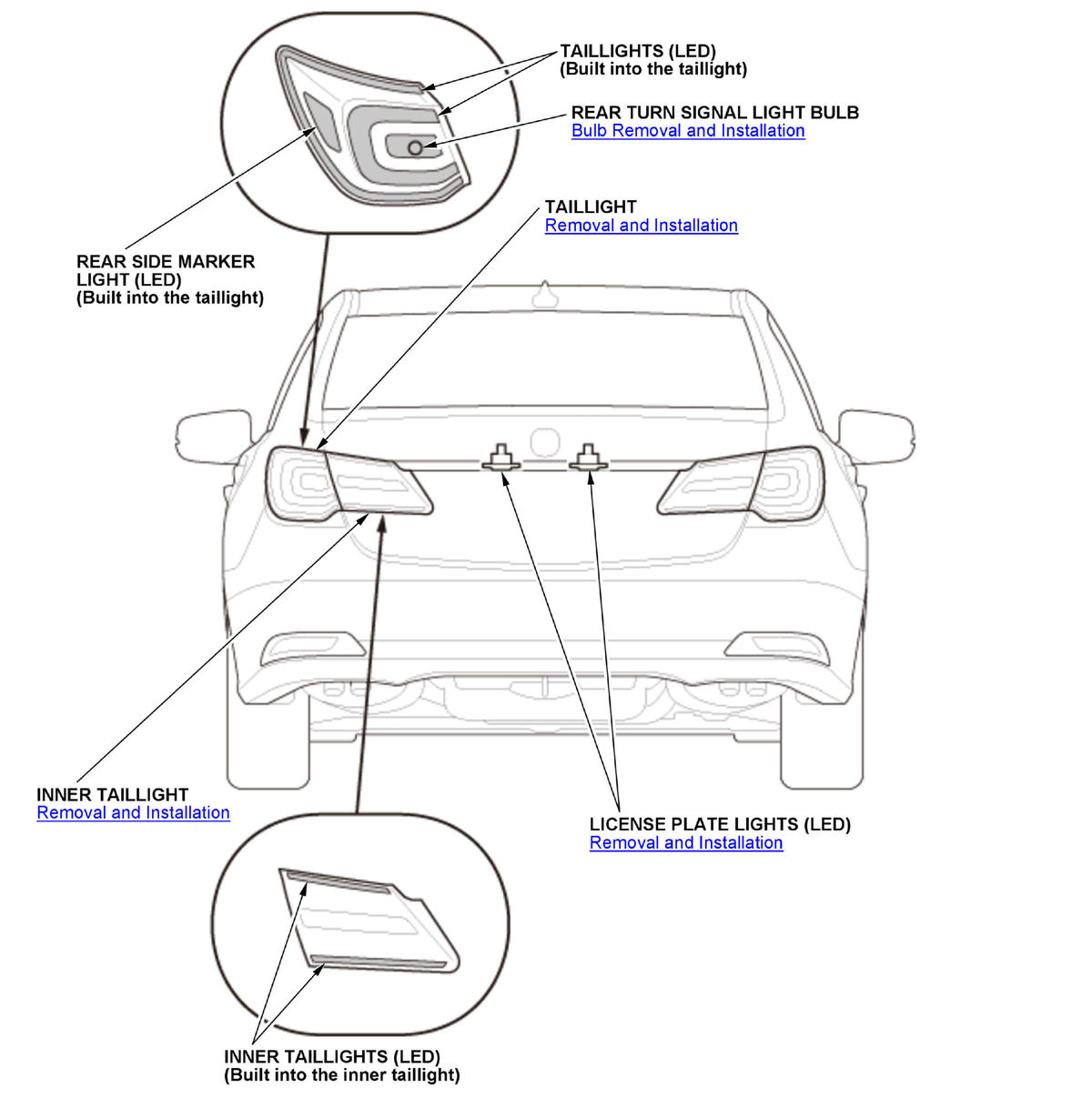

GHH350985Courtesy of HONDA, U.S.A., INC.
