Driving Position Memory System (DPMS) Circuit Diagram (2014 2015)

Driver's Power Seat

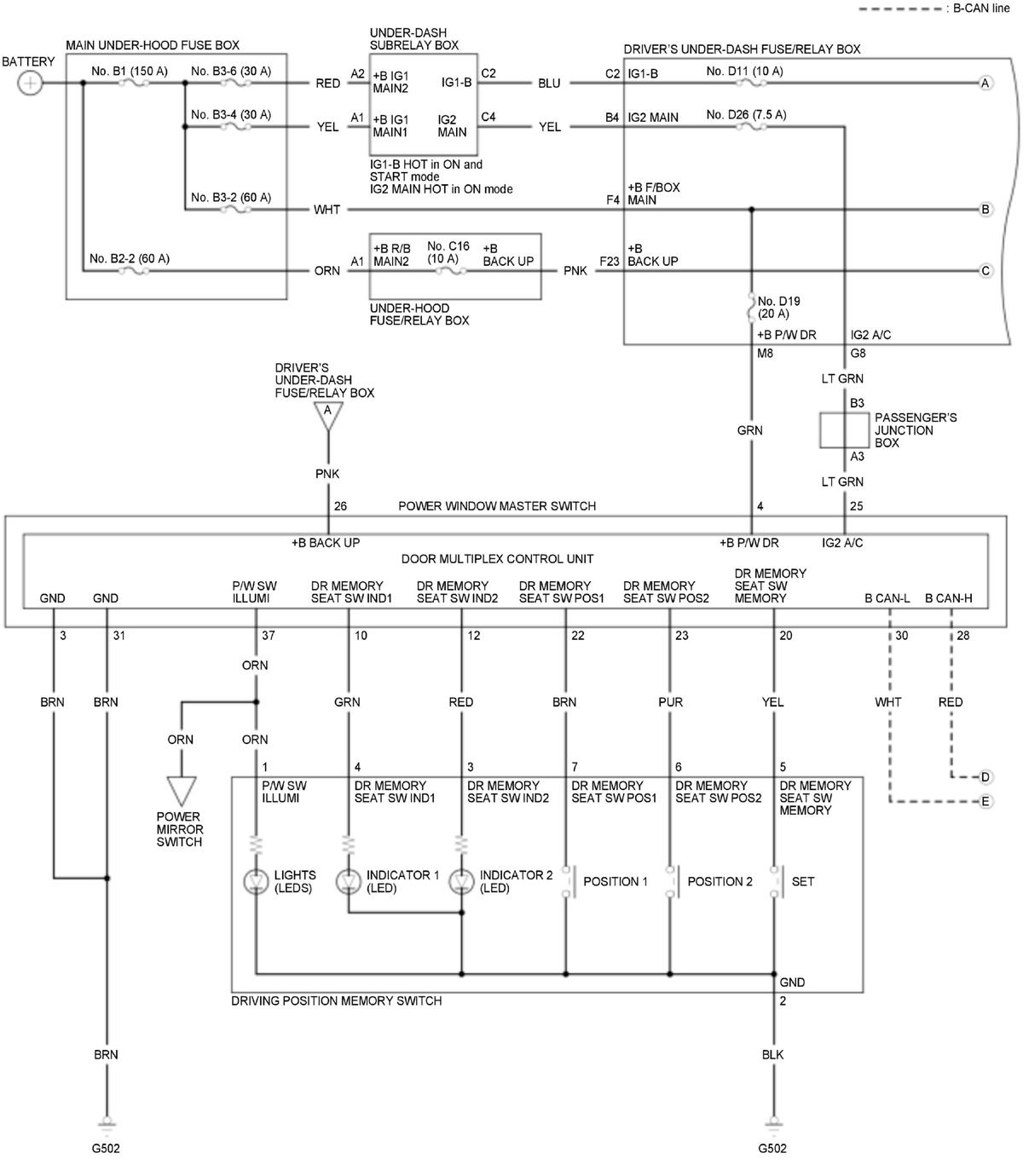

GHH348163Courtesy of HONDA, U.S.A., INC.

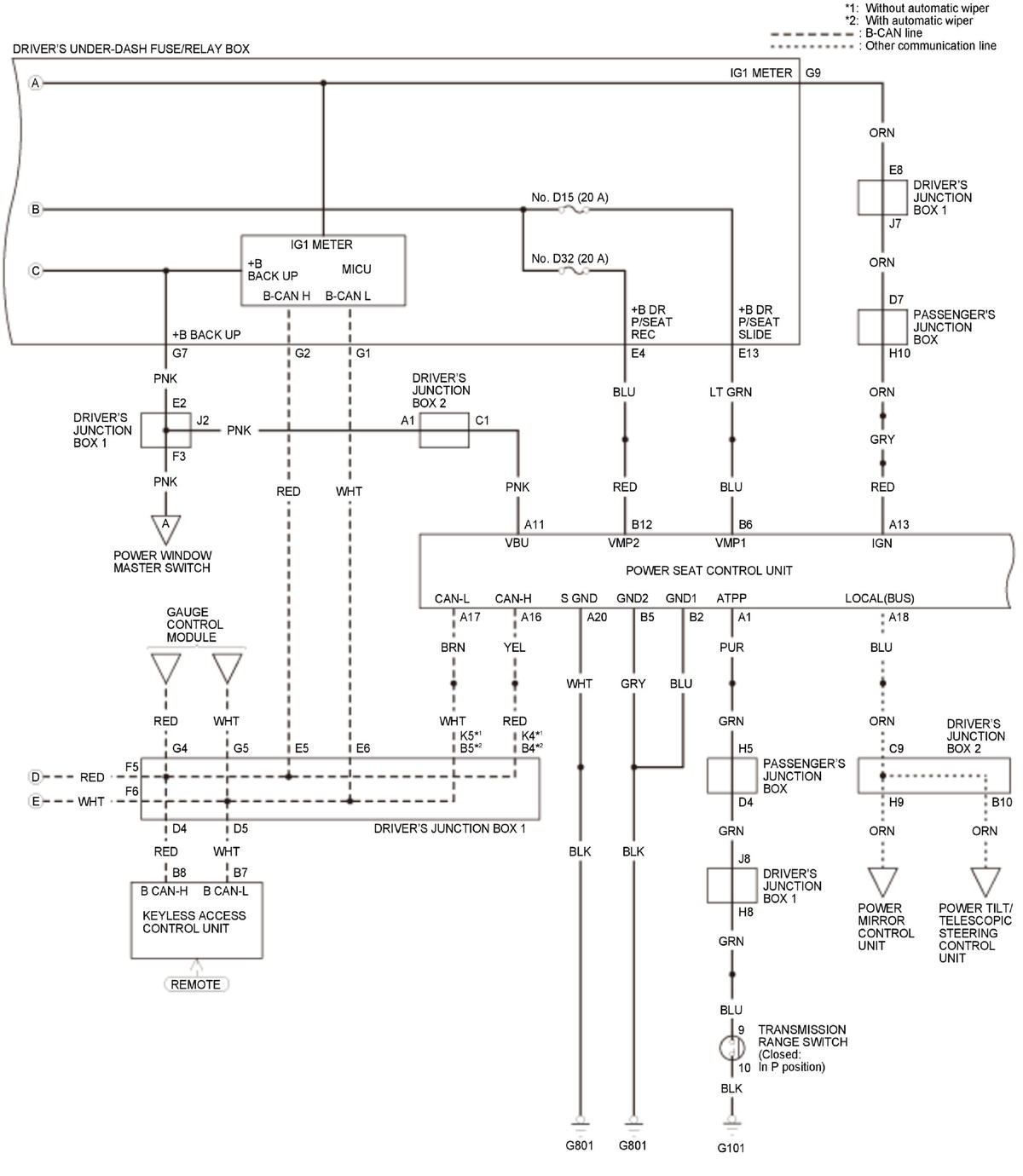

GHH348164Courtesy of HONDA, U.S.A., INC.

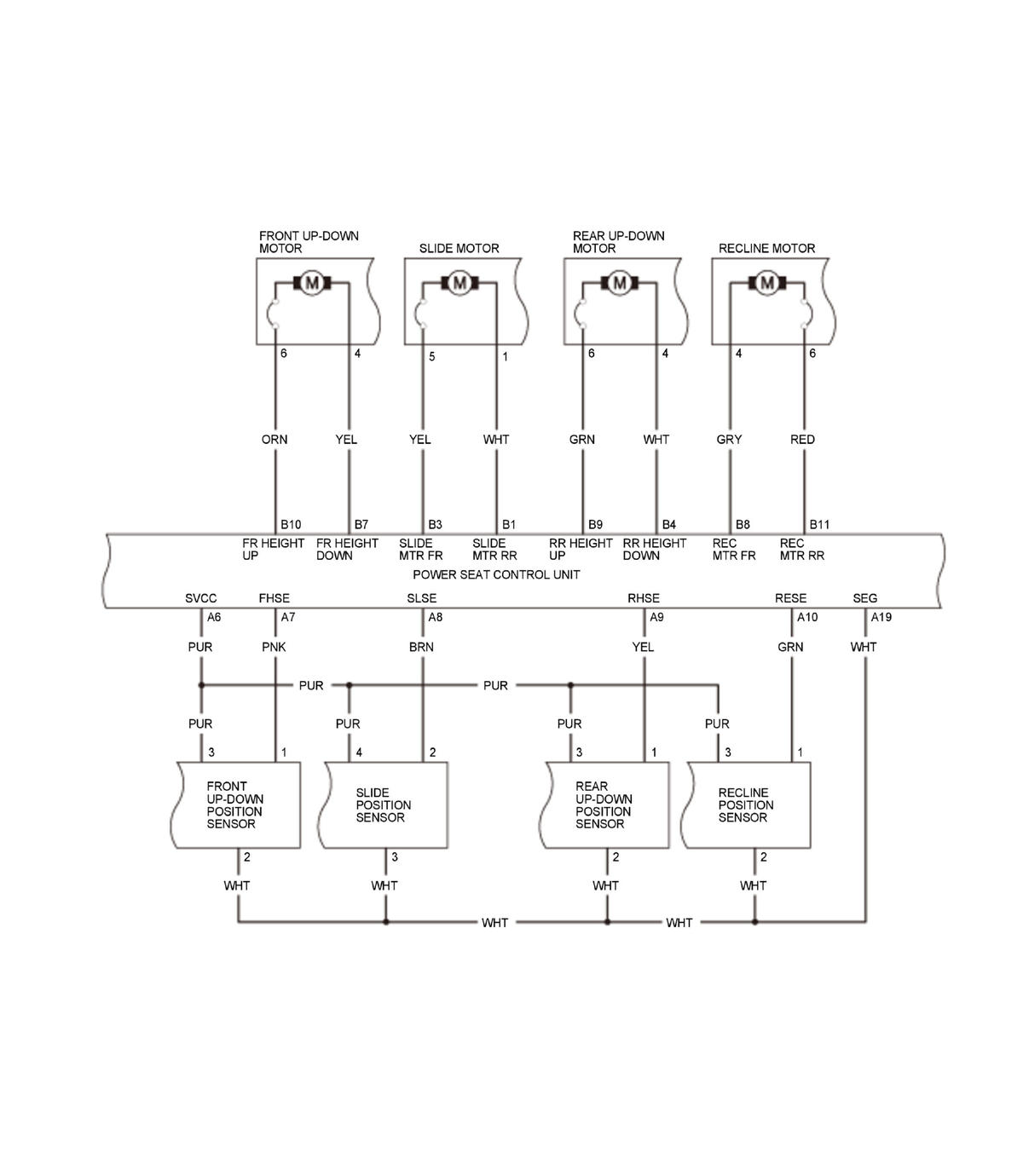

GHH348165Courtesy of HONDA, U.S.A., INC.

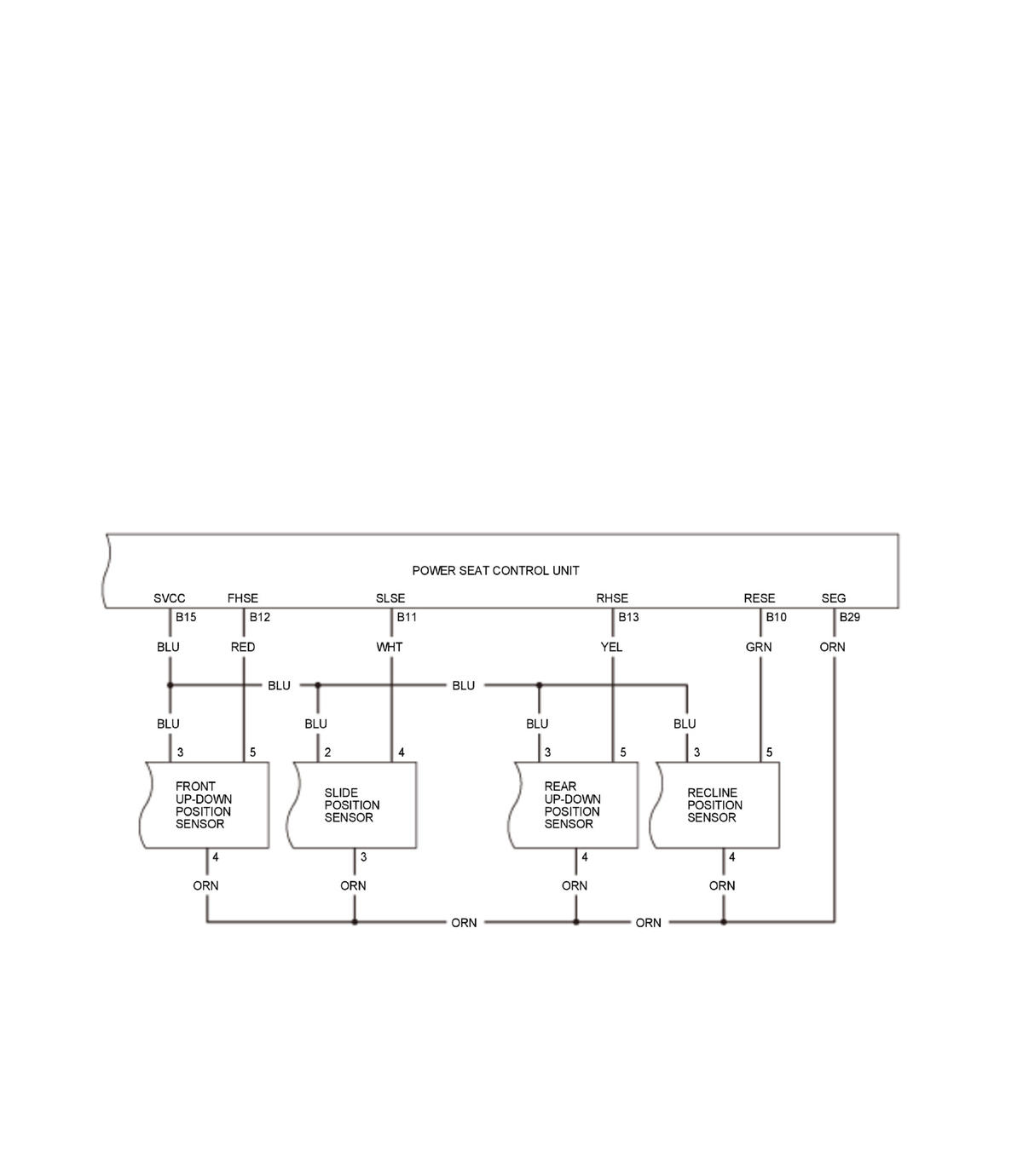

GHH348166Courtesy of HONDA, U.S.A., INC.

Power Mirror

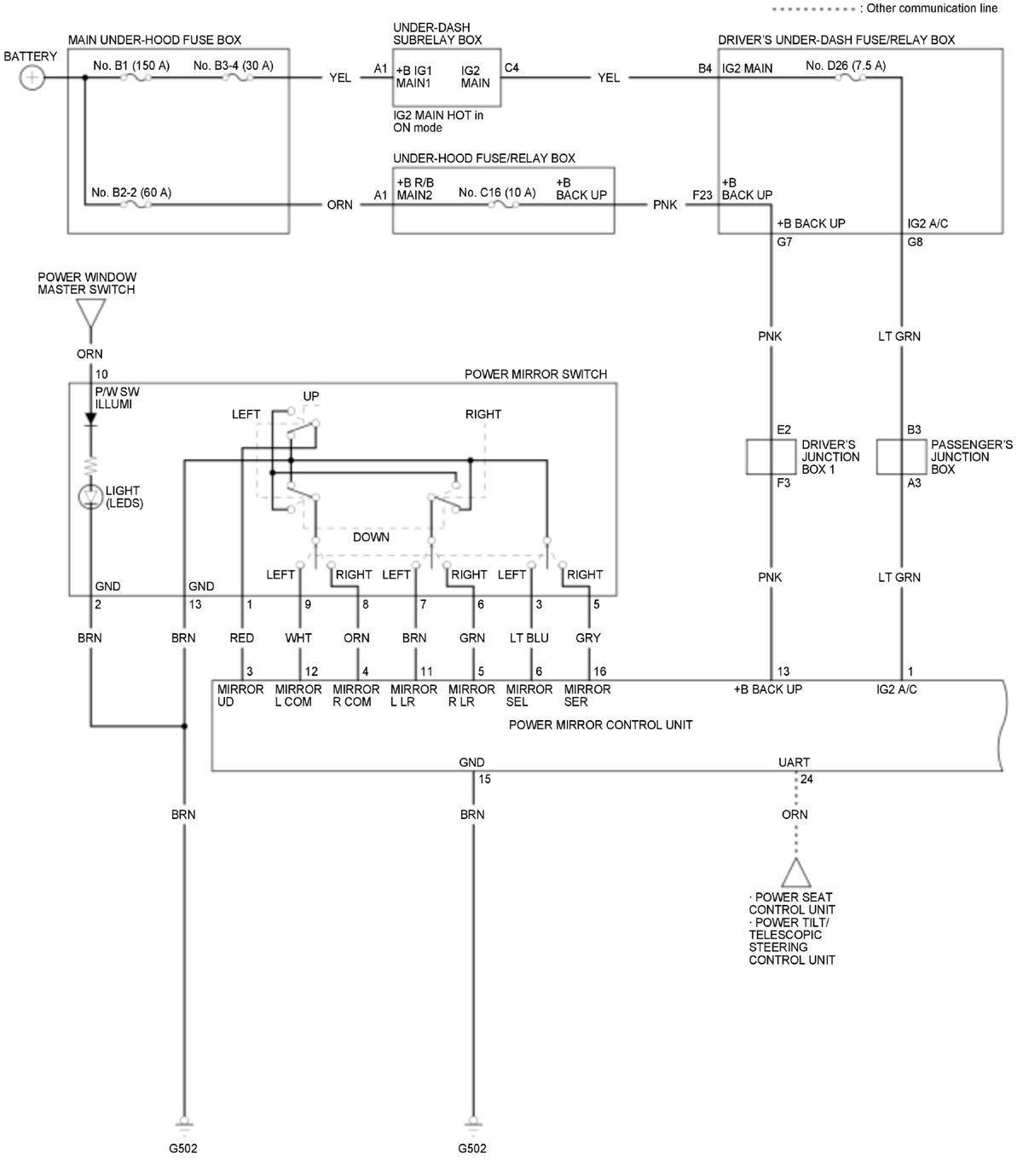

GHH348167Courtesy of HONDA, U.S.A., INC.

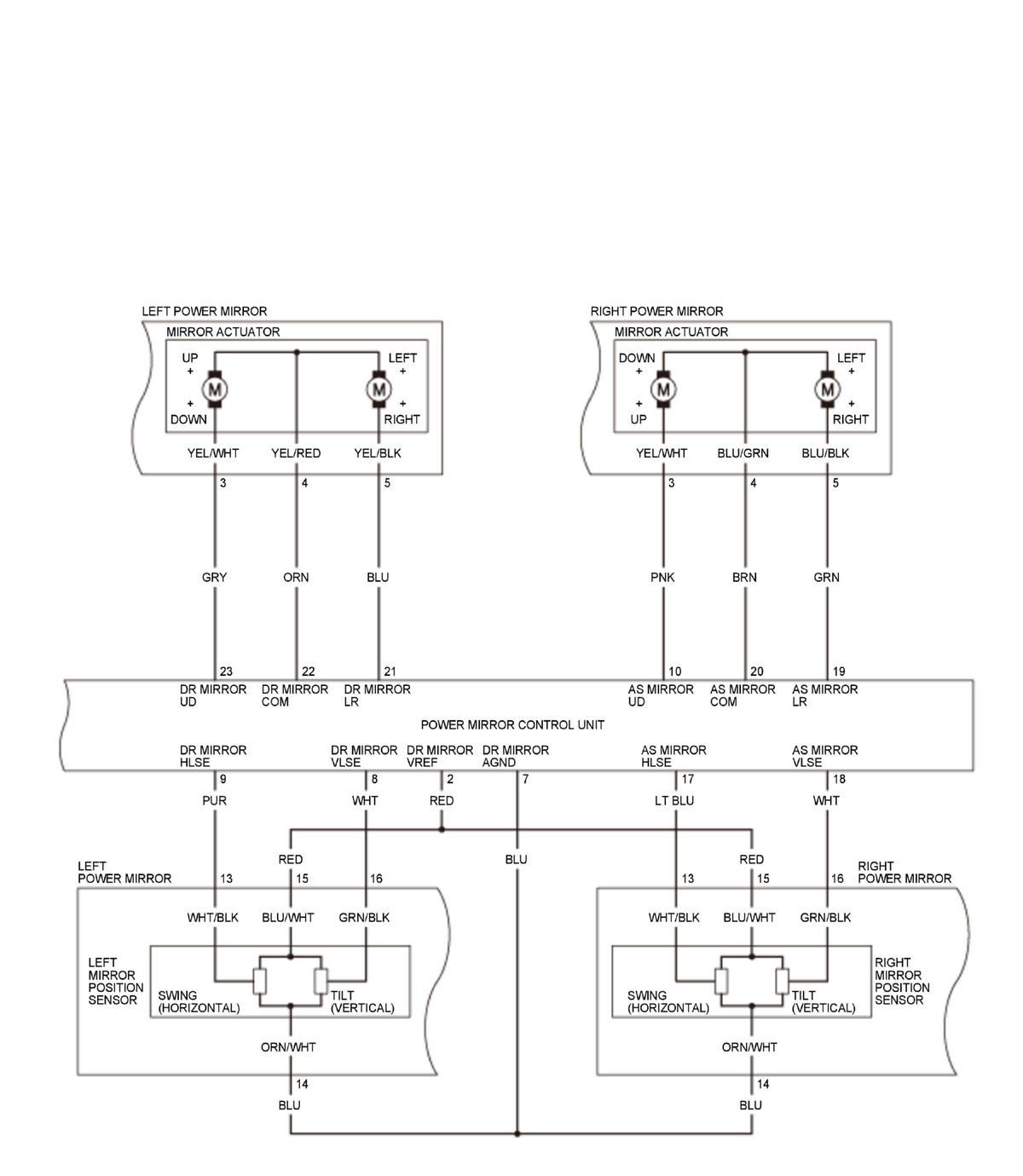

GHH348168Courtesy of HONDA, U.S.A., INC.

Power Tilt/Telescopic Steering

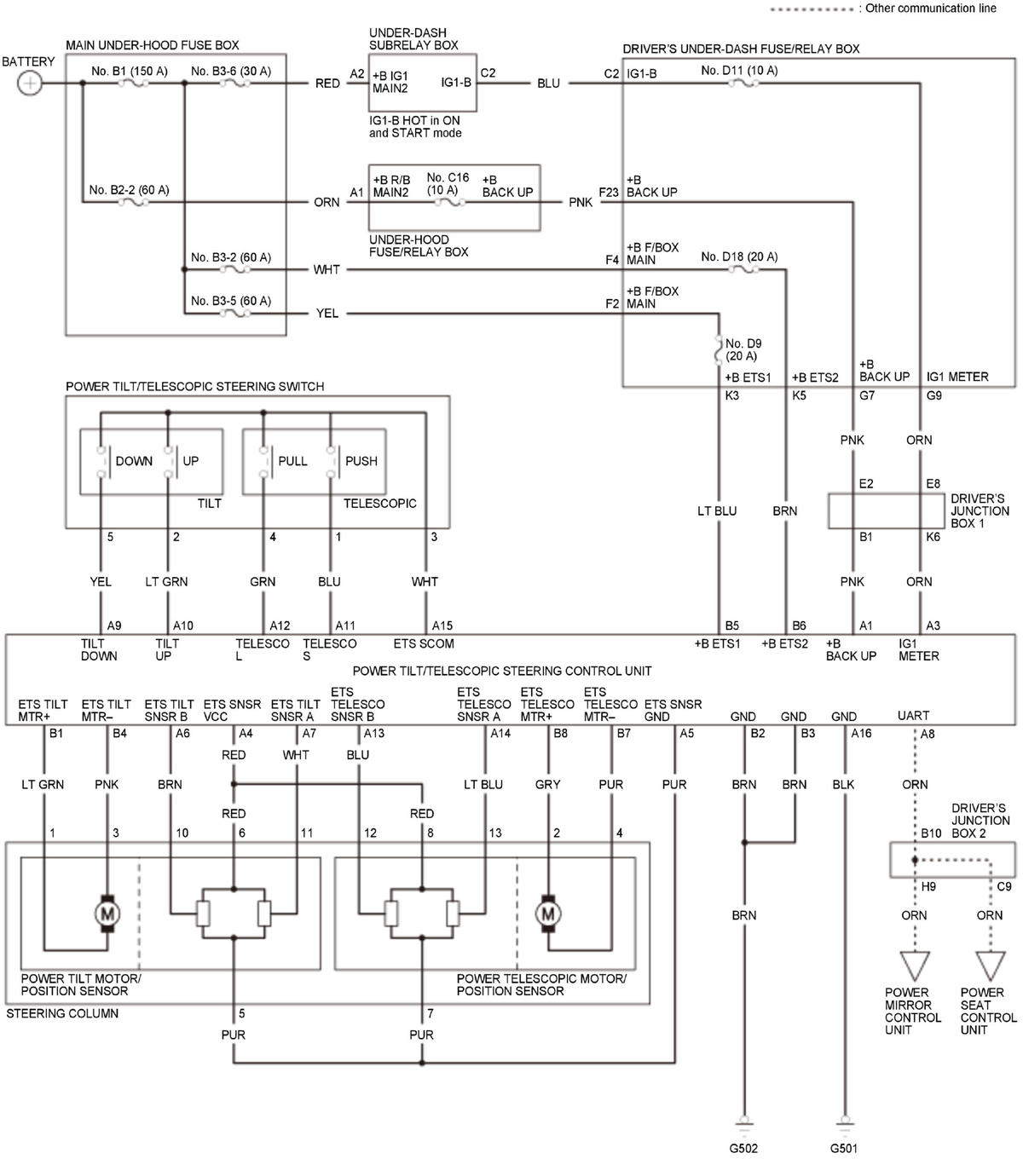

GHH348169Courtesy of HONDA, U.S.A., INC.
