Driving Position Memory System (DPMS) Component Location Index(With Steering Lock)

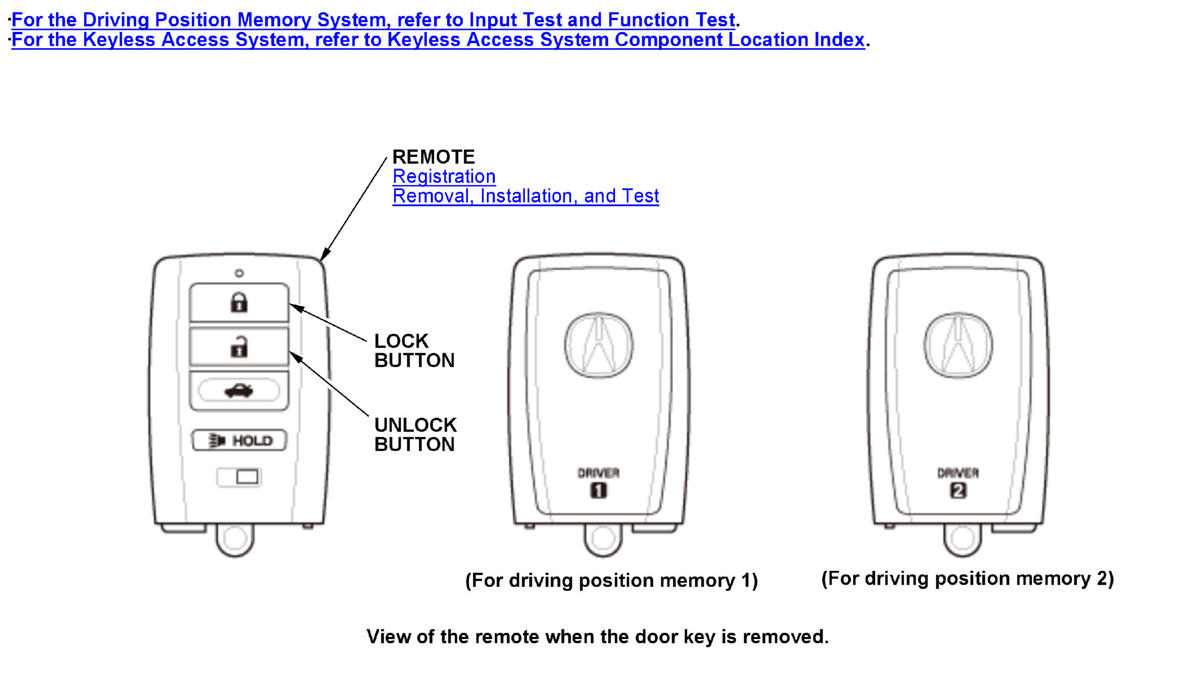

GHH348202

Courtesy of HONDA, U.S.A., INC.

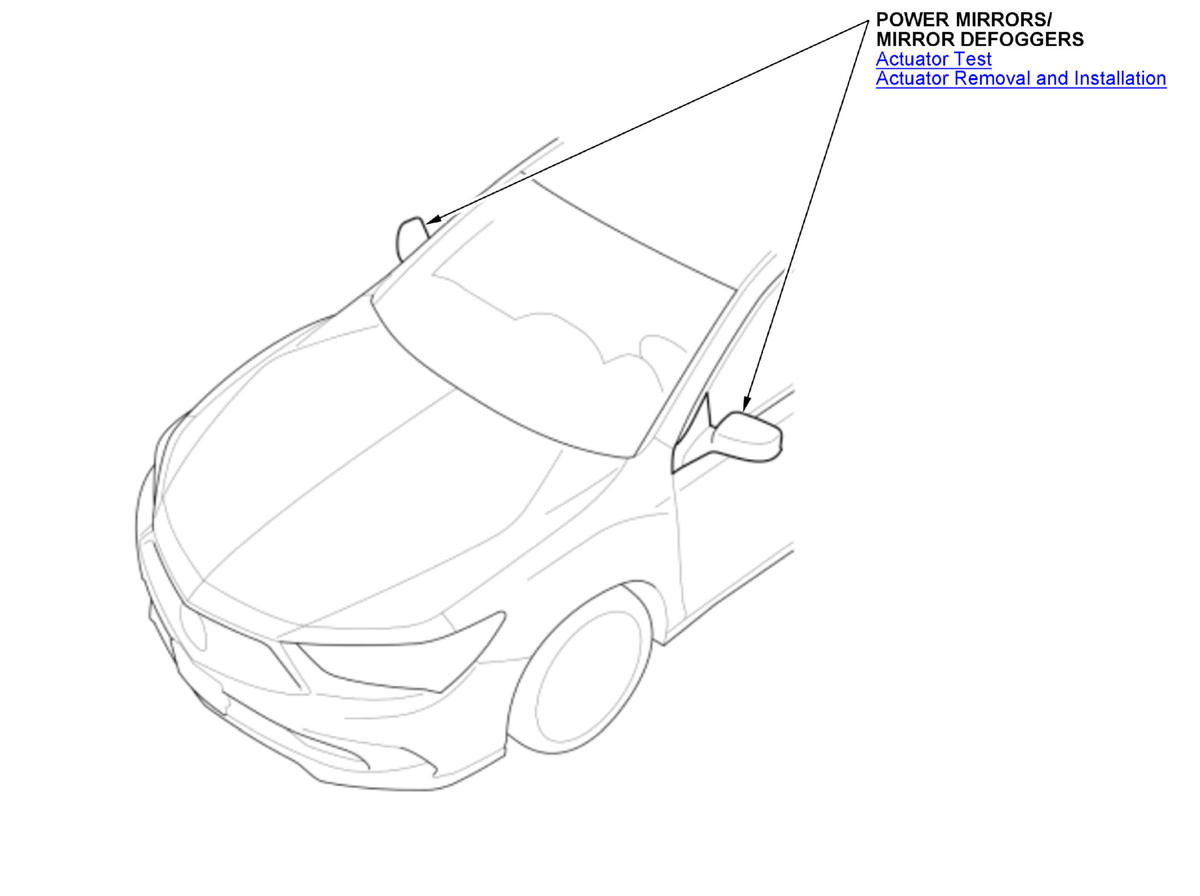

GHH348203

Courtesy of HONDA, U.S.A., INC.

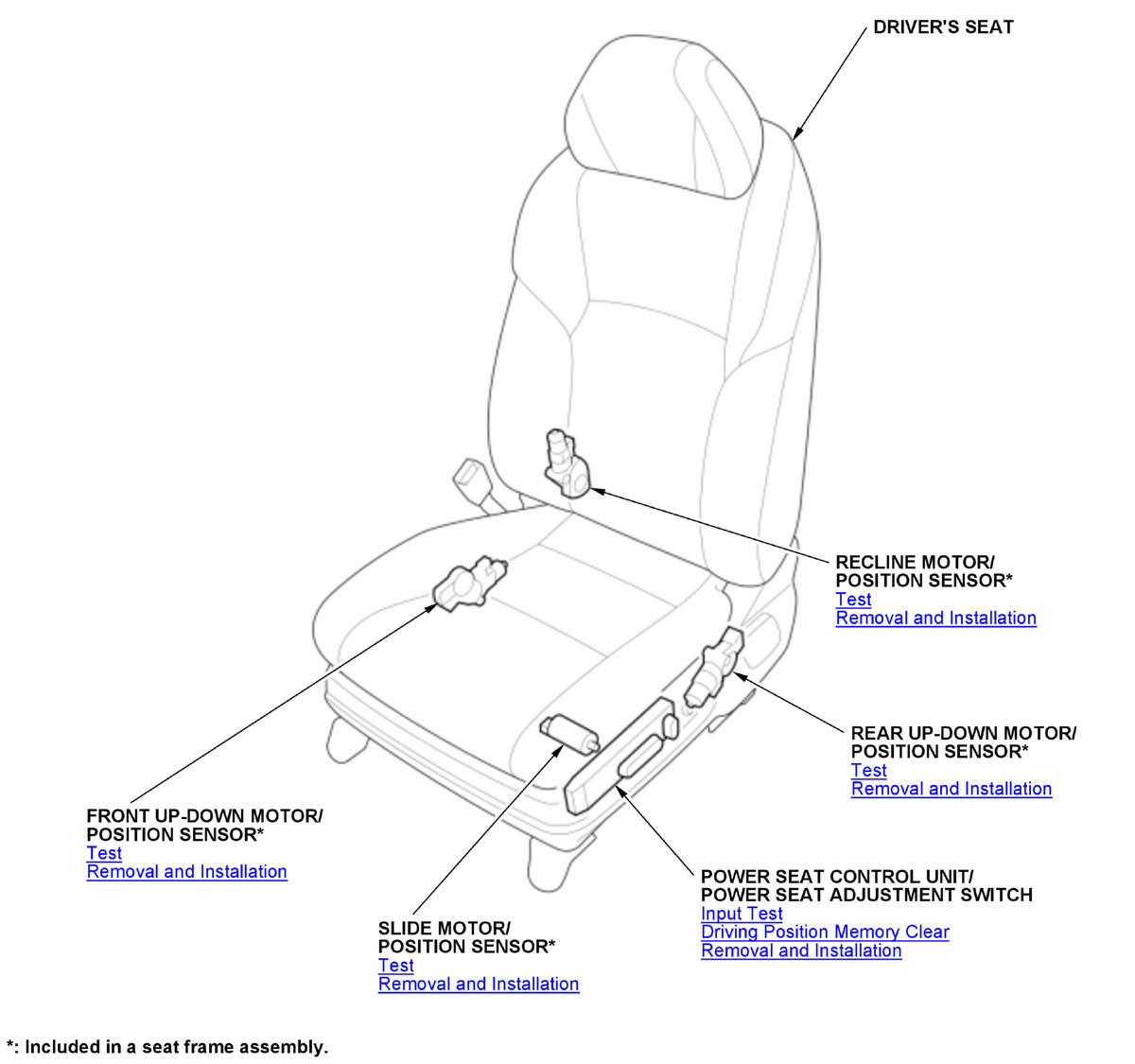

GHH348204

Courtesy of HONDA, U.S.A., INC.

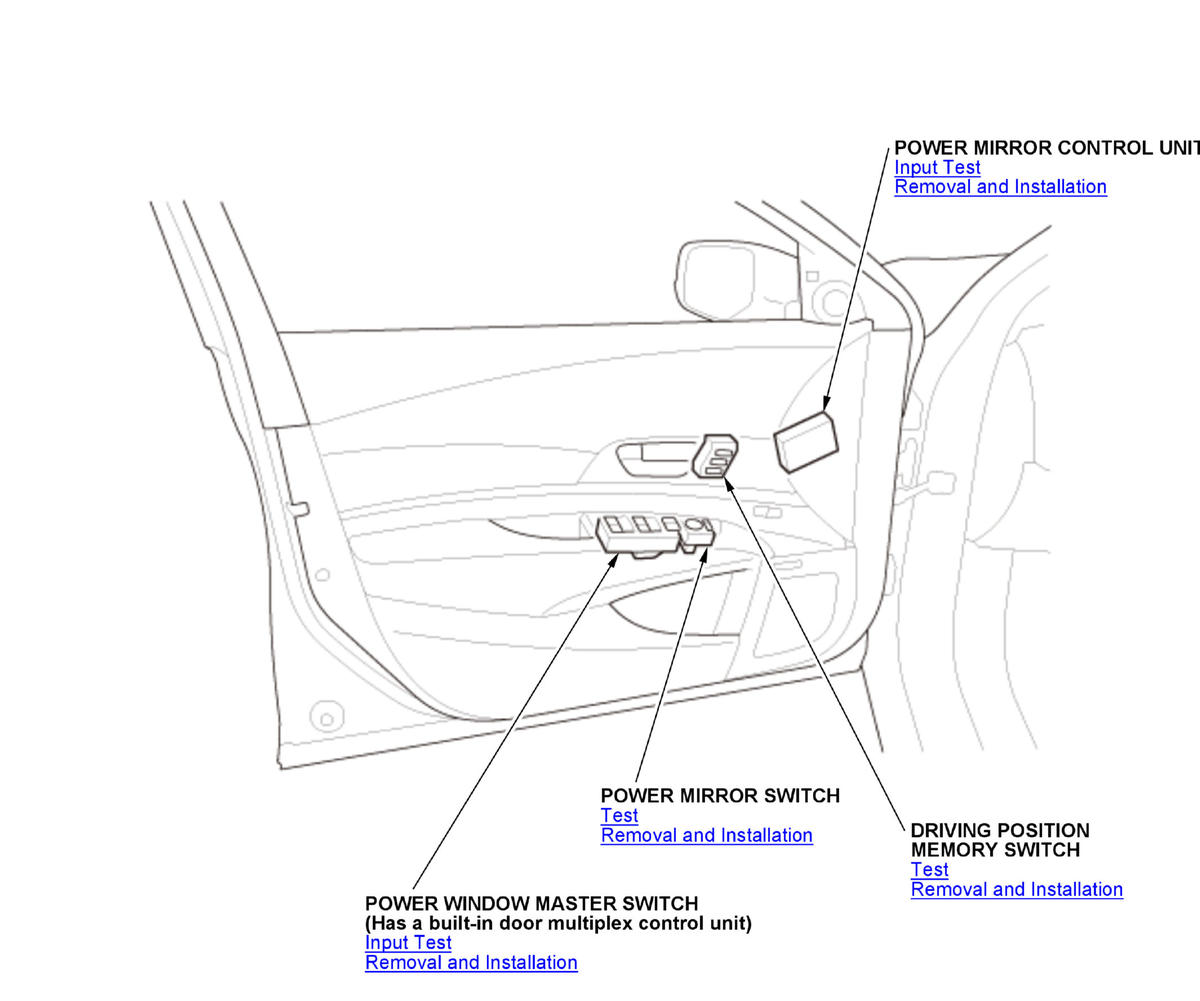

GHH348205

Courtesy of HONDA, U.S.A., INC.

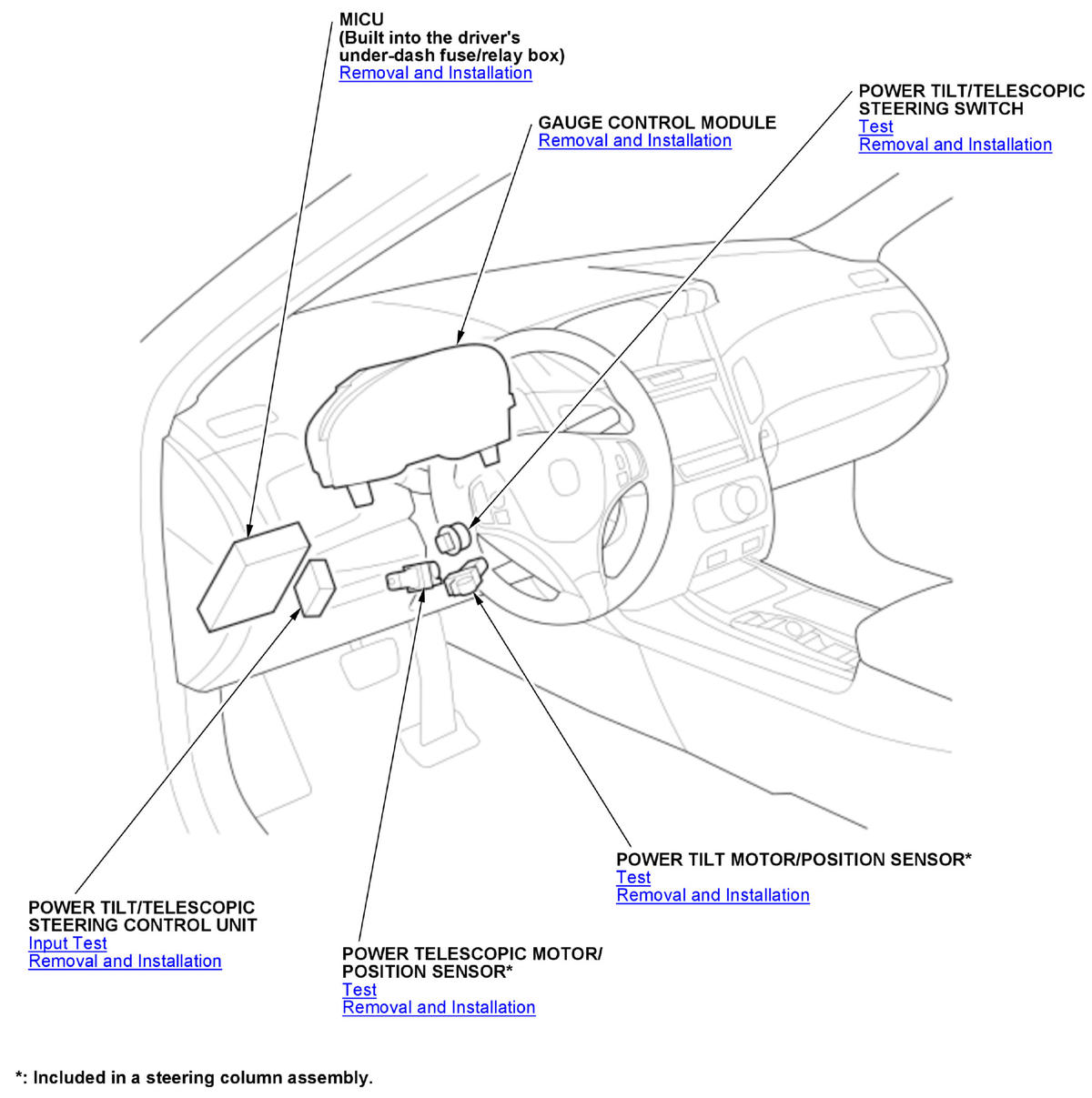

GHH348206

Courtesy of HONDA, U.S.A., INC.

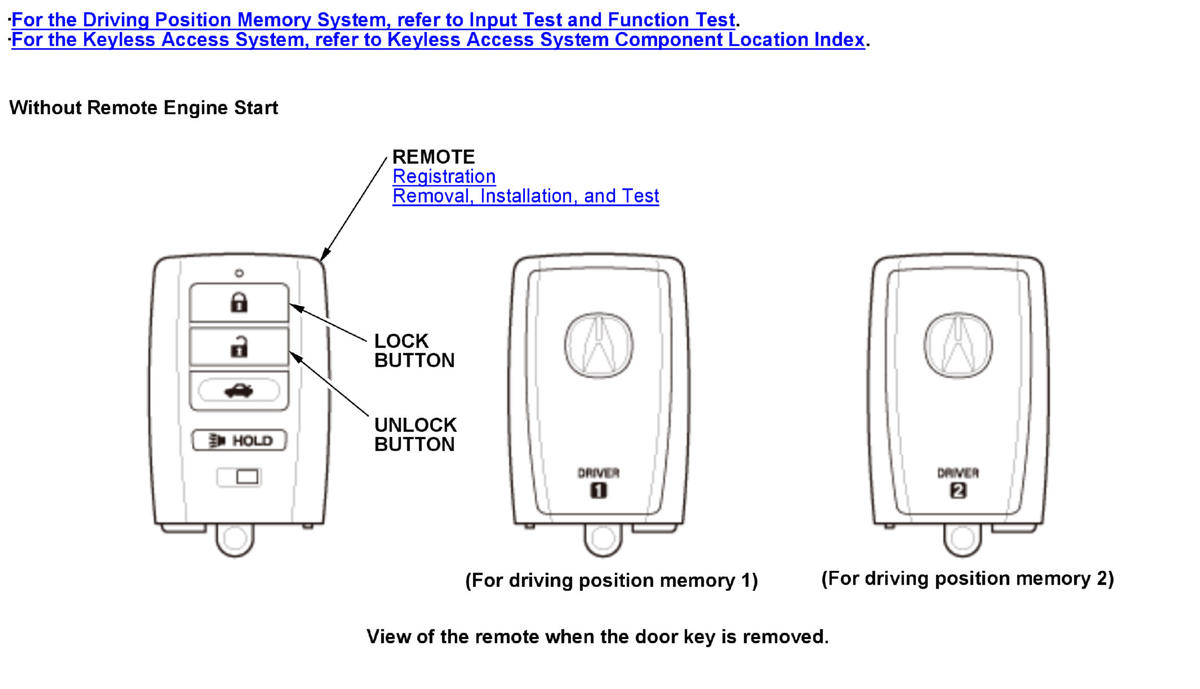

GHH348207

Courtesy of HONDA, U.S.A., INC.

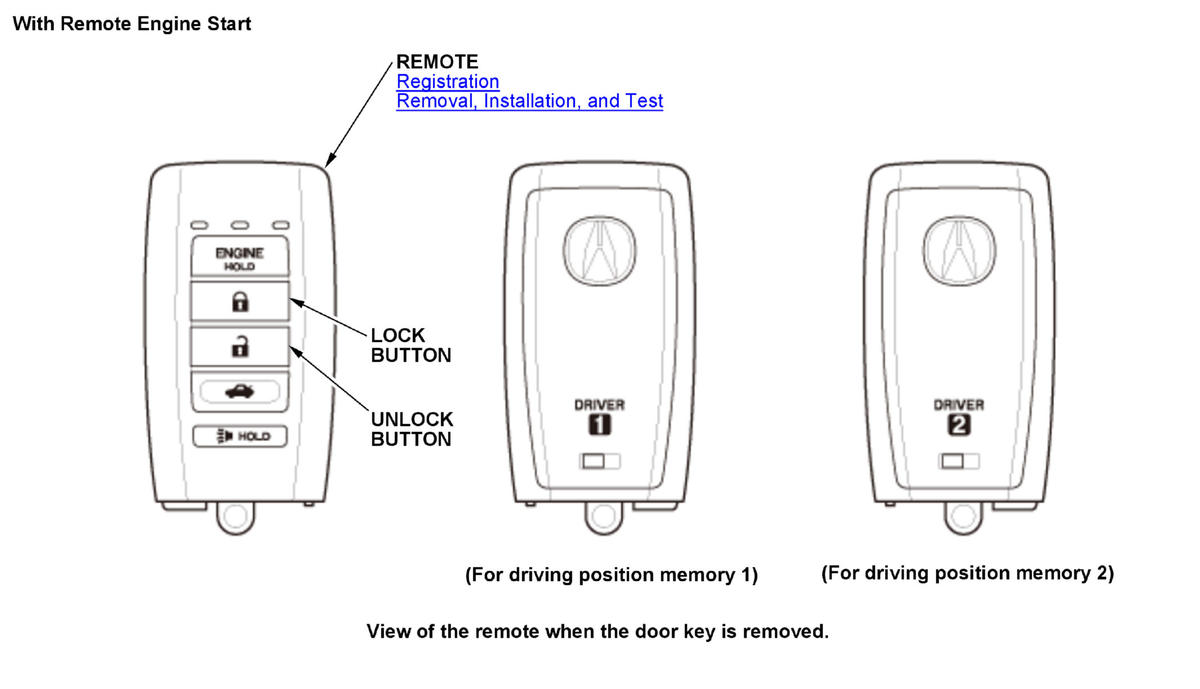

GHH348208

Courtesy of HONDA, U.S.A., INC.

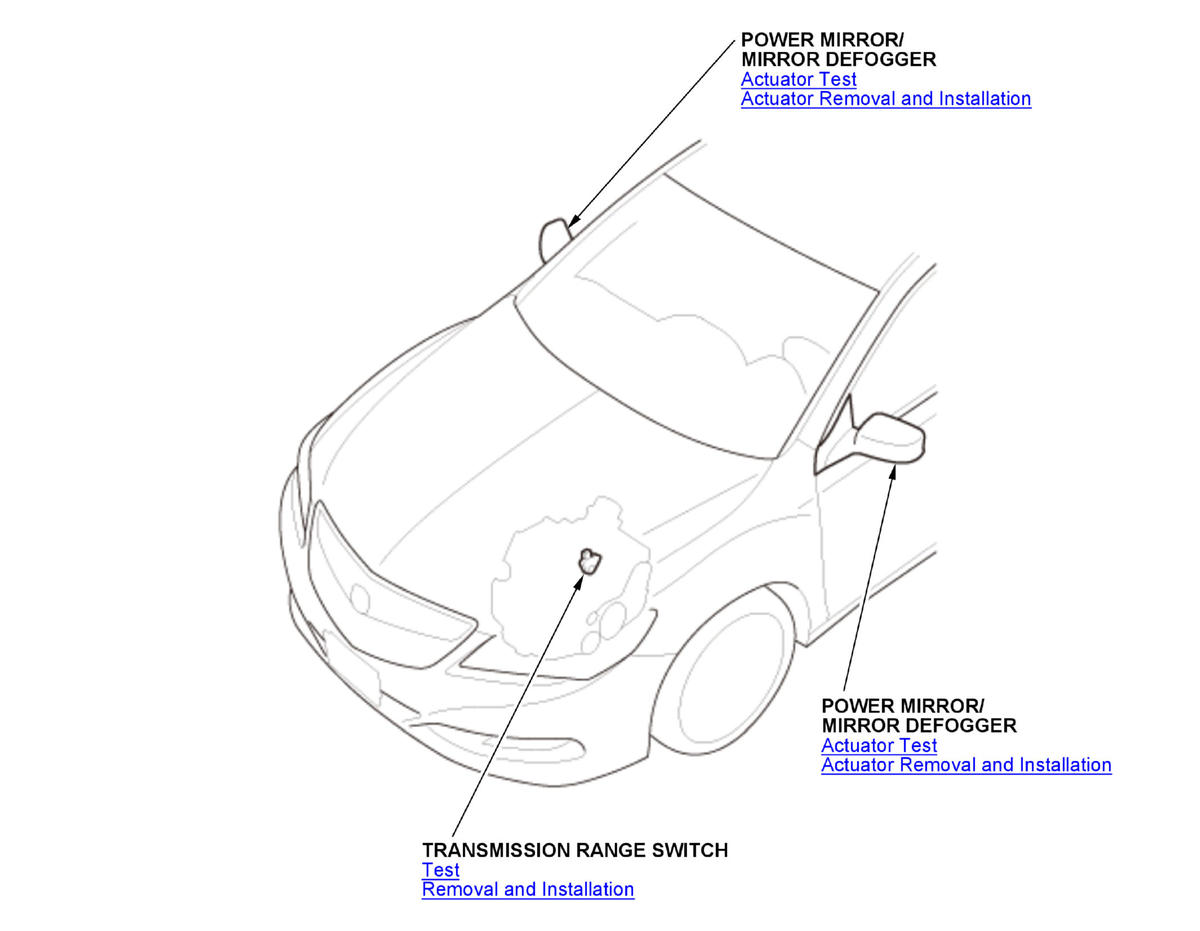

GHH348209

Courtesy of HONDA, U.S.A., INC.

GHH348210

Courtesy of HONDA, U.S.A., INC.

GHH348211

Courtesy of HONDA, U.S.A., INC.

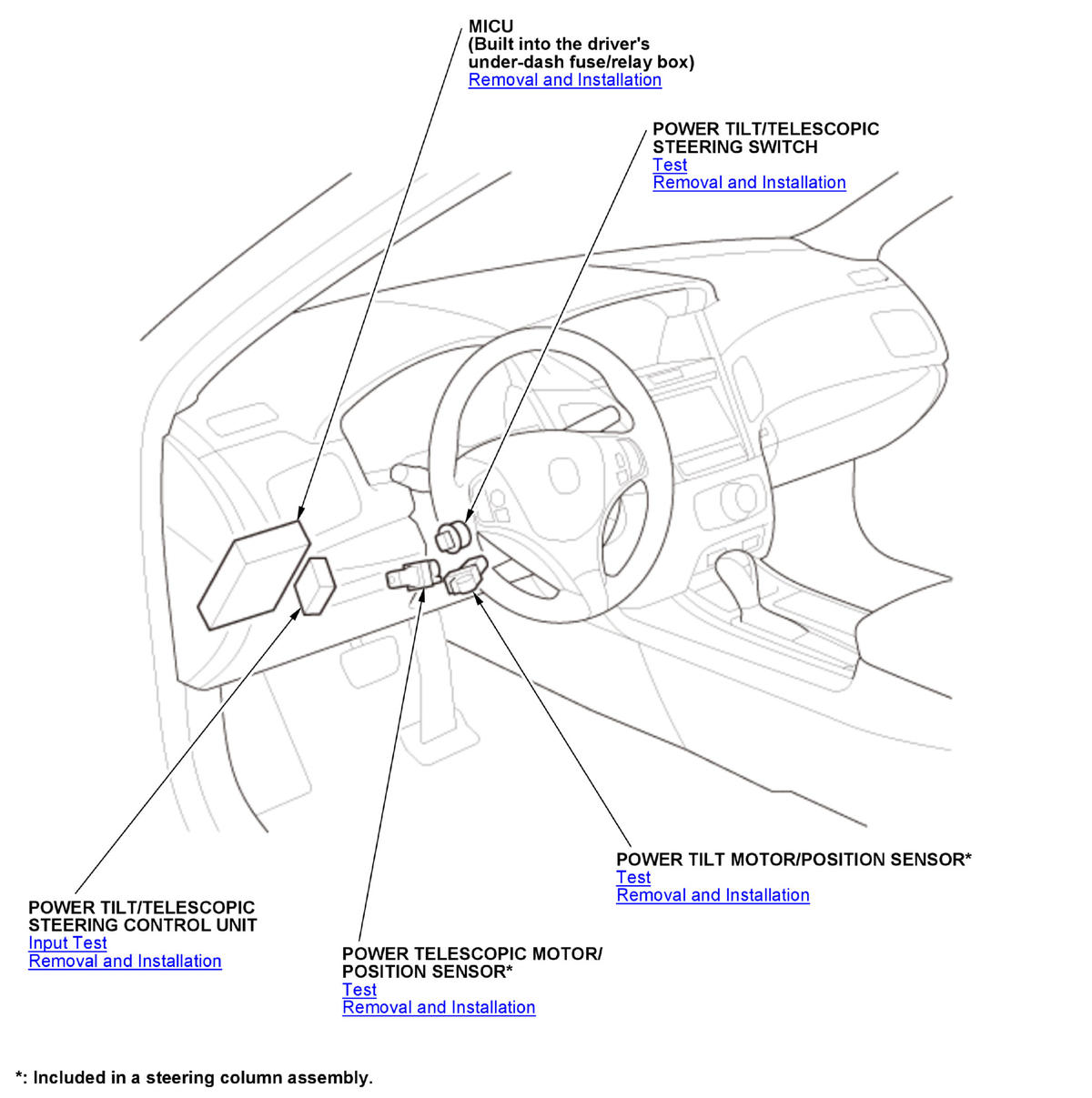

GHH348212

Courtesy of HONDA, U.S.A., INC.
