Multiplex Integrated Control System Component Location Index (2016 2017 2018 2019 2020)

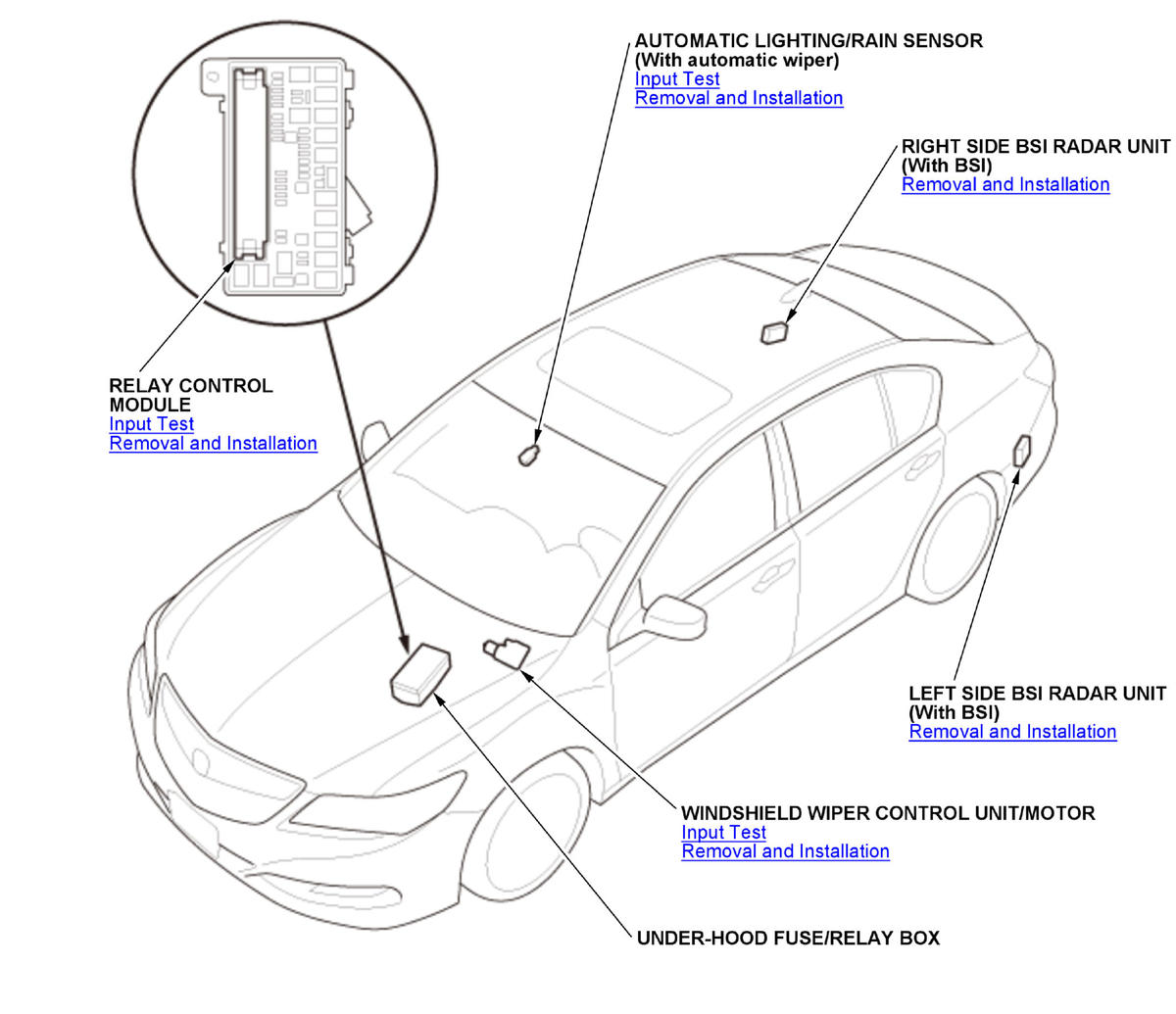

GHH348218Courtesy of HONDA, U.S.A., INC.

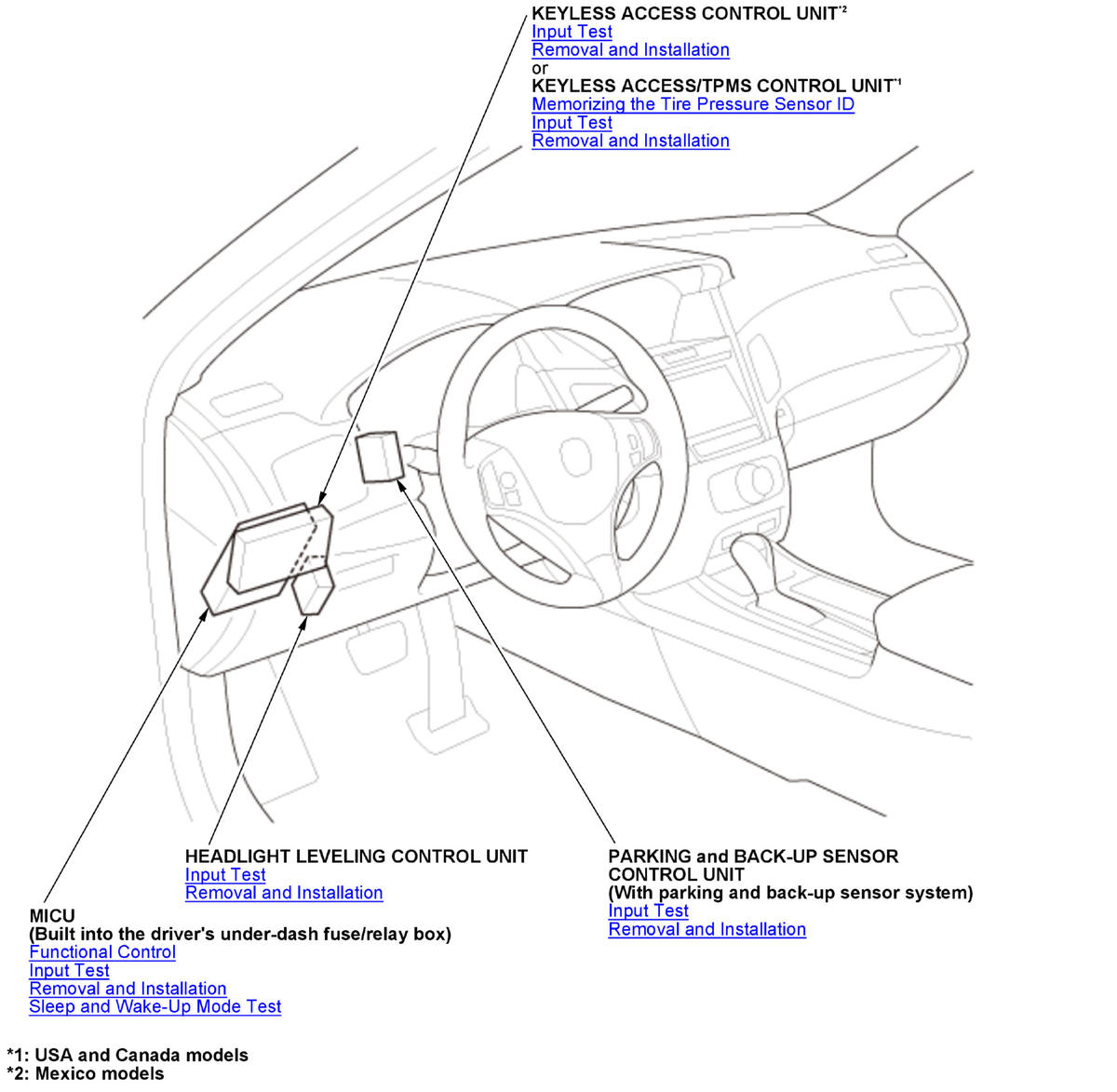

GHH348219Courtesy of HONDA, U.S.A., INC.

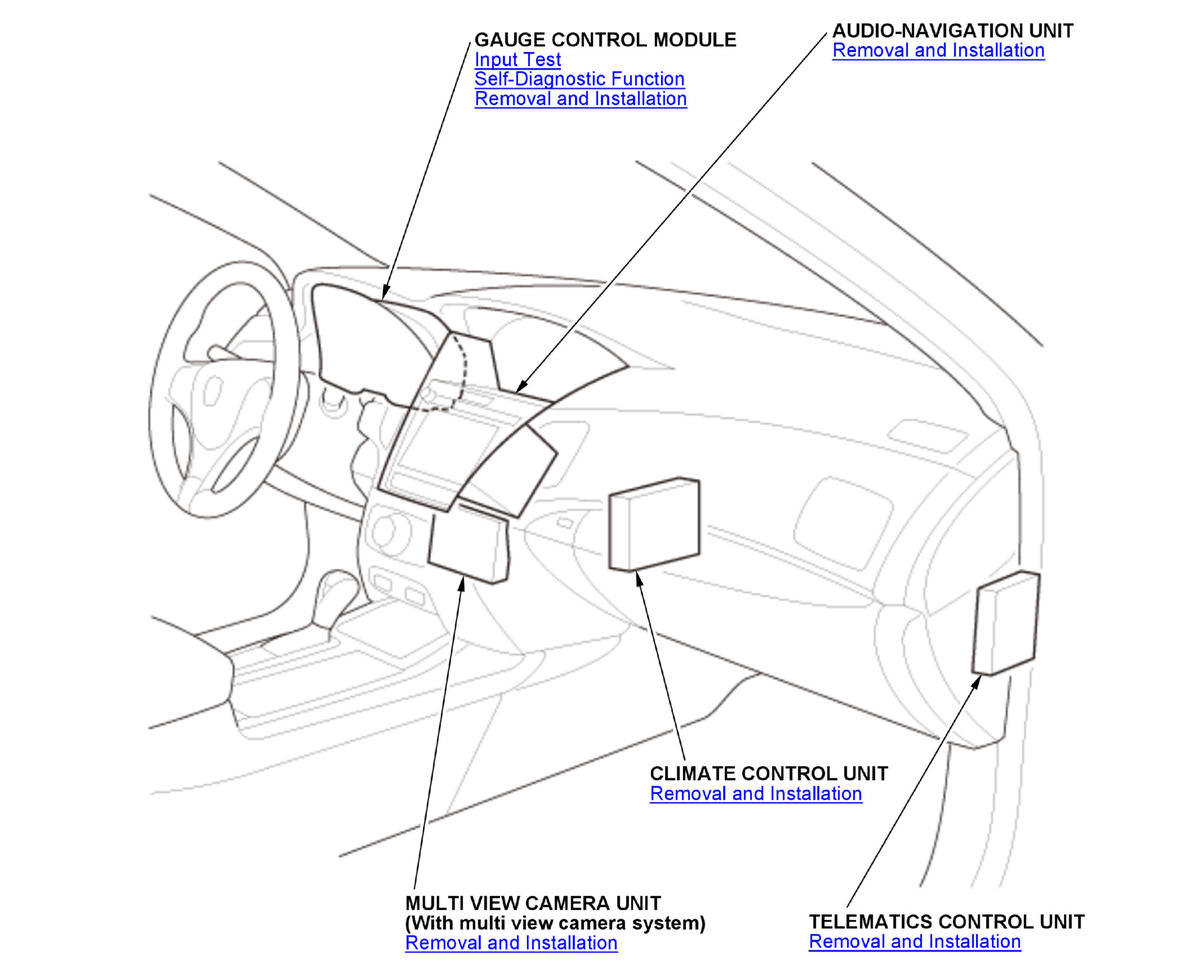

GHH348220Courtesy of HONDA, U.S.A., INC.

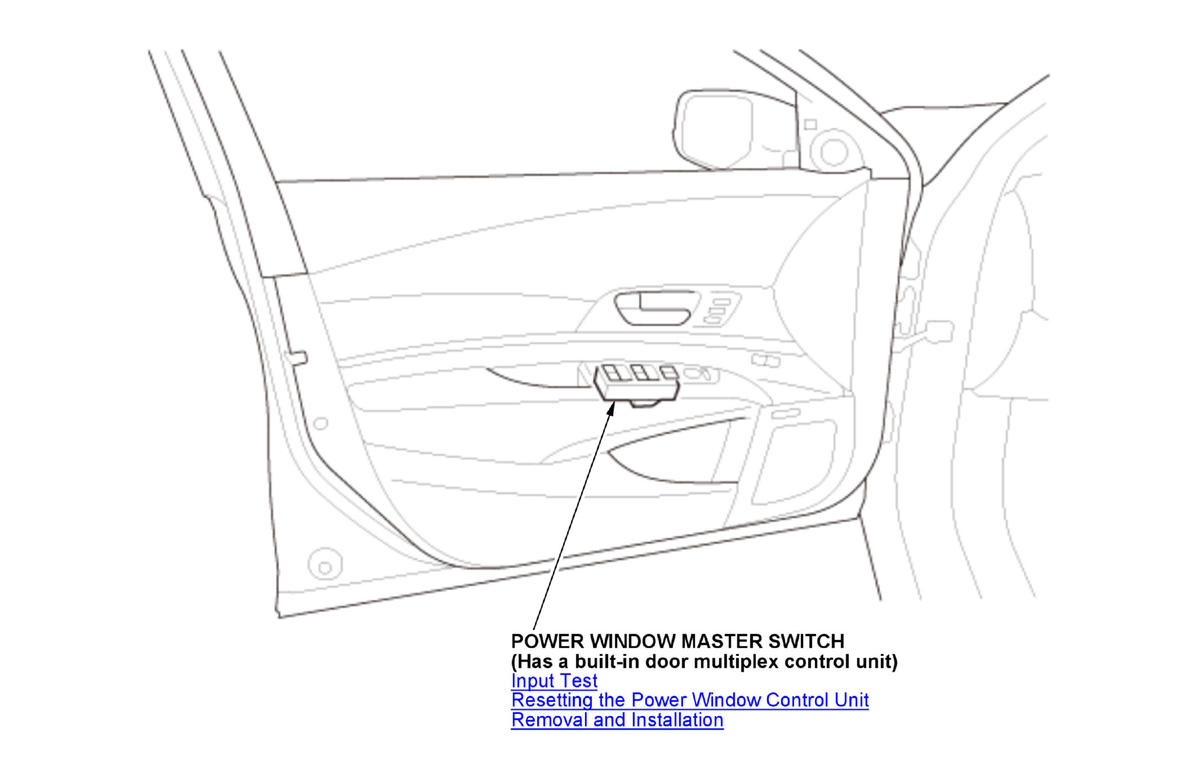

GHH348221Courtesy of HONDA, U.S.A., INC.

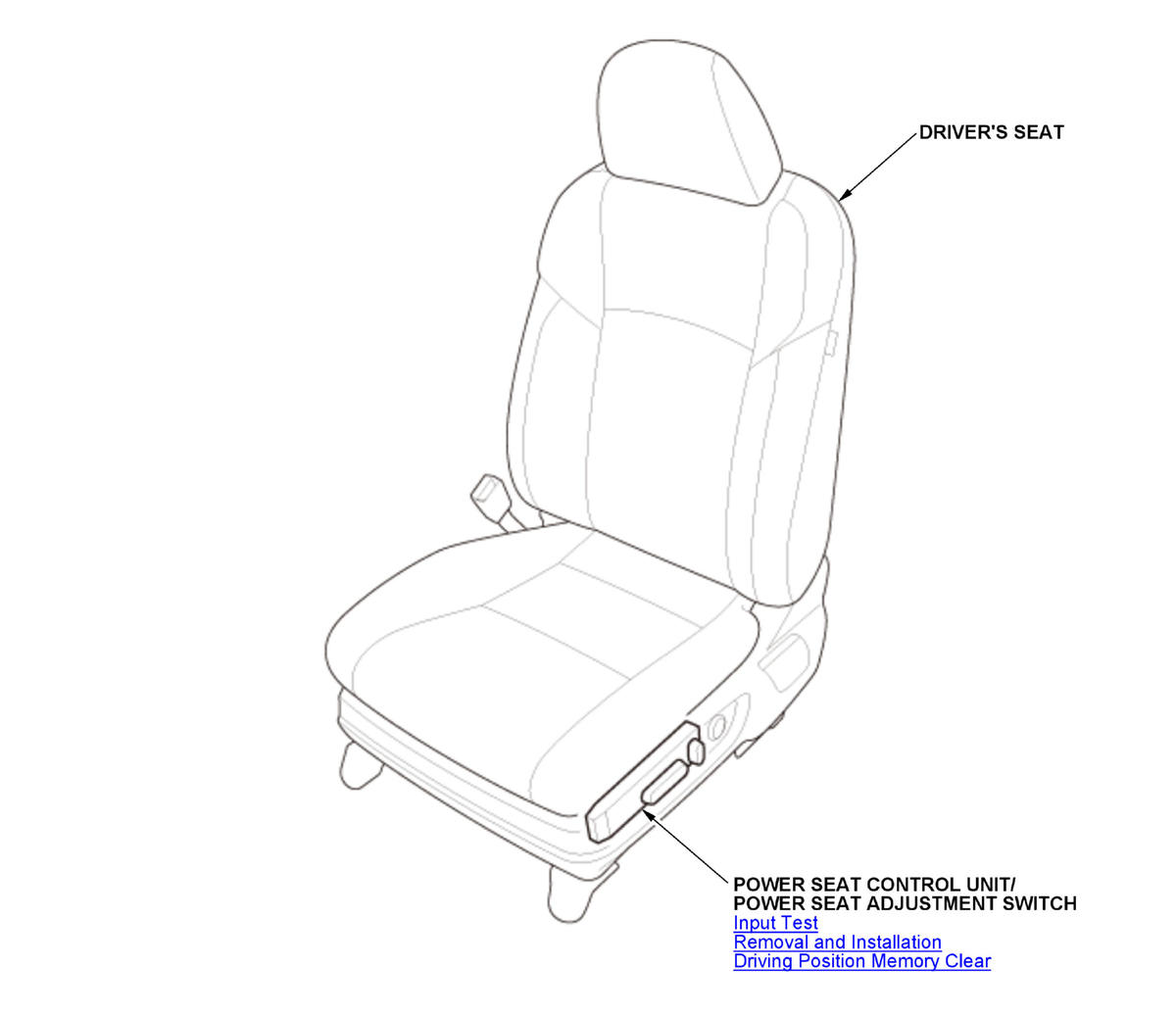

GHH348222Courtesy of HONDA, U.S.A., INC.
