Multi View Camera System (MVCS) Component Location Index

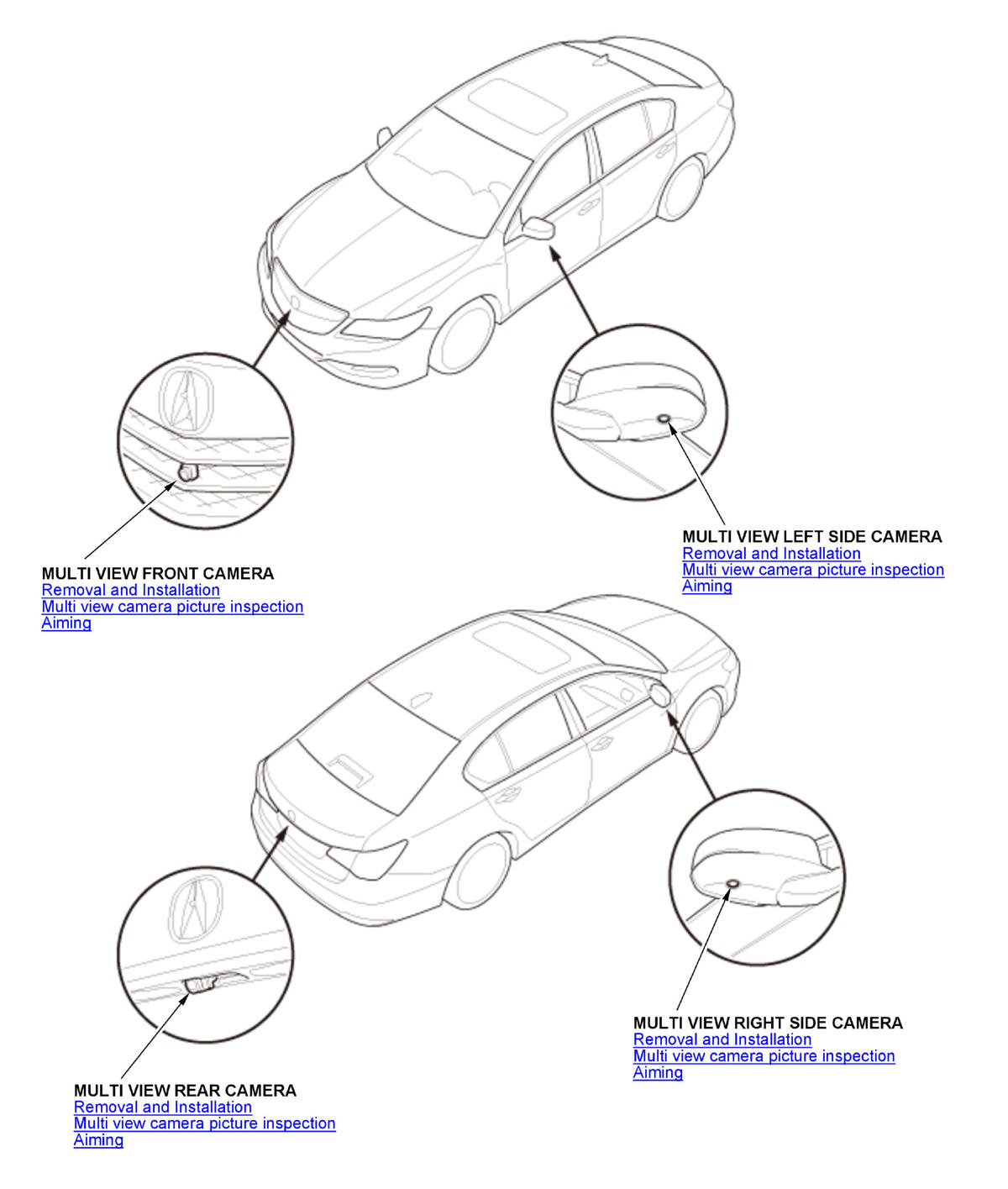

GHH351150Courtesy of HONDA, U.S.A., INC.

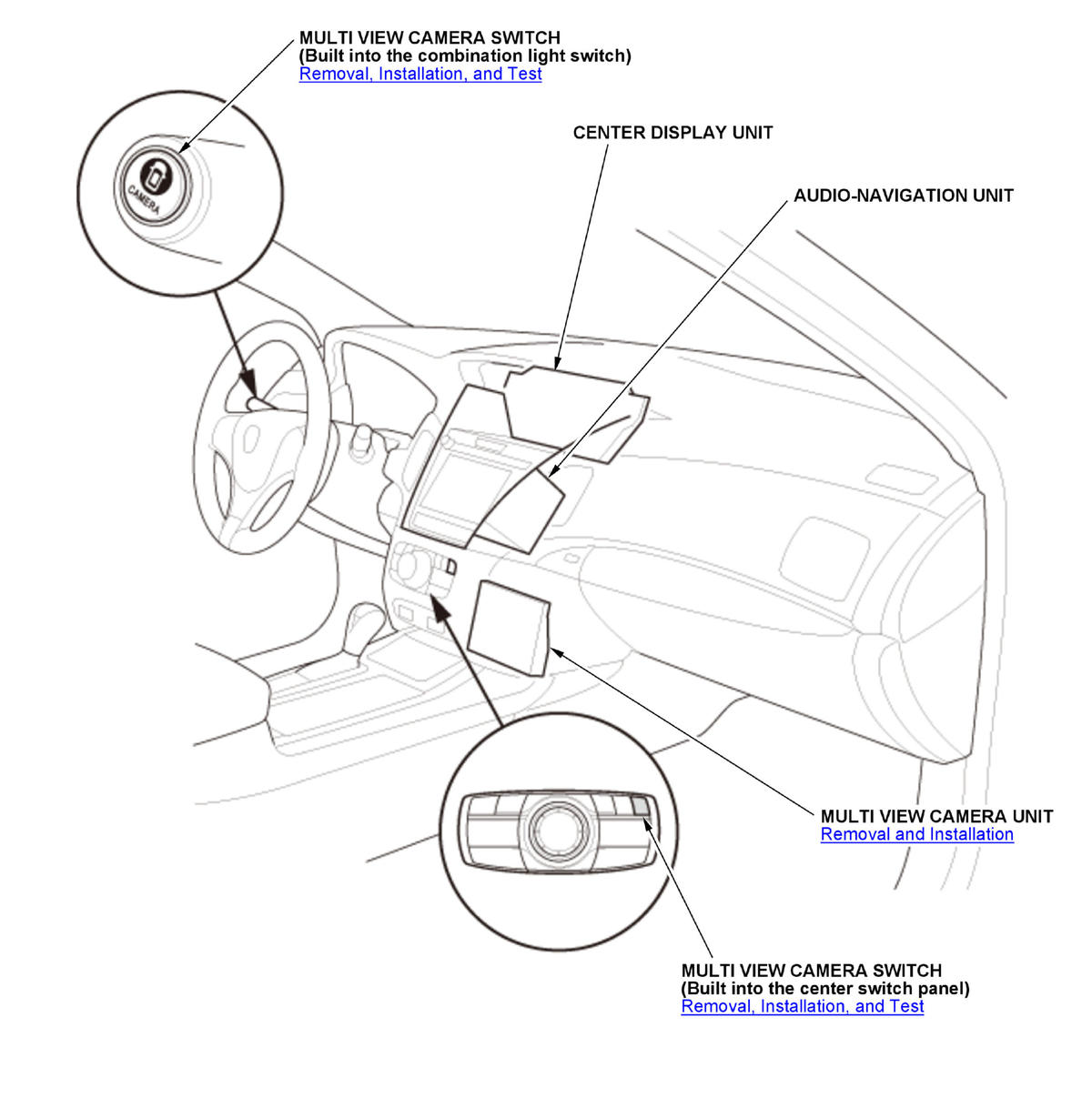

GHH351151Courtesy of HONDA, U.S.A., INC.
