Audio System Component Location Index (With Navigation)

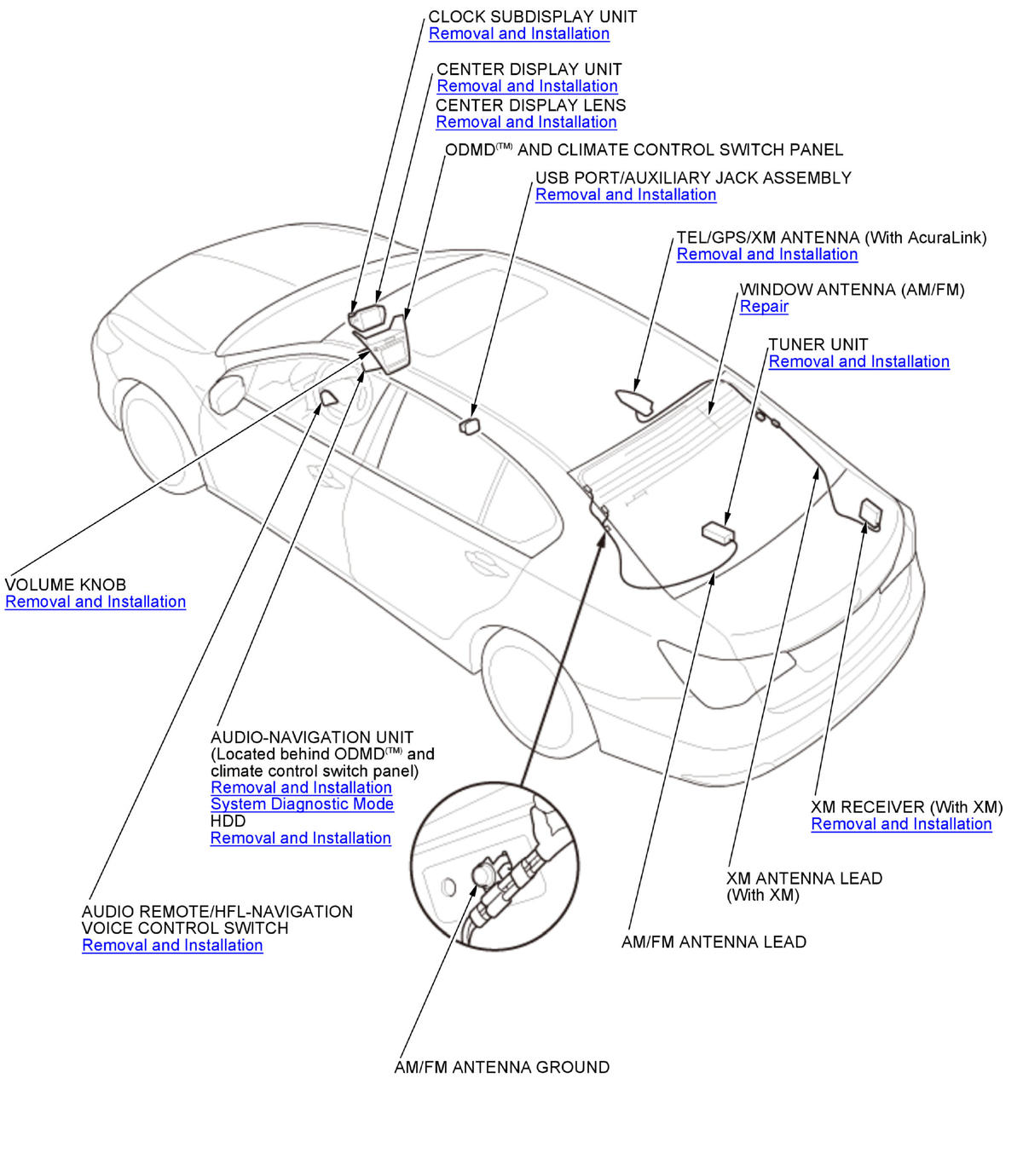

GHH341114Courtesy of HONDA, U.S.A., INC.

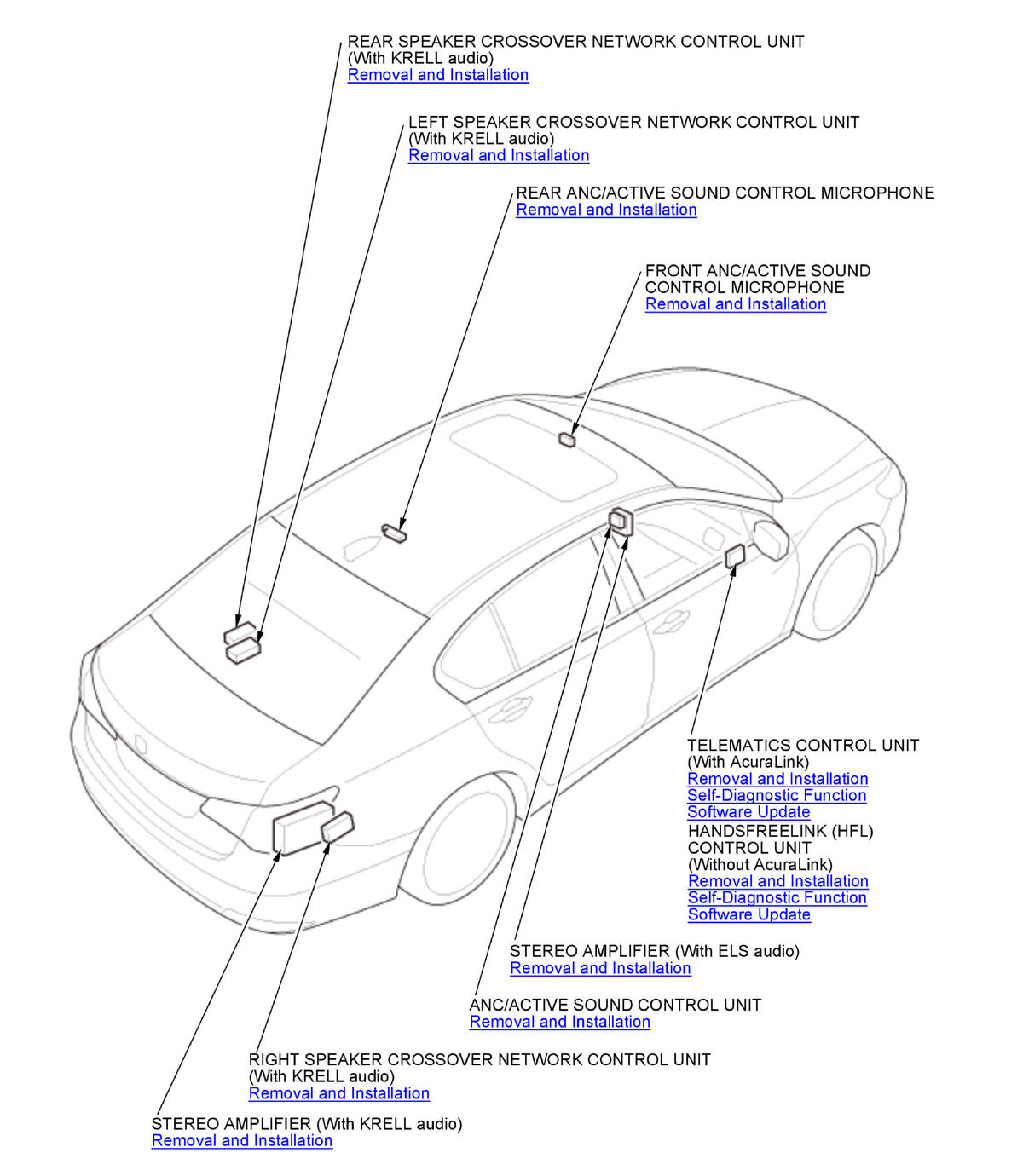

GHH341115Courtesy of HONDA, U.S.A., INC.

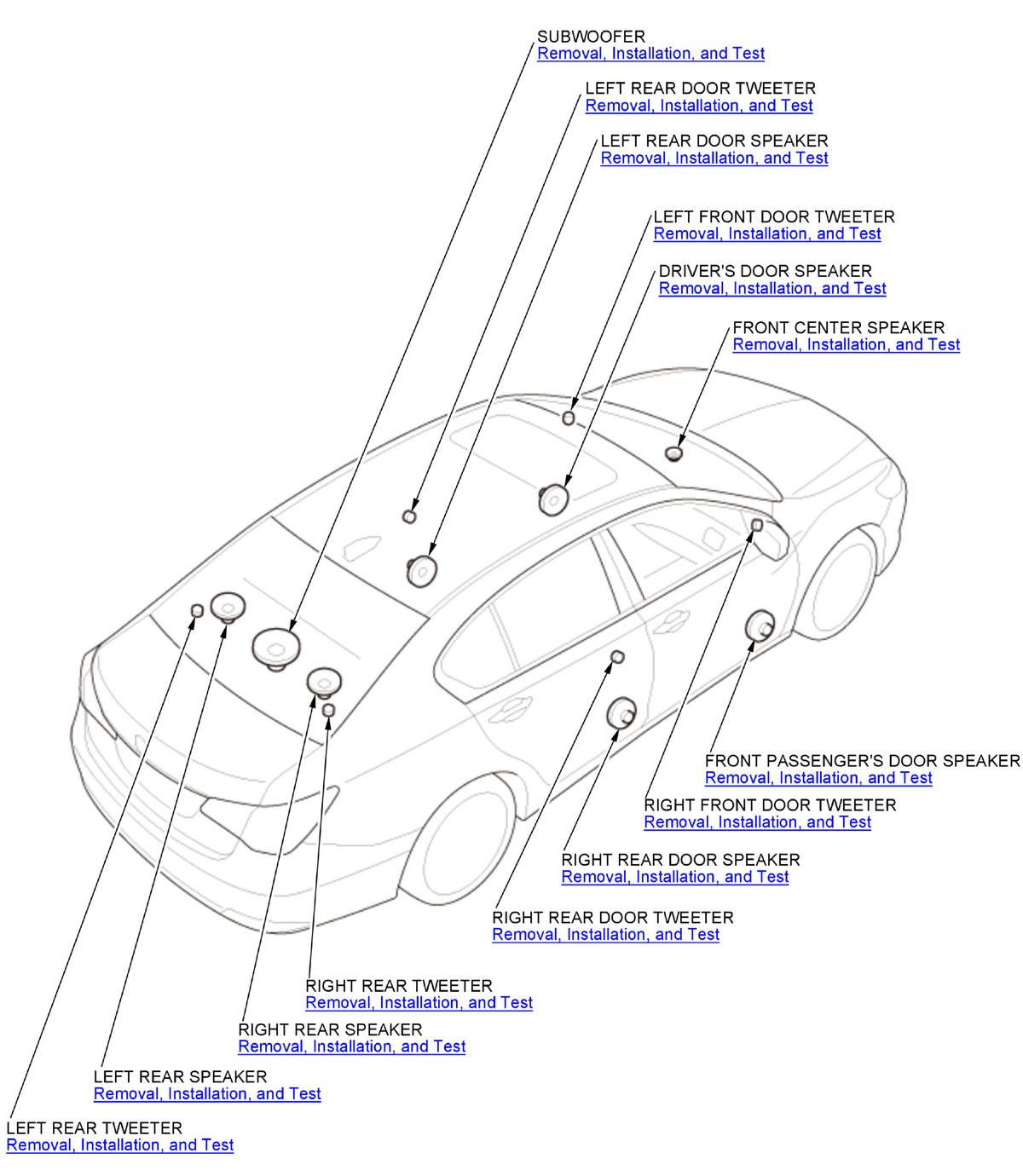

GHH341116Courtesy of HONDA, U.S.A., INC.
