Keyless Access System Component Location Index (KX, 14-15 KA model)

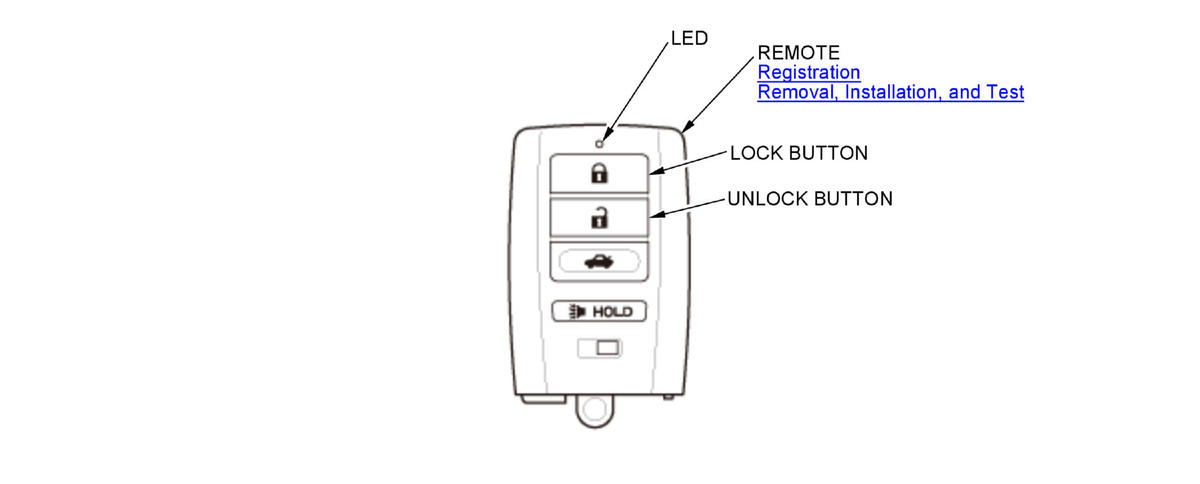

GHH350965

Courtesy of HONDA, U.S.A., INC.

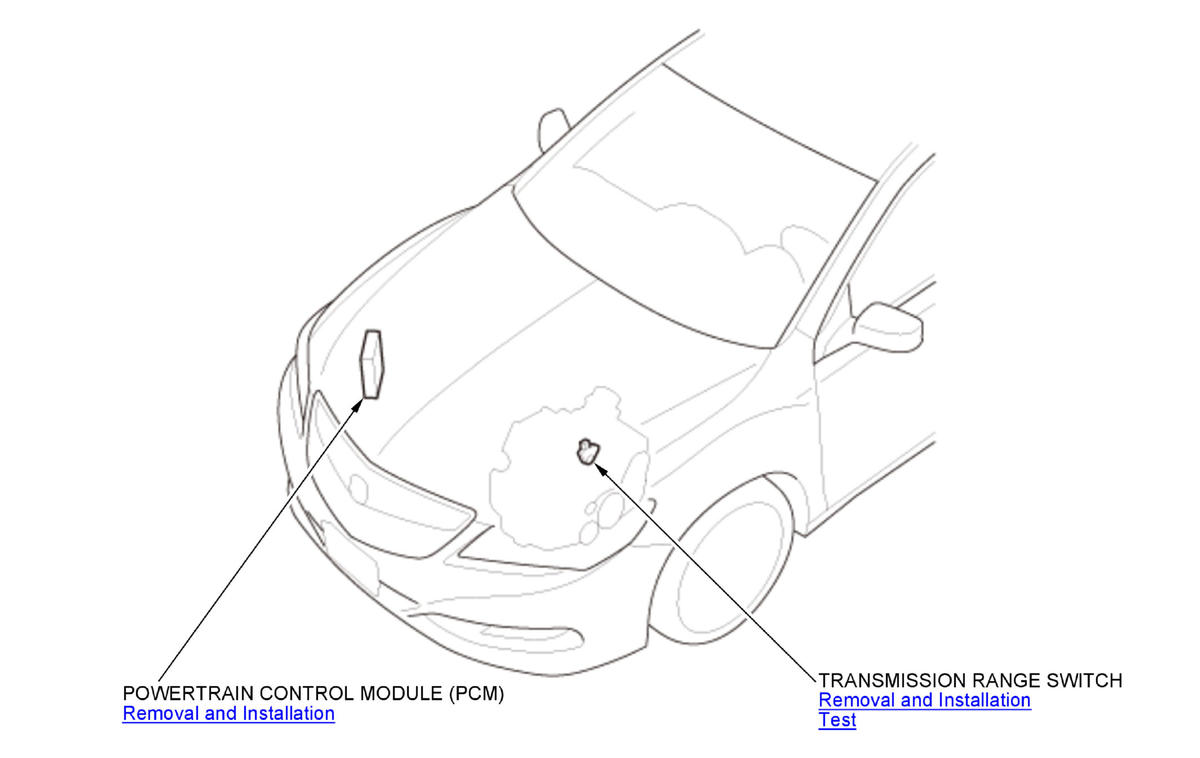

GHH350966

Courtesy of HONDA, U.S.A., INC.

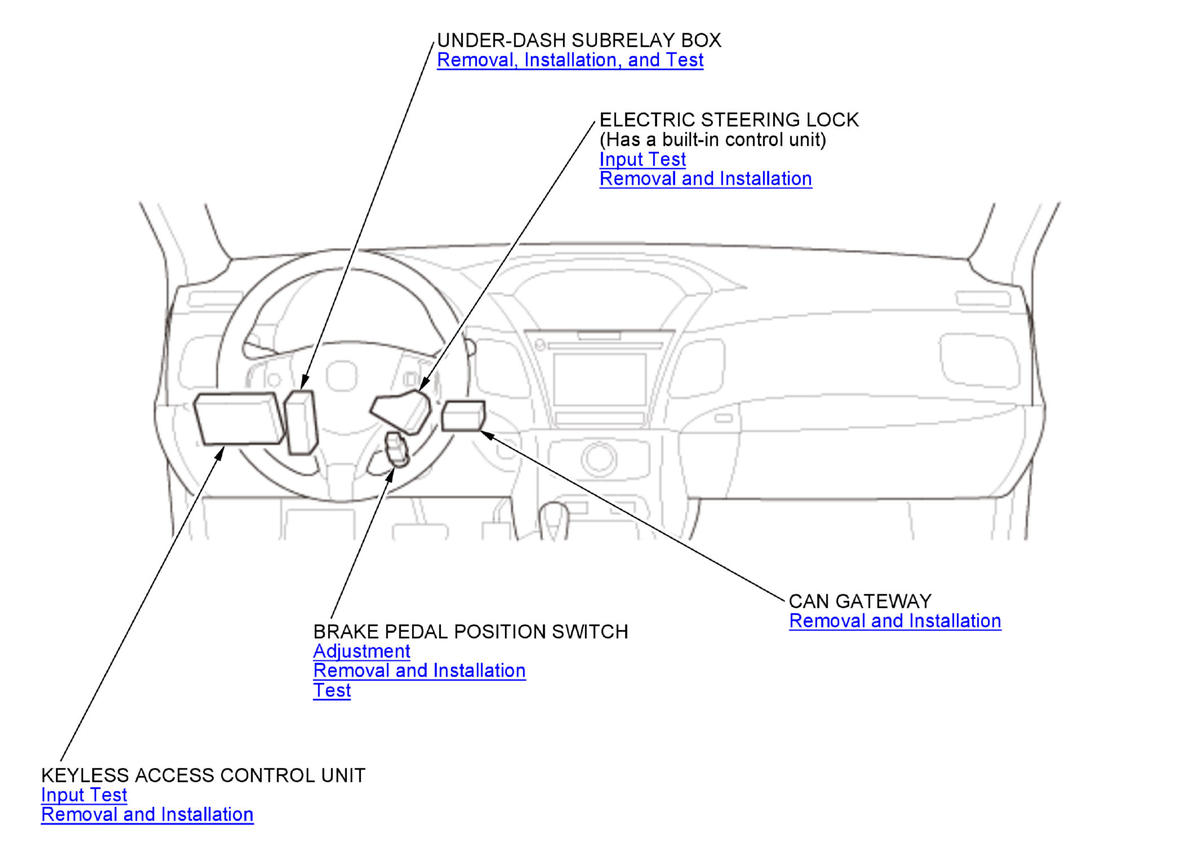

GHH350967

Courtesy of HONDA, U.S.A., INC.

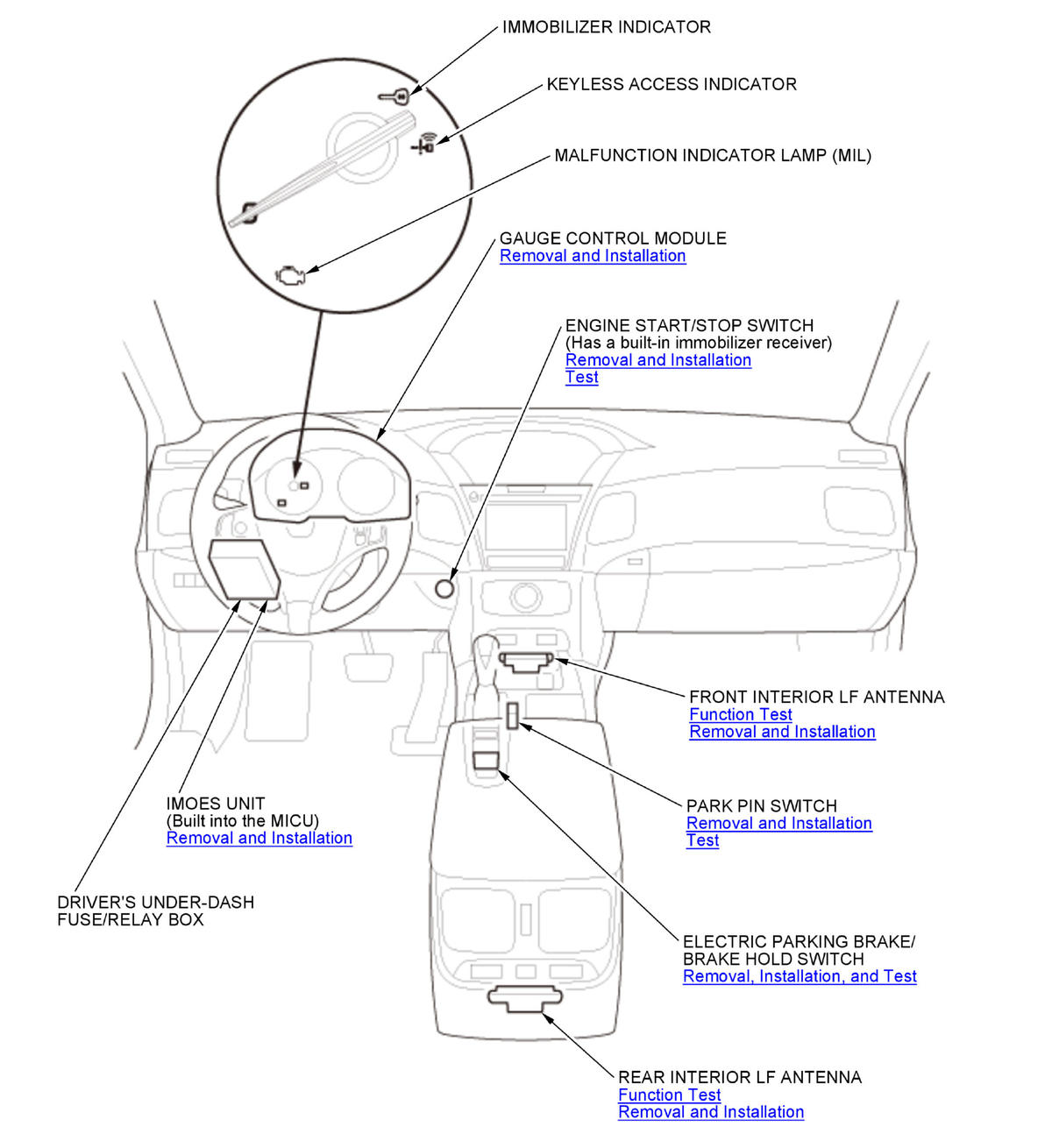

GHH350968

Courtesy of HONDA, U.S.A., INC.

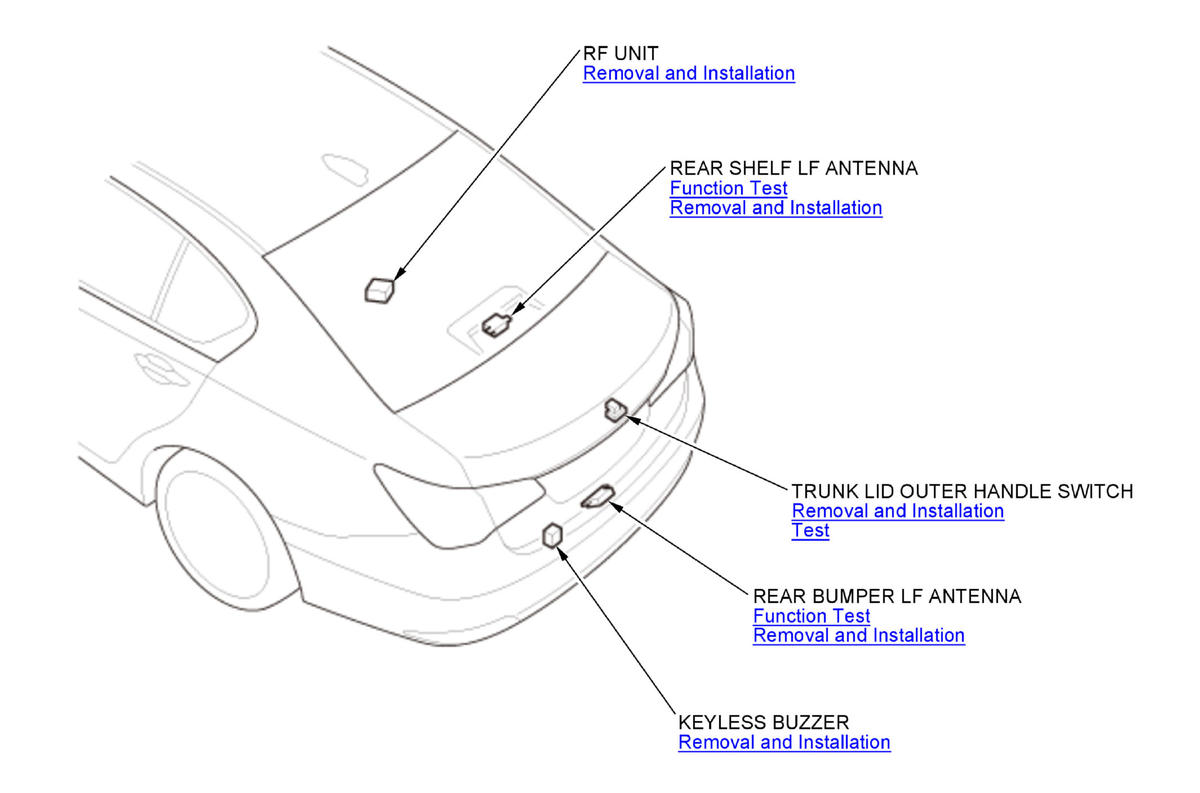

GHH350969

Courtesy of HONDA, U.S.A., INC.

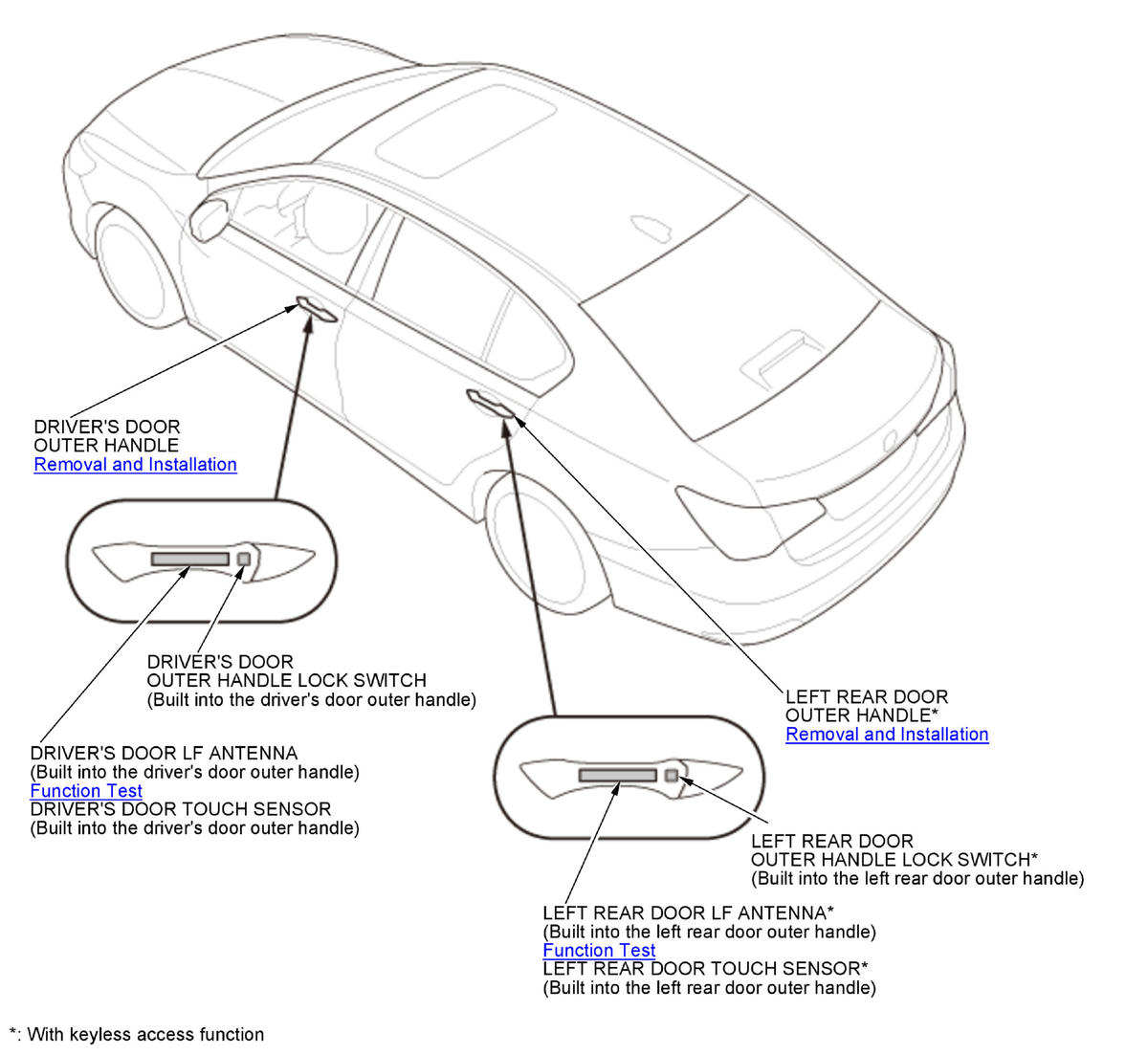

GHH350970

Courtesy of HONDA, U.S.A., INC.

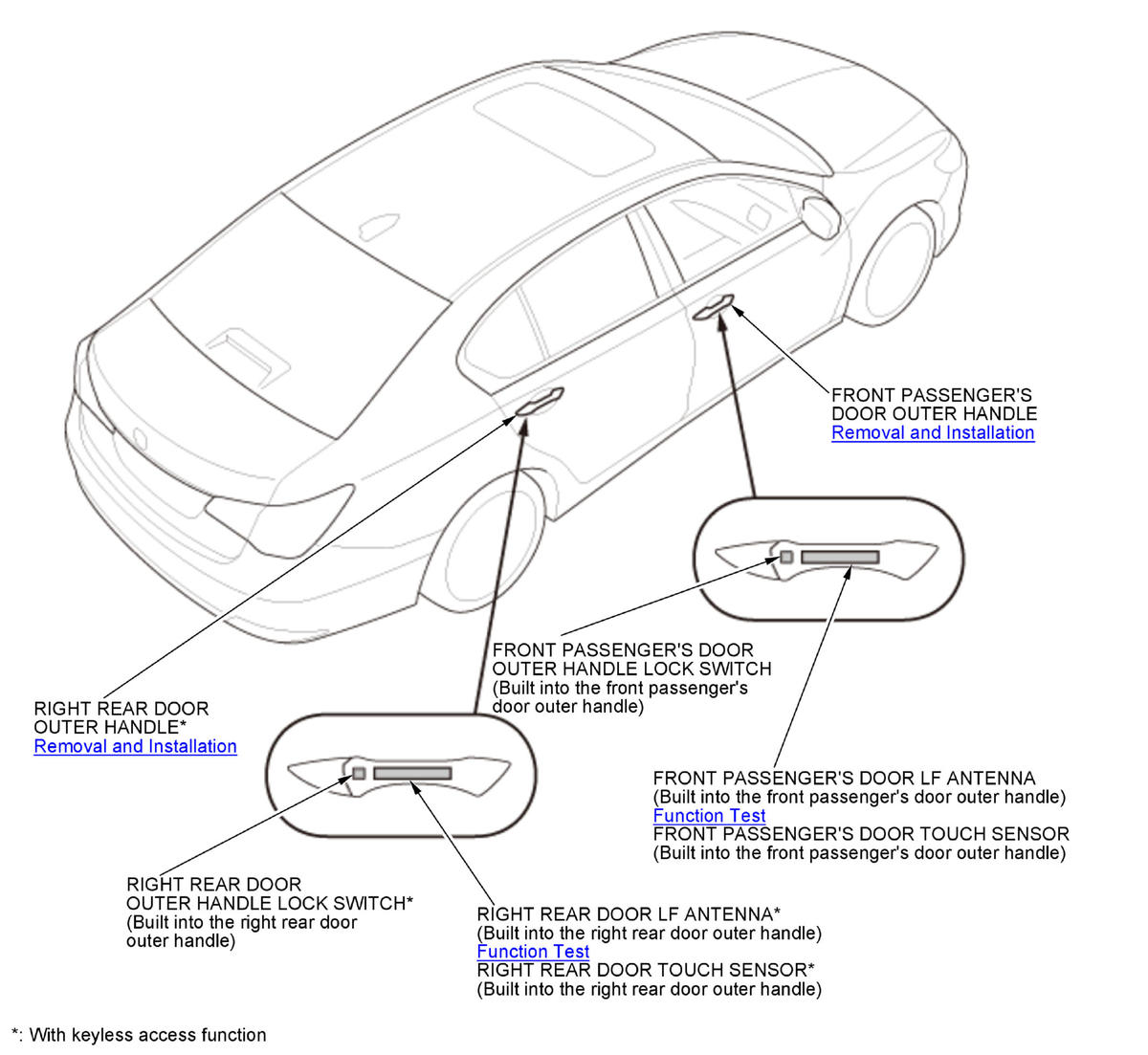

GHH350971

Courtesy of HONDA, U.S.A., INC.
