Keyless/Power Door Locks/Security System Component Location Index (2014 2015)

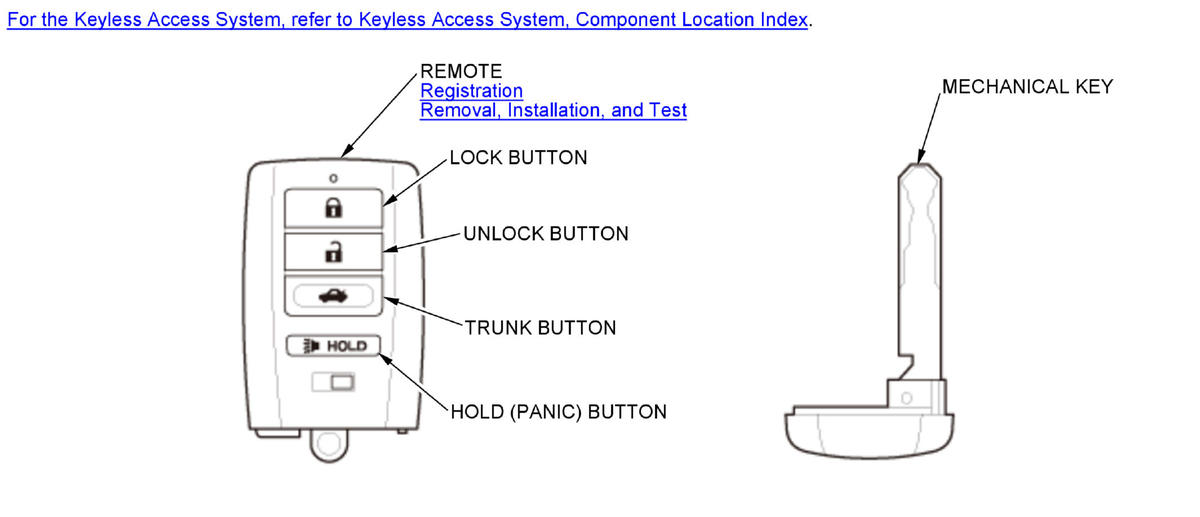

GHH350986

Courtesy of HONDA, U.S.A., INC.

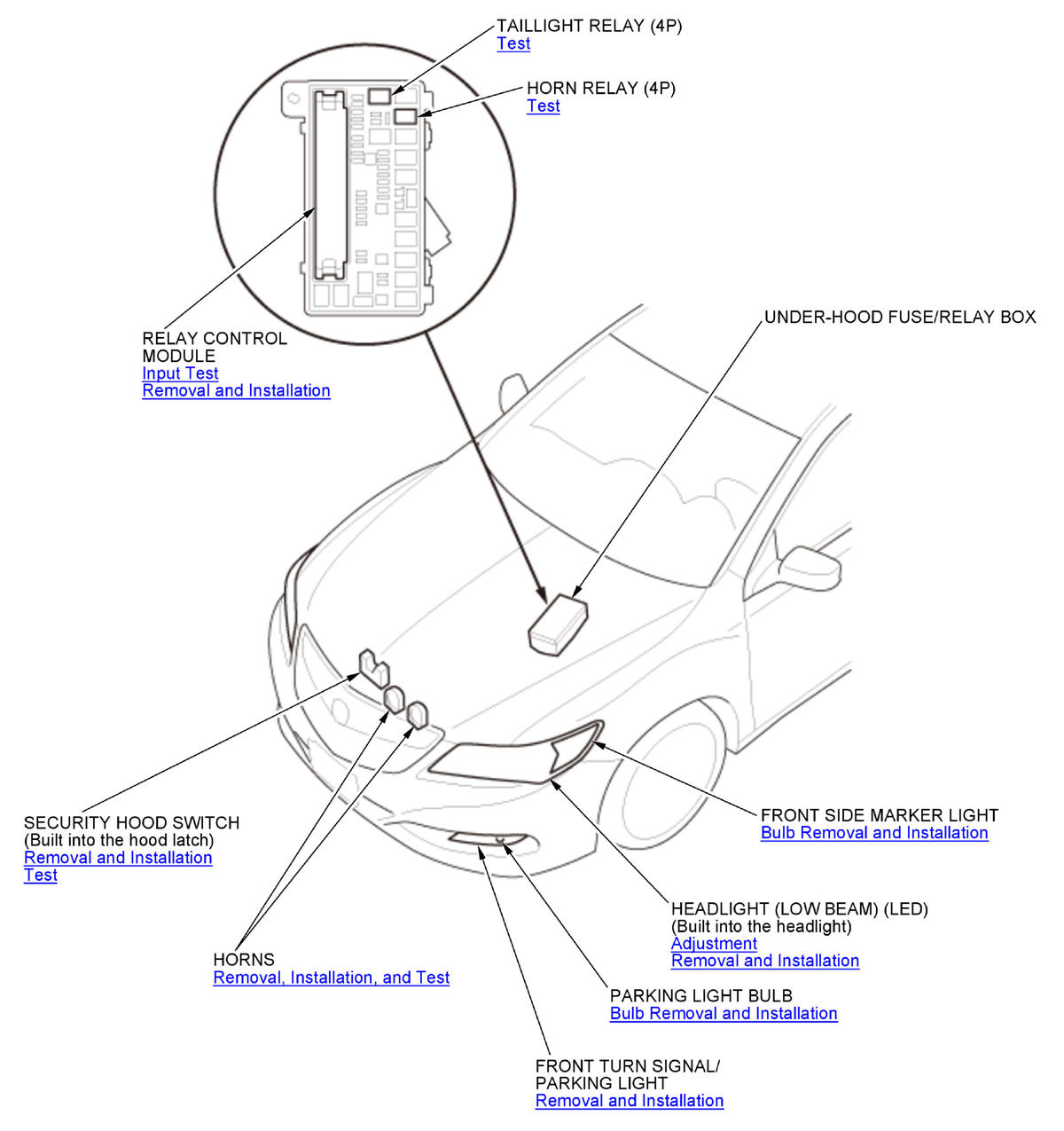

GHH350987

Courtesy of HONDA, U.S.A., INC.

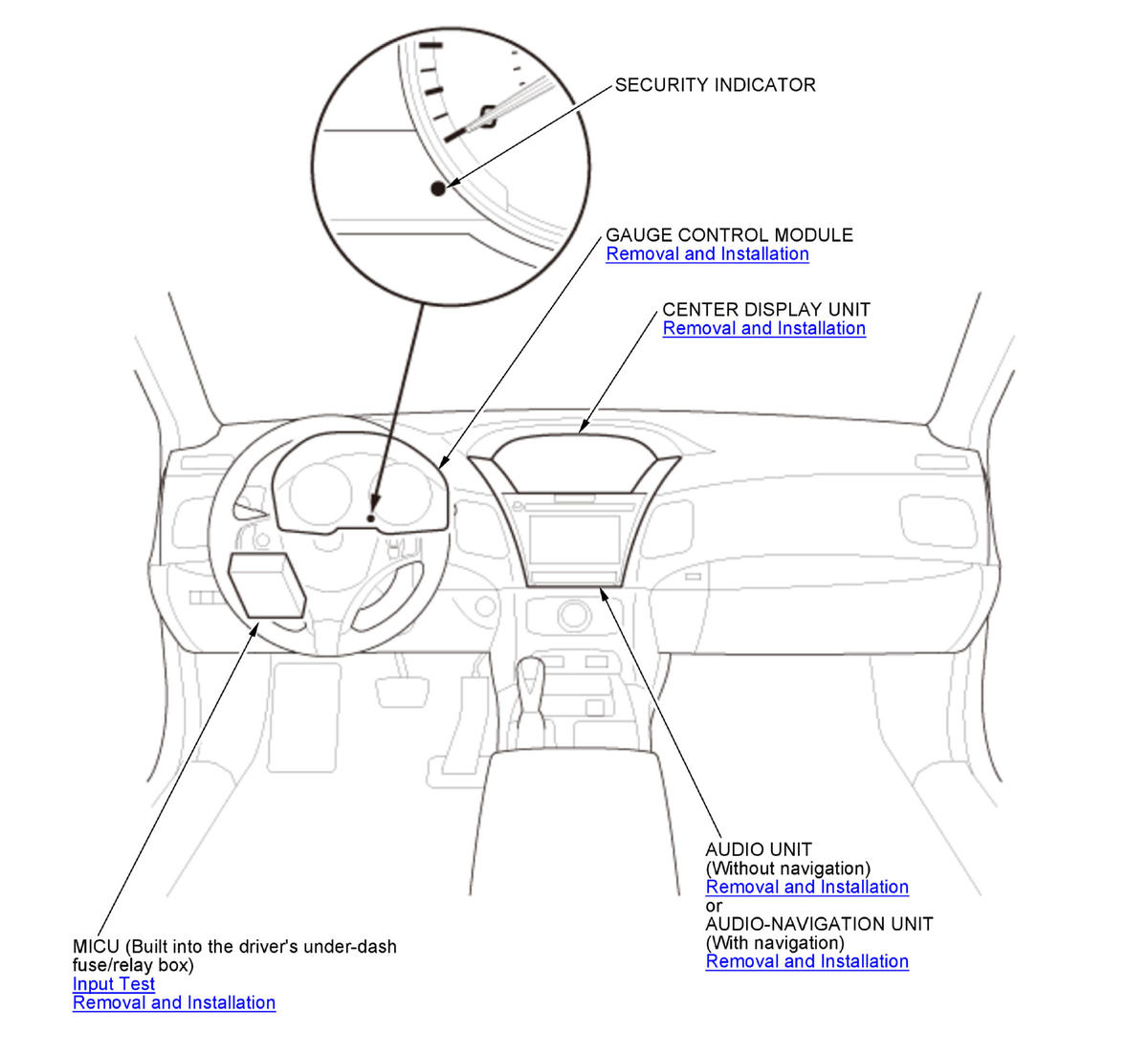

GHH350988

Courtesy of HONDA, U.S.A., INC.

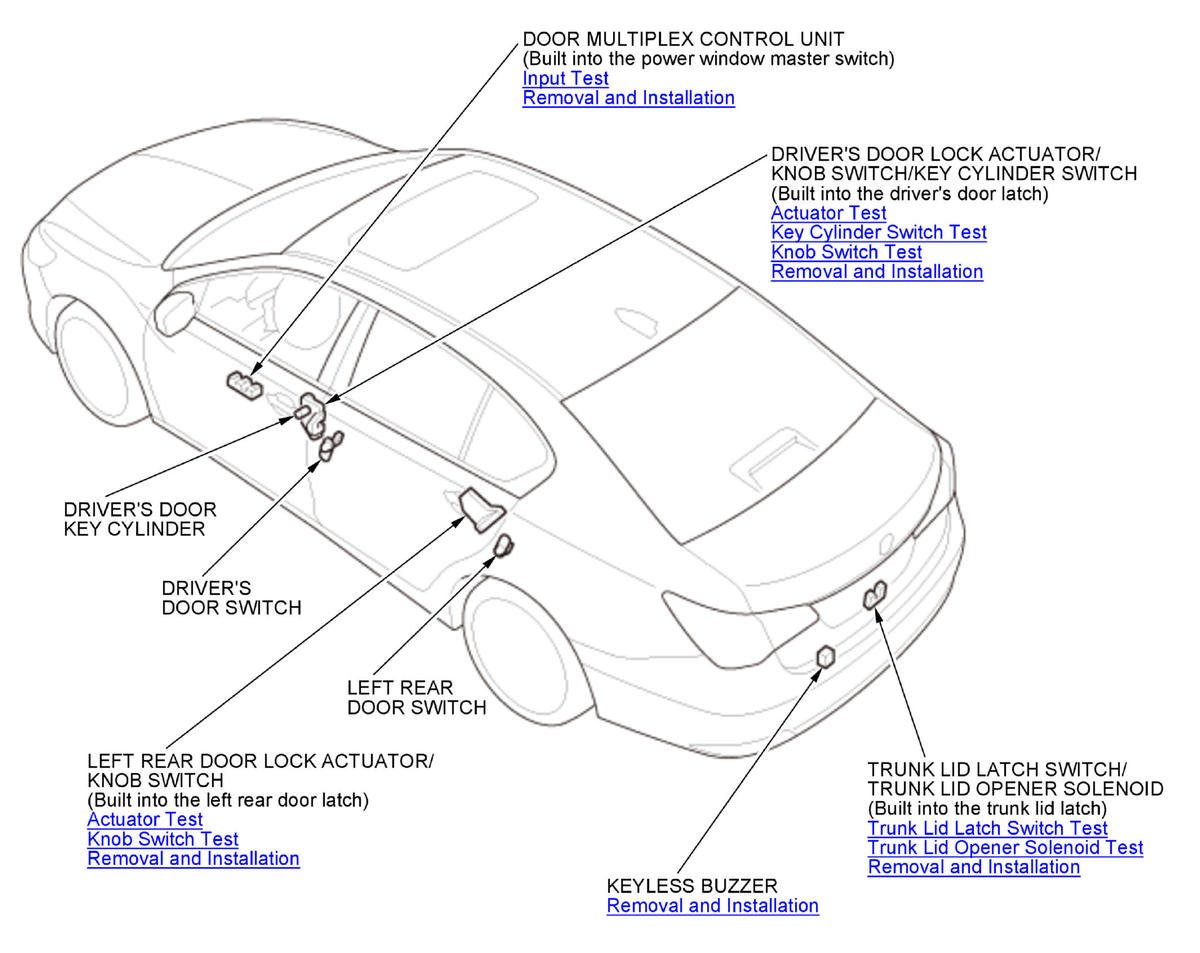

GHH350989

Courtesy of HONDA, U.S.A., INC.

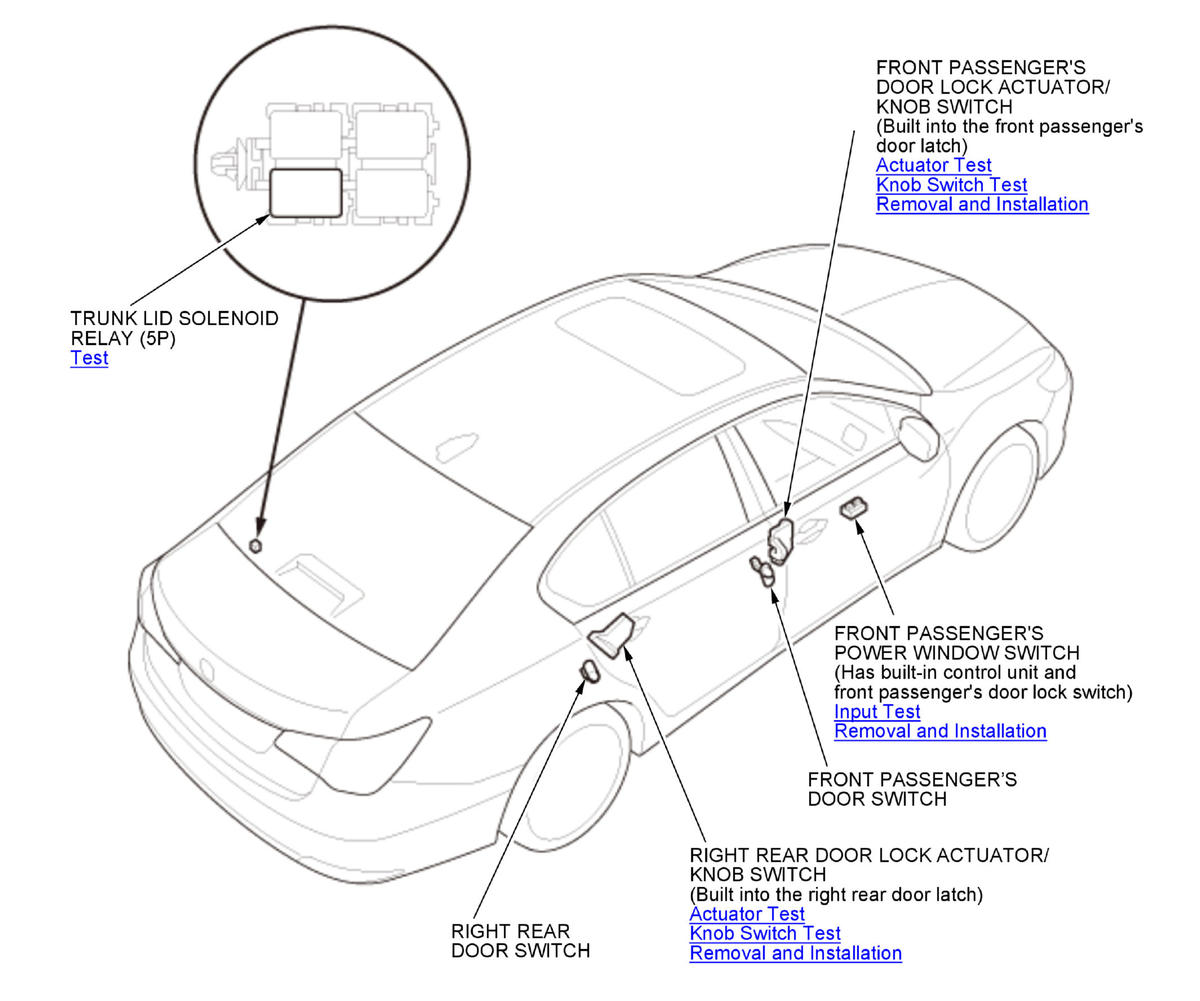

GHH350990

Courtesy of HONDA, U.S.A., INC.

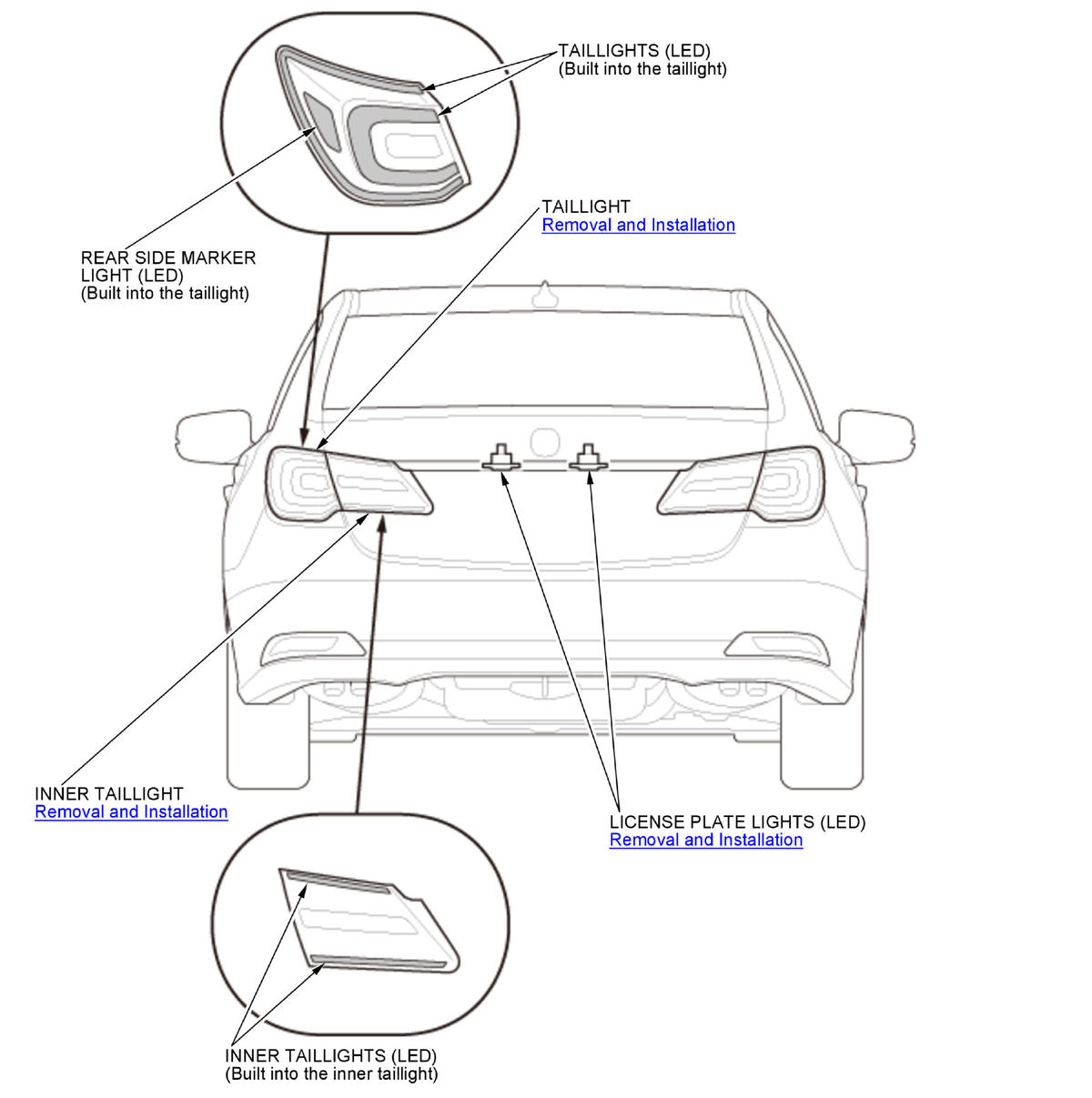

GHH350991

Courtesy of HONDA, U.S.A., INC.
