Under-hood Fuse/Relay Box (Relay Control Module Part)

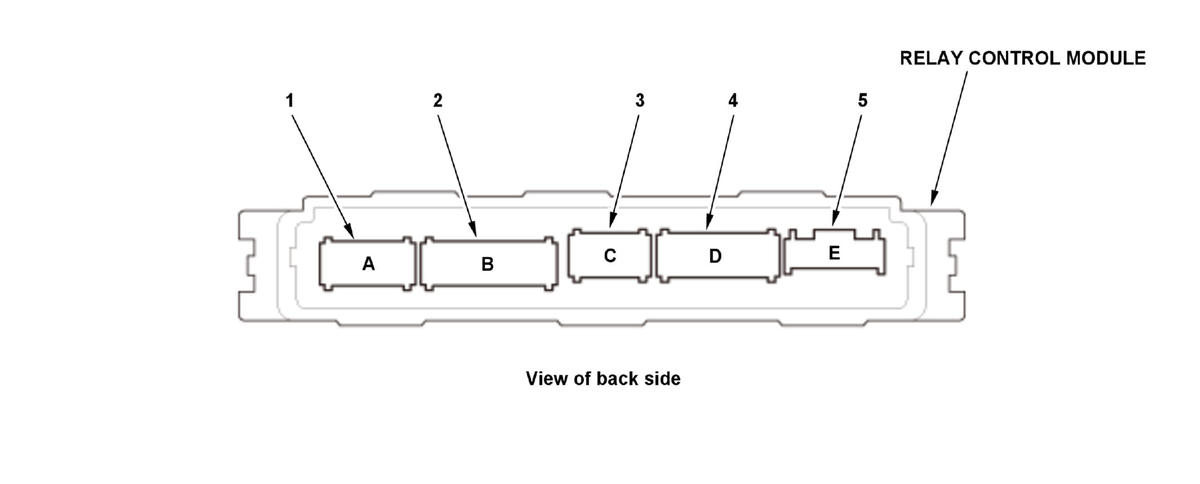

Fig 1: Under-hood Fuse/Relay Box (Relay Control Module Part) Components Location
GHH343557Courtesy of HONDA, U.S.A., INC.
Under-hood Fuse/Relay Box (Relay Control Module Part) Legend

Socket Ref Terminals Connects to Notes
A 1 10 Left engine compartment wire harness
B 2 16 Left engine compartment wire harness
C 3 8 Left engine compartment wire harness
D 4 14 Left engine compartment wire harness
E 5 --- Not used
