EPS Control Unit Connector for Inputs and Outputs

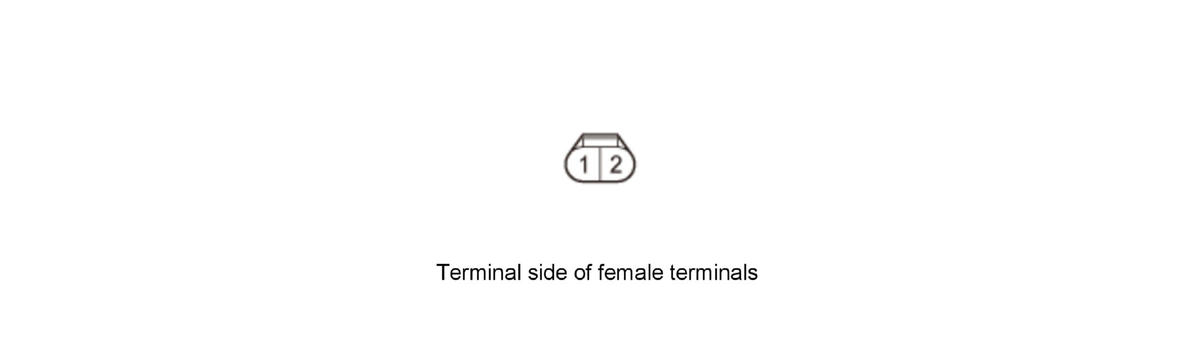

EPS Control Unit Inputs and Outputs for Connector A (2P) (Connector Disconnected)
| Terminal Number | Wire color | Terminal sign | Description | Signal |
|---|---|---|---|---|
| 1 | BLK | GND | Ground for the EPS control unit | Continuity to ground |
| 2 | RED | +B EPS | Power source for the actuator EPS motor | Battery voltage (about 12 V) at all times |
EPS Control Unit Inputs and Outputs for Connector B (6P) (Connector Disconnected)
| Terminal Number | Wire color | Terminal sign | Description | Signal |
|---|---|---|---|---|
| 1 | Not used | Not used | --- | --- |
| 2 | PUR | F-CAN C_L | F-CAN communication circuit | With vehicle in ON mode: pulses |
| 3 | Not used | Not used | --- | --- |
| 4 | Not used | Not used | --- | --- |
| 5 | YEL | F-CAN C_H | F-CAN communication circuit | With vehicle in ON mode: pulses |
| 6 | BLU | IG OP1 | Power source for activating the system | With vehicle in ON mode: battery voltage (about 12 V) |
