Telematics Control Unit Connector For Inputs And Outputs (Without Auto Idle Stop System) (2015-17)
| Connector Index |
| Telematics Control Unit Connector A (36P) |
| Telematics Control Unit Connector B (5P) |
| Telematics Control Unit Connector C (4P) |

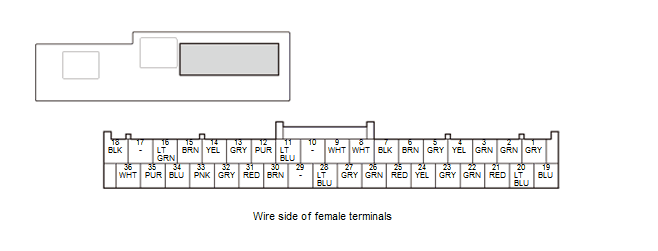

TELEMATICS CONTROL UNIT CONNECTOR A (36P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
TCU LED GRN |
Outputs drive signal for AcuraLink system status indicator LED (green) |
| A2 |
TCU SW+ |
Detects signal from AcuraLink buttons |
| A3 |
MIC GND |
Ground for HFL microphone signal |
| A4 |
MIC SIG L |
Inputs HFL microphone signal |
| A5 |
MIC SH |
Shield for terminals No. 3 and No. 4 |
| A6 |
TELE SIG+ |
Outputs HFL prompts and telephone sound signal |
| A7 |
GA AUDIO L+ |
Outputs sound signal |
| A8 |
GA AUDIO R+ |
Outputs sound signal |
| A9 |
MIC PWR |
Power source for HFL microphone |
| A10 |
Not used |
- - - |
| A11 |
HFT SIRI SIG |
Not used |
| A12 |
HFT SIRI GND |
Not used |
| A13 |
HFT SIRI SH |
Shield for terminals No. 11 and No. 12 |
| A14 |
GA BUS- |
GA-Net bus communication signal |
| A15 |
GA BUS+ |
GA-Net bus communication signal |
| A16 |
HFT MUTE |
HFL mute signal |
| A17 |
Not used |
- - - |
| A18 |
GND |
Ground for telematics control unit (G303) |
| A19 |
TCU LED RED |
Outputs drive signal for AcuraLink system status indicator LED (red) |
| A20 |
TCU SW- |
AcuraLink buttons ground |
| A21 |
NAVI HFT MIC- |
Outputs Voice Recognition (VR) prompts to audio-navigation unit |
| A22 |
NAVI HFT MIC+ |
Outputs Voice Recognition (VR) prompts to audio-navigation unit |
| A23 |
TELE SIG SH |
Shield for terminals No. 6 and No. 24 |
| A24 |
TELE SIG- |
Outputs HFL prompts and telephone sound signal |
| A25 |
GA AUDIO L- |
Outputs sound signal |
| A26 |
GA AUDIO R- |
Outputs sound signal |
| A27 |
SH GA AUDIO |
Shield for terminals No. 7, No. 8, No. 25, and No. 26 |
| A28 |
GA SYS ON |
Inputs signal for telematics control unit switching on/off |
| A29 |
Not used |
- - - |
| A30 |
IG1 METER |
Power source for IG1 |
| A31 |
CDS |
Inputs collision detection signal |
| A32 |
SH GA BUS |
Shield for terminals No. 14 and No. 15 |
| A33 |
B-CAN_H |
Communication signal |
| A34 |
B-CAN_L |
Communication signal |
| A35 |
ACC |
Power source for accessories |
| A36 |
+B BACK UP |
Continuous power source |

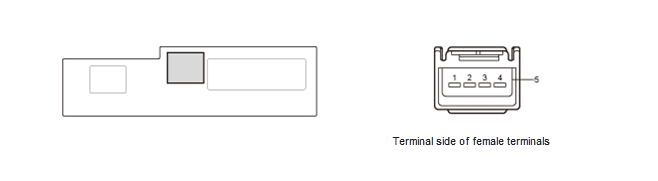

TELEMATICS CONTROL UNIT CONNECTOR B (5P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| B1 |
HFT USB GND |
Ground for communication signal |
| B2 |
HFT USB DATA+ |
Communication signal |
| B3 |
HFT USB DATA- |
Communication signal |
| B4 |
HFT USB VBUS |
Outputs power source for USB |
| B5 |
HFT USB SH |
Shield for terminals No. 1, No. 2, No. 3, and No. 4 |

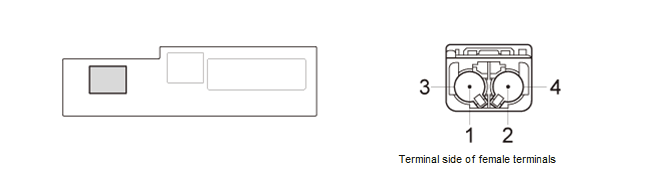

TELEMATICS CONTROL UNIT CONNECTOR C (4P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| C1 |
TEL |
Inputs TEL signal |
| C2 |
GPS ANT |
Inputs GPS signal |
| C3 |
SH (TEL) |
Shield for terminal No. 1 |
| C4 |
GPS SH |
Shield for terminal No. 2 |
